SENTRON PAC4200 - Display of the measured variables

Operator control
8.1 Device interface
SENTRON PAC4200
120 System Manual, 09/2009, A5E02316180B-02
8.1.2 Display of the measured variables



 E
 F
 D
 E
 D
 E  F
 G
 D

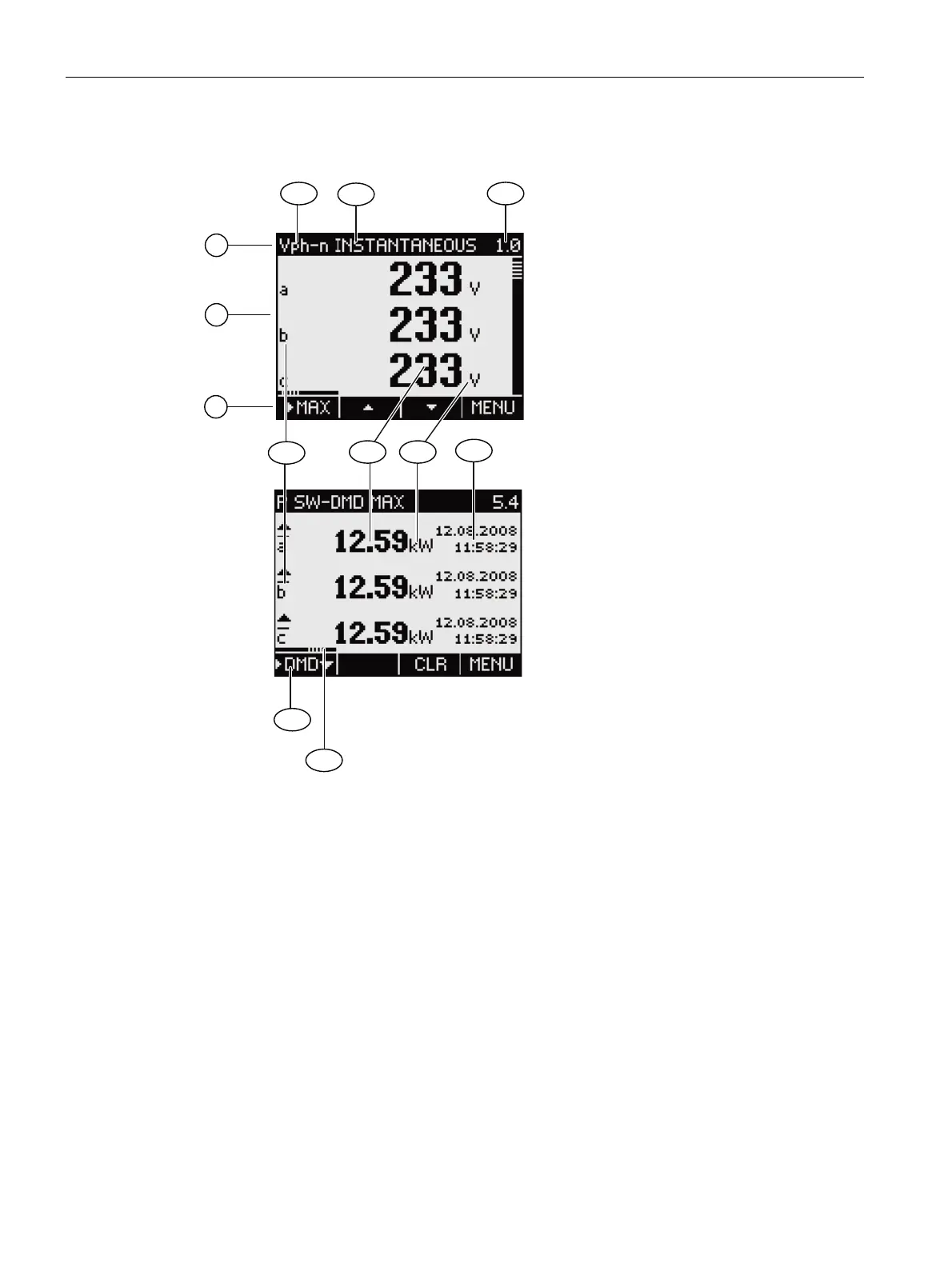

Figure 8-8 Displaying measured variables
(1) Display title
a) Designation of the measured variable
b) Designation of the measured value property
c) Display number of the measured variable
(2) Measured value display
a) Phase labels
b) Measured value
c) Unit of the measured variable
d) Time stamp
(3) Display footer
a) Key labeling
b) Scroll bar of function key F1
