9.2.7 Integrated I/Os
Device settings for using the digital inputs and outputs.
Call: "SETTINGS > INTEGRATED I/O".
State I/O
The digital input or digital output is OFF/INACTIVE/LOW.
The digital input or digital output is ON/ACTIVE/HIGH.
The digital input or digital output is configured as a pulse input or a pulse output.
S Sync

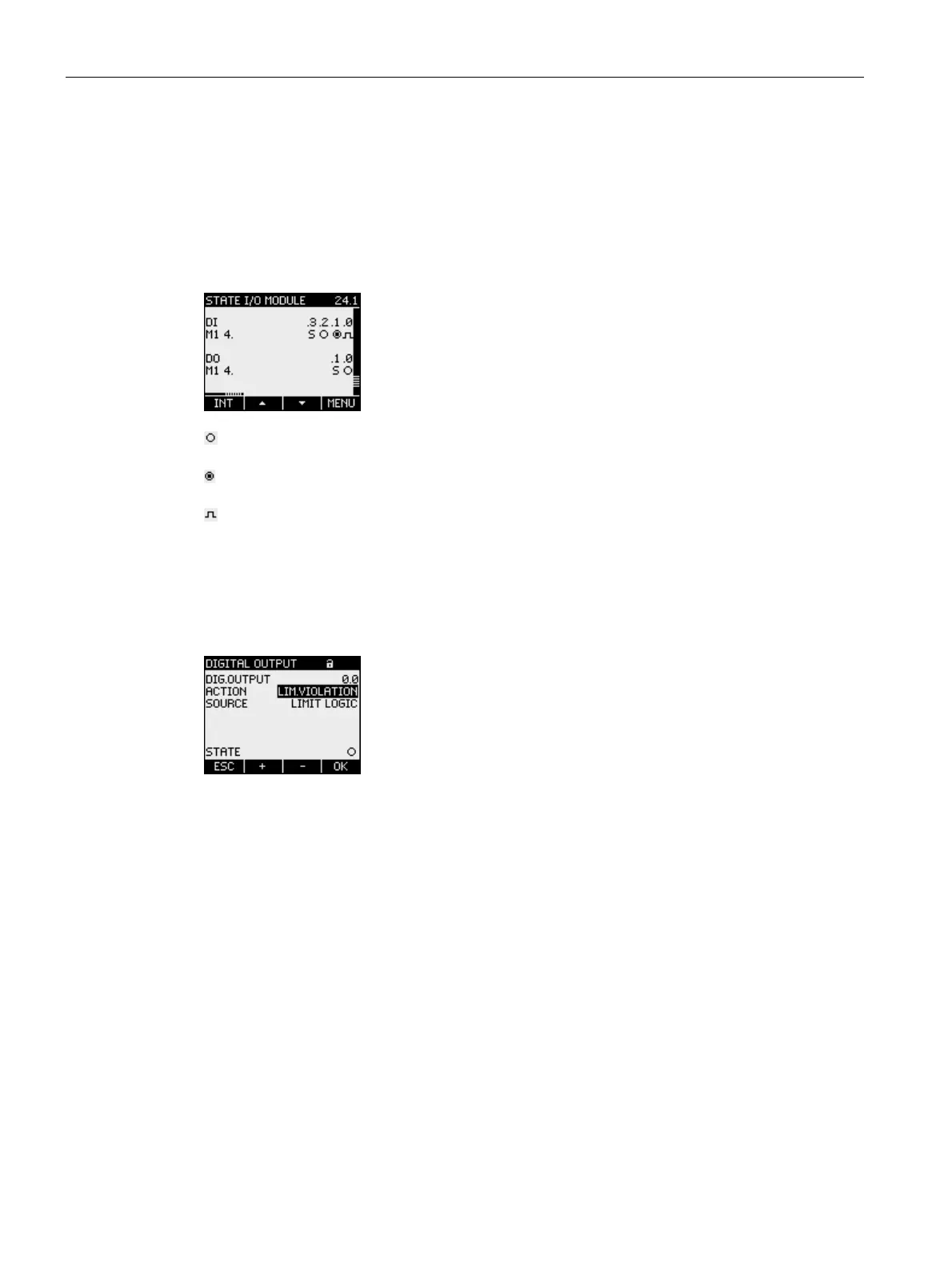

Figure 9-7 State I/O module
DIGITAL OUTPUT
Figure 9-8 "DIGITAL OUTPUT" device settings
DIG.OUTPUT Digital output
ACTION Method of using the digital output:
Range:
OFF The digital output is switched off.
DEVICE ON The digital output signals that the device is
switched on.
REMOTE OUTPUT The digital output is controlled by remote
access.
ROTATION The digital output is activated by a
clockwise electrical field and remains active
as long as the field's direction of rotation
remains unchanged.
SYNC Synchronization of other devices.
