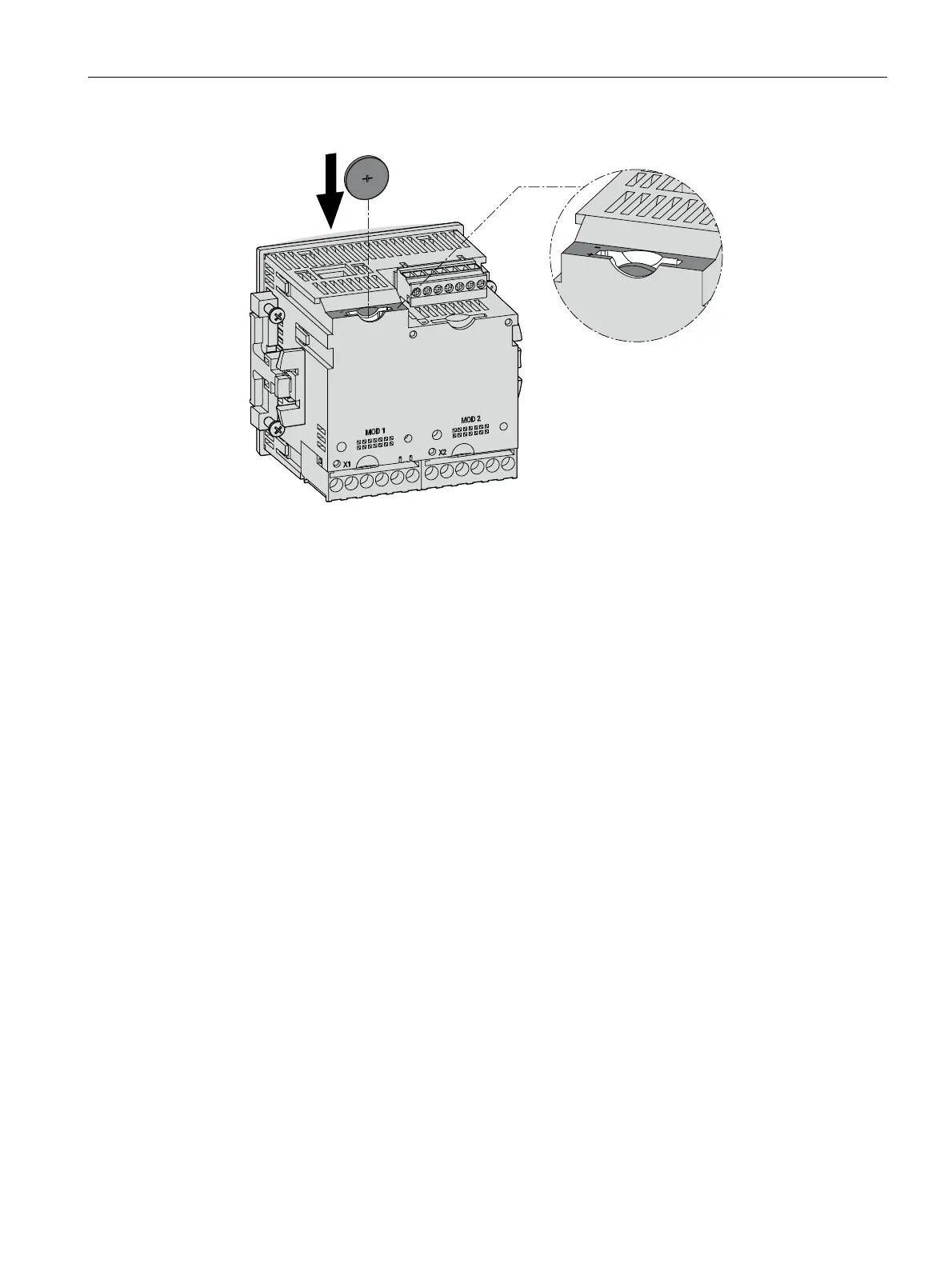

Figure 5-1 Using the battery
See also
Technical data (Page 175)
Electrostatic sensitive devices (ESD) (Page 273)
5.3 Tools
You require the following tools for installation:
● Cutting tool for the panel cutout
● Screwdriver PH2 cal. ISO 6789
Tools for installing the expansion modules
● Cross-tip screwdriver PZ1, ∅ 2.9 mm, 0.5 Nm cal. ISO 6789, also for assembling cables
on the terminal block of the PAC RS485 expansion module
● Crimping tool in accordance with EN 60947-1 for assembling cables with core end
sleeves on the terminal blocks
● Slotted screwdriver SZS 0.4x2.5 cal. ISO 6789 for assembling cables on the terminal
block of the SENTRON PAC 4DI/2DO expansion module
Additional installation tools
● Cable clamp for strain relief on all communication cables if used on the device.
