Description
3.16 Events
SENTRON PAC4200
System Manual, 09/2009, A5E02316180B-02
55
Digital display
The instantaneous value, the designation, and the unit are shown for each measured
variable.

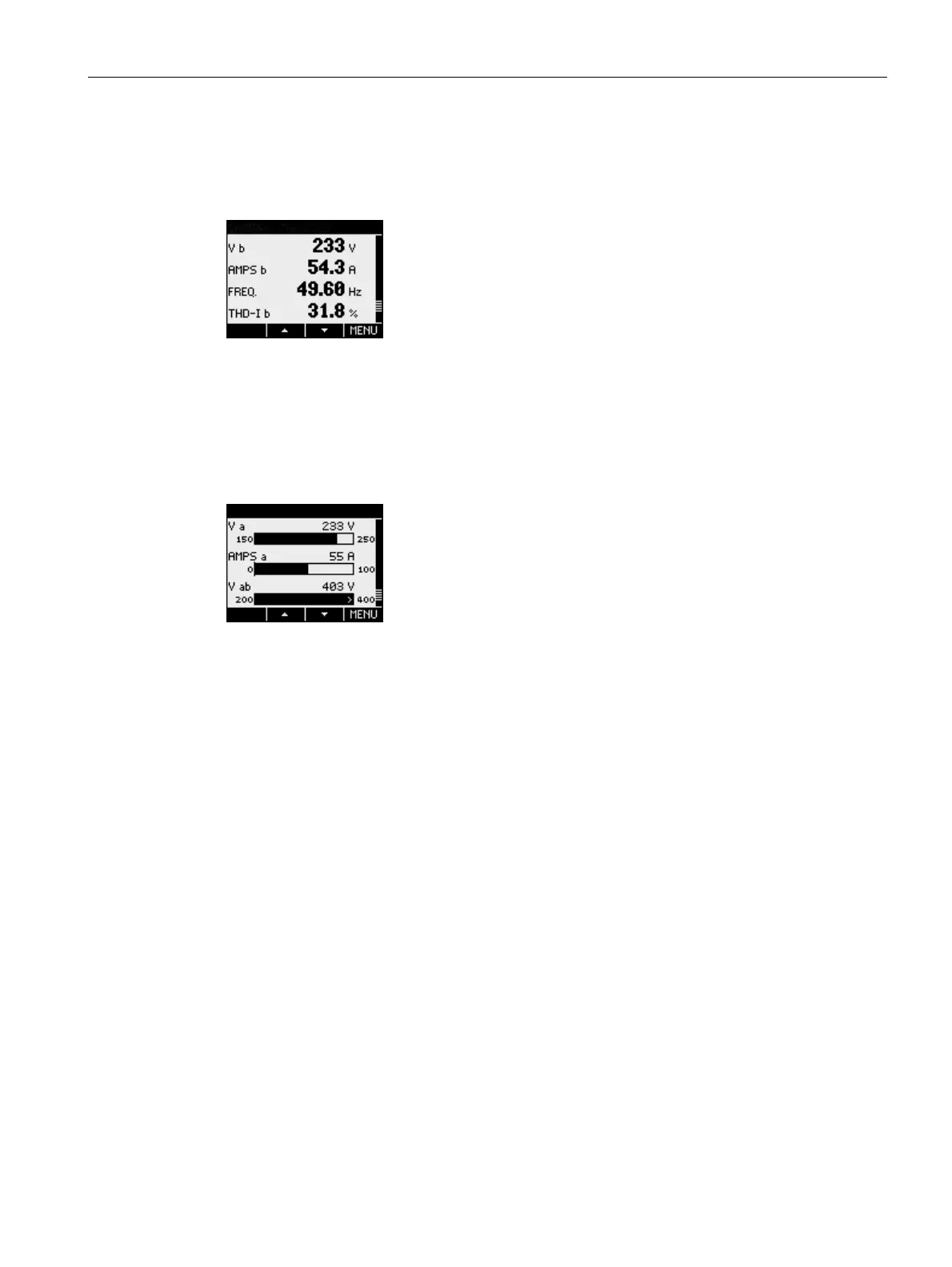

Figure 3-20 Example of a definable display (digital display)
Graphical display
The instantaneous value, designation, unit, and parameterizable value range are shown for
each measured variable. The instantaneous value is represented as a bar diagram and
digital information.
Figure 3-21 Example of a freely definable display (bar diagram)
An outward pointing arrow in the bar means that the instantaneous value displayed is
outside the parameterized range.
Displays for counters
Users can define up to 5 displays in conjunction with the SENTRON PAC 4DI/2DO
expansion module.
Configuring
The displays can be configured with the SENTRON powerconfig software.
3.16 Events
The device reports the occurrence of certain events. These events are listed in the event
recording undertaken by SENTRON PAC. You can acknowledge acknowledgable events in
a popup window on the device.
