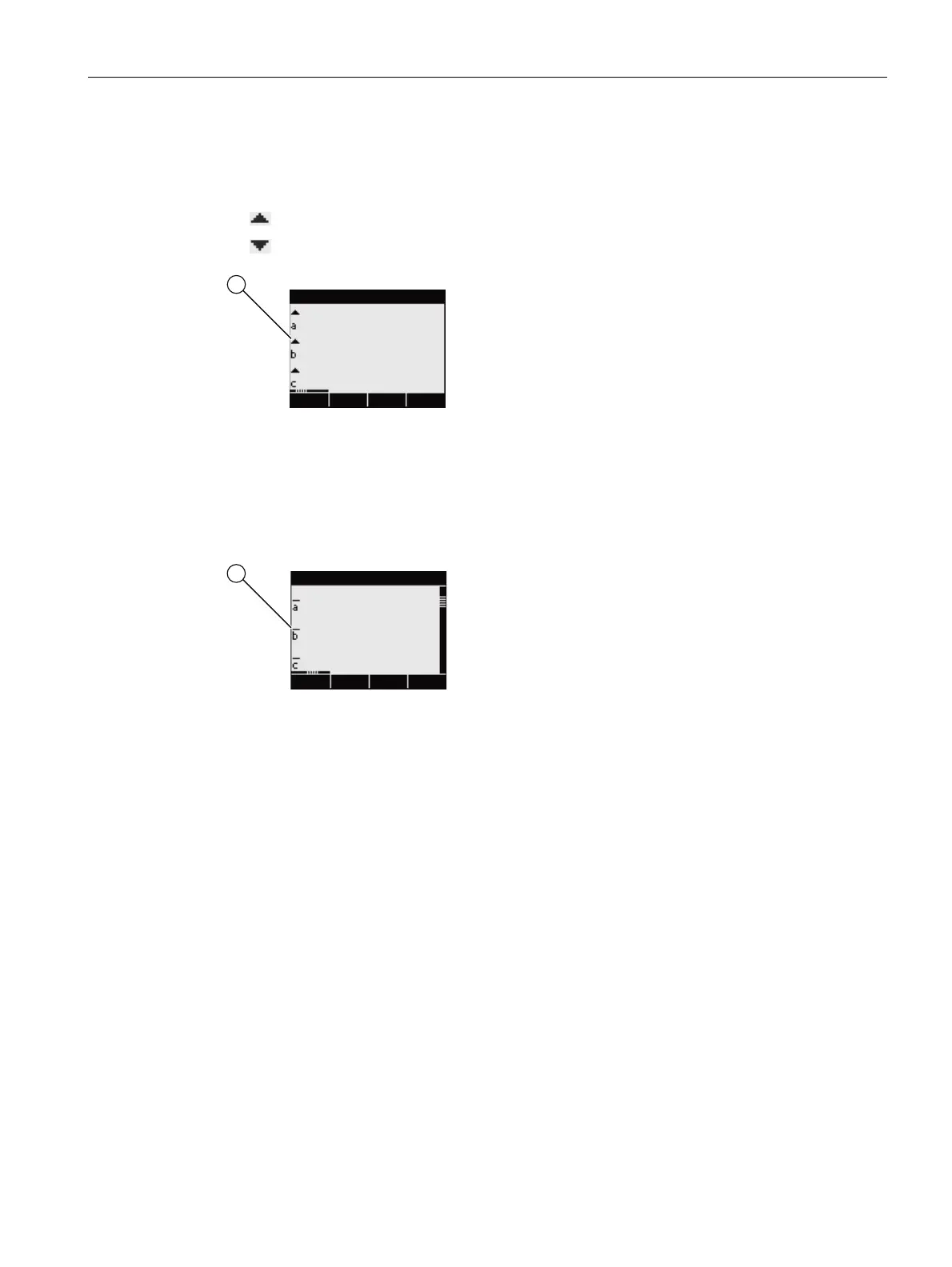

Symbols for maximum and minimum values
Maximum and minimum values are additionally marked by a symbol. An upward or
downward pointing arrow appears above the phase or measured variable designation.
●
Maximum
●
Minimum

(1) Symbol for maximum value
Figure 8-6 Symbols for displaying maximum and minimum values
Symbol for sliding window demand
Sliding window demand values are additionally marked by a symbol. A stroke (bar) appears
above the phase or measured variable designation.

(1) Stroke above the phase designation
Figure 8-7 Symbol for sliding window demand
