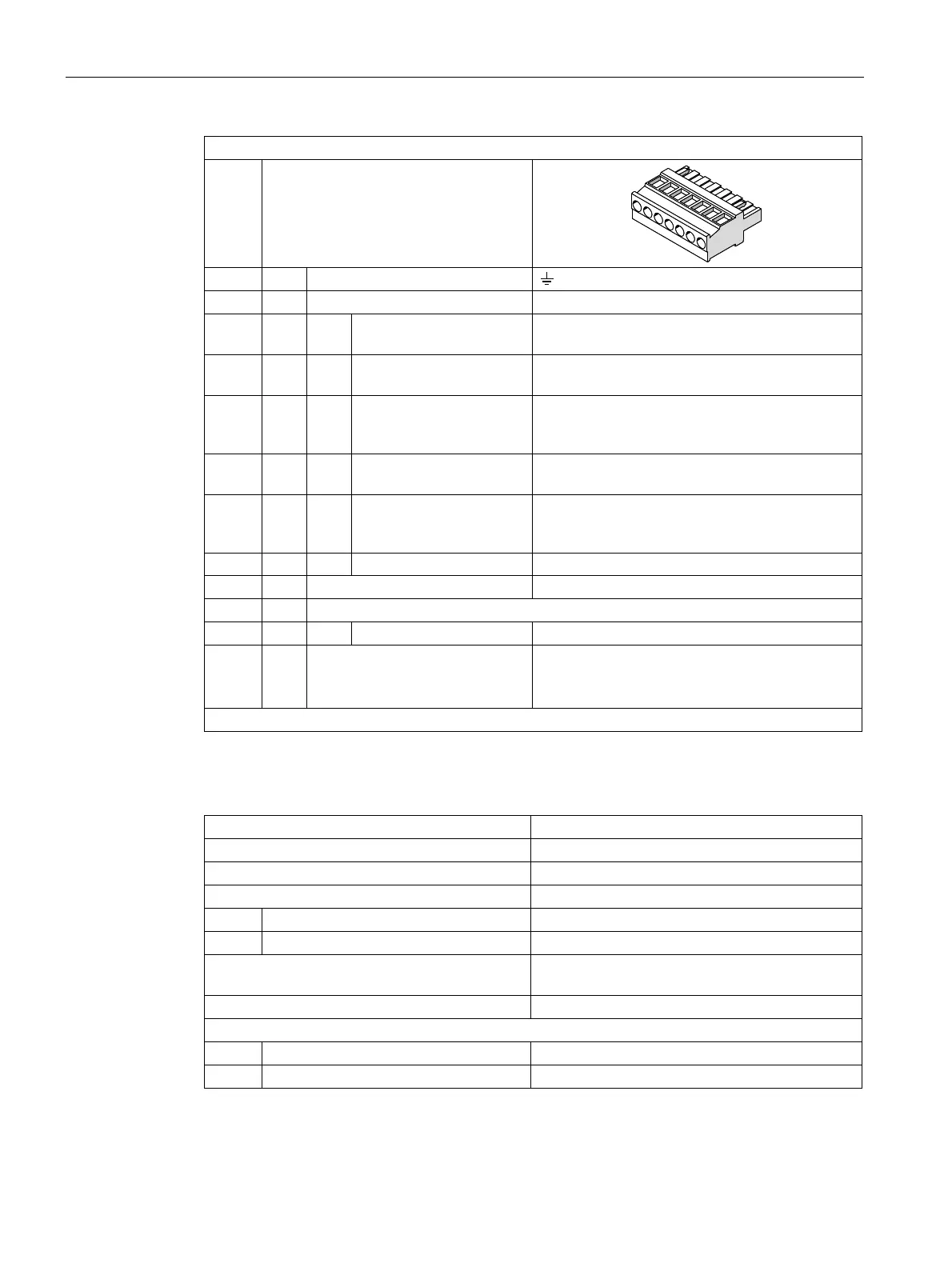

Technical data
11.1 Technical data
SENTRON PAC4200
182 System Manual, 09/2009, A5E02316180B-02
Digital outputs, digital inputs
Screw terminal
Connection designations , DIC, DI1, DI0, DOC, DO1, DO0
Conductor cross section
Solid 1 x 0.2 ... 2.5 mm²
2 x 0.2 ... 1.0 mm²
Finely stranded without
end sleeve
1 x 0.2 ... 2.5 mm²
2 x 0.2 ... 1,5 mm²
Single-core with end
sleeve, without plastic
sleeve
1 x 0,25 ... 2.5 mm²
2 x 0,25 ... 1.0 mm²
Single-core with end
sleeve, with plastic sleeve
1 x 0.25 ... 2.5 mm²
Finely-stranded with
TWIN end sleeve, with
plastic sleeve
2 x 0,5 ... 1,5 mm²
AWG cables 1 x 24 ... 12
Stripping length 7 mm
Connection screws
Tightening torque min. 0.5 Nm
Tools Screwdriver PZ1
cal. ISO 6789
Crimping tool in accordance with EN 60947-1
RJ45 connector
Dimensions and weights
Type of fixing Panel mounting to IEC 61554
Size W x H x D 96 mm x 96 mm x 82 mm
Cutout (W x H) 92
+0.8
mm x 92
+0.8
mm
Overall depth
Without expansion module 77 mm
With expansion modules 99 mm
Permissible switching panel thickness for
installation
max. 4 mm
Mounting position Vertical
Weight
Device without packaging Approximately 450 g
Device including packaging Approximately 550 g
