Description
3.9 Function of the digital inputs and outputs
SENTRON PAC4200
System Manual, 09/2009, A5E02316180B-02
47
The digital output is passive and implemented exclusively as a switch.
The implementation of the pulse shape corresponds to the IEC 62053-31 standard.

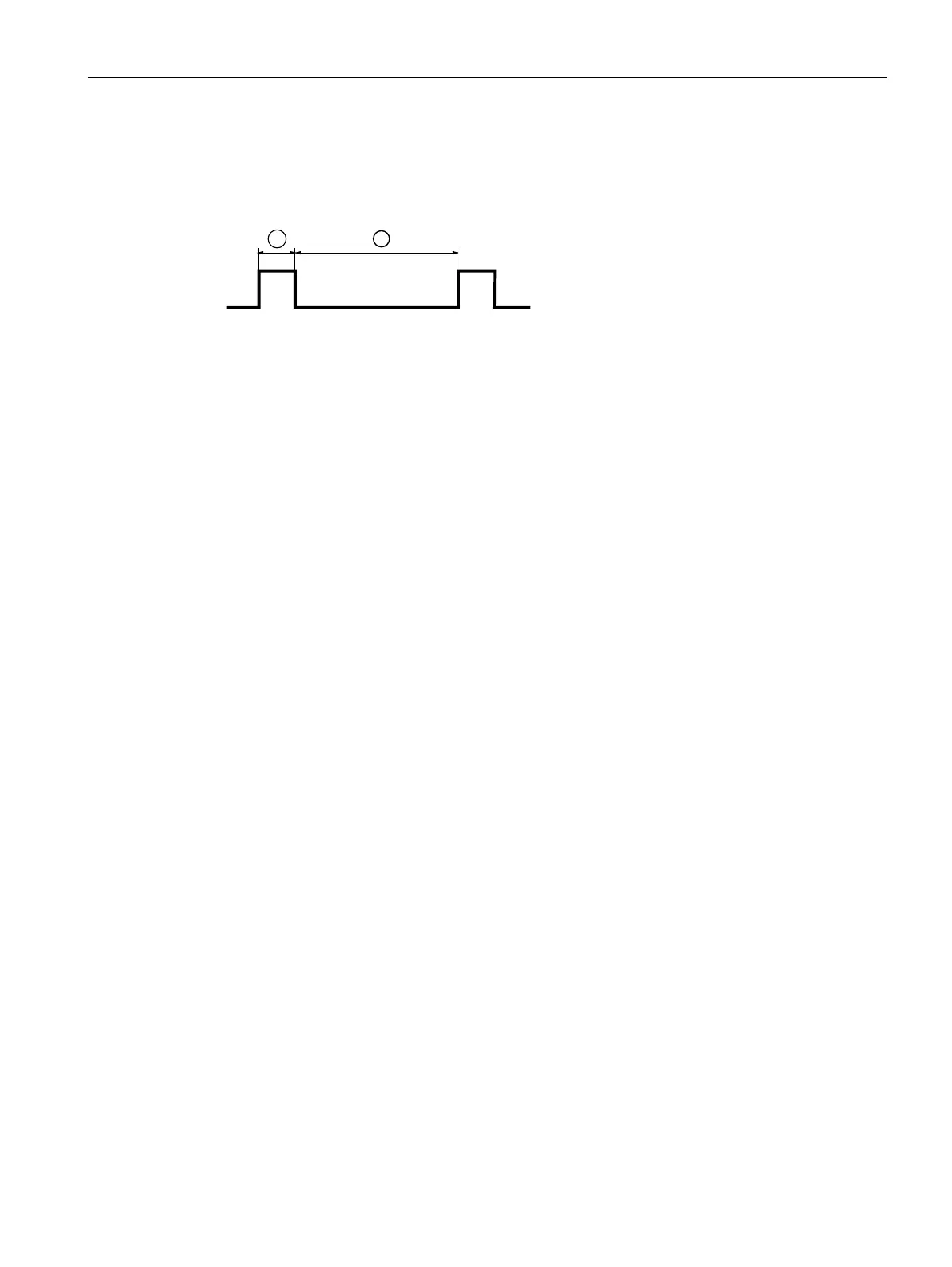

Pulse length, turn-off time
(1) Pulse length
(2) Turn-off time
Figure 3-16 Pulse length and turn-off time
● Pulse length:
Time for which the signal at the digital output is "high". The minimum pulse length is
30 ms and the maximum 500 ms.
● Turn-off time:
Time for which the signal at the digital output is "low". The turn-off time depends on the
measured energy, for example, and can be days or months.
● Minimum turn-off time:
The minimum turn-off time is specified by the programmed pulse length.
Functions of the digital inputs
The following functions can be assigned to the digital inputs:
● Tariff switching for on-peak and off-peak.
● Synchronization of the measuring period by means of the synchronization pulse of a
system control center or other device.
● Synchronization of the internal clock ("Top of minute").
● Status monitoring: Capturing statuses of connected signal encoders.
● Energy signal for active or reactive energy or freely definable energy types.
● Starting and stopping the process energy counters and the process operating hours
counter
● Copying and resetting:
– All process energy counters
– The counter for process active energy
– The counter for process reactive energy
– The counter for process apparent energy
