Connecting
6.4 Connection examples
SENTRON PAC4200
System Manual, 09/2009, A5E02316180B-02
89

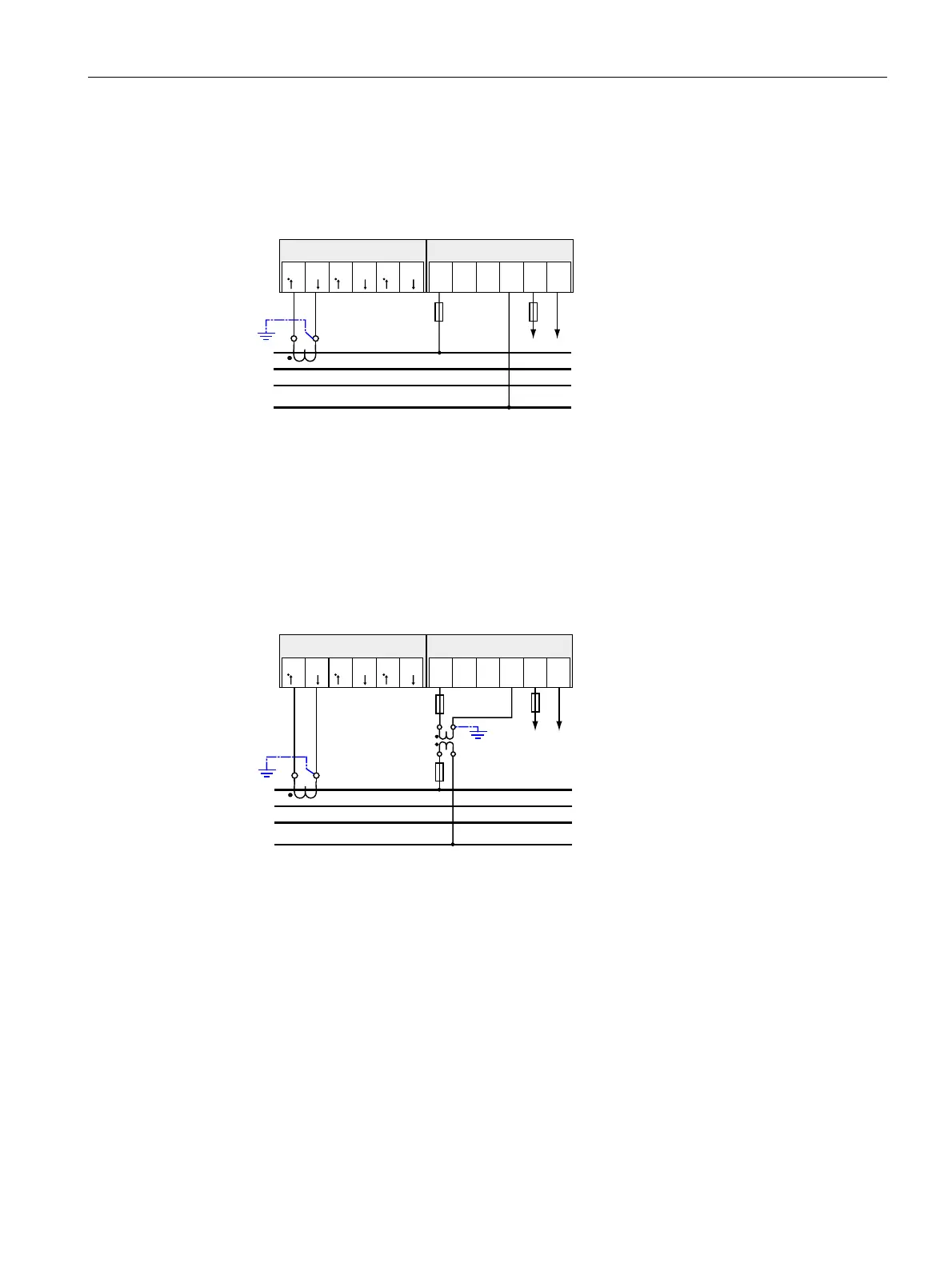

(3) Three-phase measuring, four conductors, balanced load, without voltage transformers,
with one current transformer
Connection type 3P4WB

))
1Q
/D
/E
/F
; ;
,/ ,/ ,/ ,/ ,/ ,/
/ 19

9

9

9
1
NO NO NO
* Fuses must be provided by the customer.
** Supply voltage connection
Figure 6-11 Connection type 3P4WB, without voltage transformer, with one current transformer
(4) Three-phase measuring, four conductors, balanced load, with voltage transformers, with
one current transformer
Connection type 3P4WB
1Q
/D
/E
/F

)
)
)
; ;
,/ ,/ ,/ ,/ ,/ ,/
/ 19

9

9

9
1
NO NO NO
* Fuses must be provided by the customer.
** Supply voltage connection
Figure 6-12 Connection type 3P4WB, with voltage transformer, with one current transformer
