6.7 Connecting the SENTRON PAC 4DI/2DO expansion module
SENTRON PAC4200
System Manual, 09/2009, A5E02316180B-02
99
',& ', ', ', ', '2& '2 '2

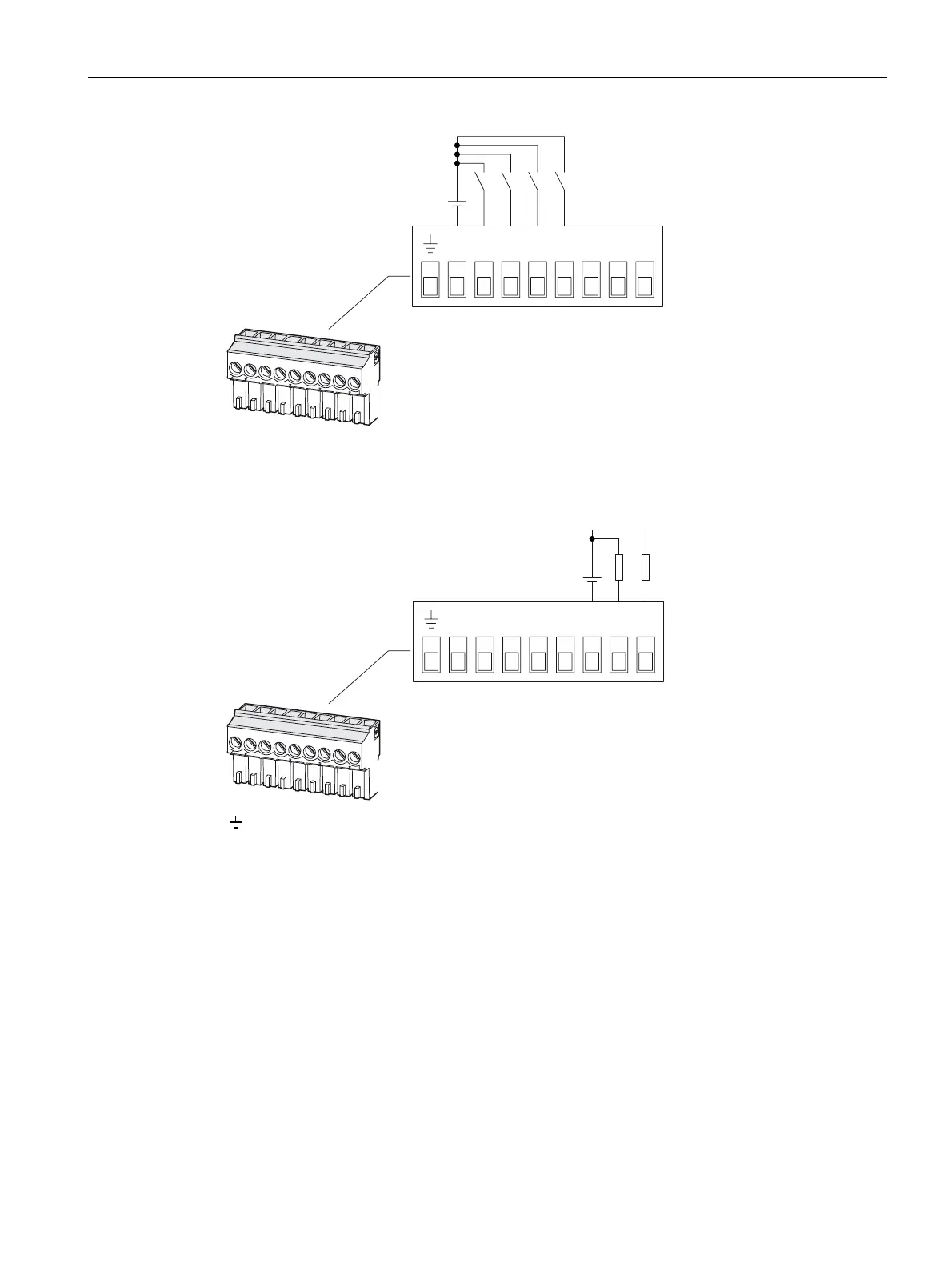

Figure 6-28 Terminal assignment with switching of the digital inputs with external power supply
Digital outputs
',& '2', ', ', '2& '2',
Reference potential
DOC Digital output common
DO1 Digital output 1
DO0 Digital output 0
Figure 6-29 Terminal assignment with switching of the digital outputs
See also
Technical data of the SENTRON PAC 4DI/2DO expansion module (Page 188)
Electrostatic sensitive devices (ESD) (Page 273)
Tools (Page 69)
Connecting the cables to the terminals (Page 86)
