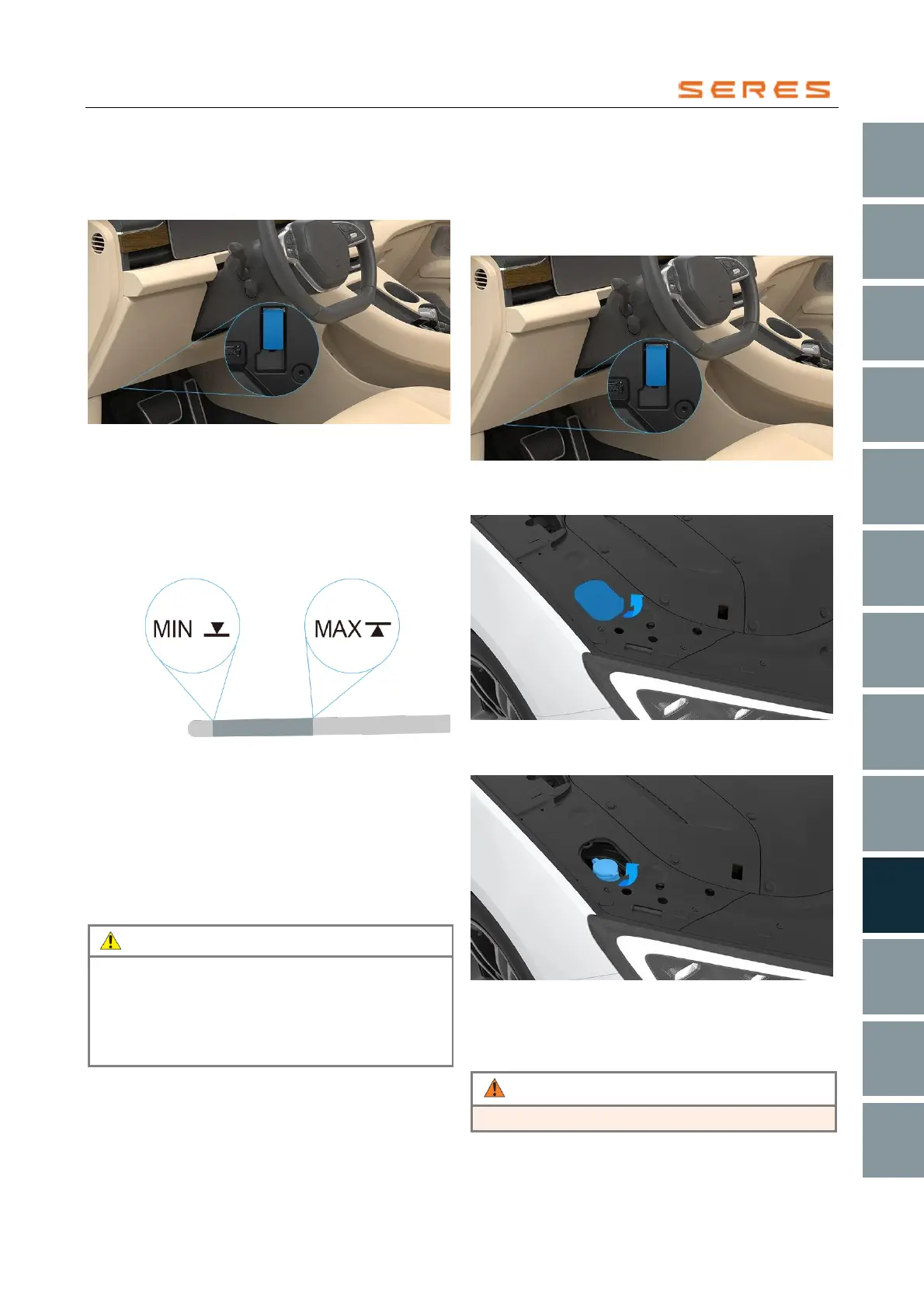

Range Extender Lubricating Oil Level Check
1. Before checking the oil level, park the vehicle on a
level surface.
2. Open the front nacelle cover.
* The image is for reference only; please refer to the actual
product
3. Remove the lubricating oil dipstick from the front
nacelle and wipe it clean.
4. Reinsert the lubricating oil dipstick completely, then
pull it out again and check the oil level. The
lubricating oil level must be between the MIN and
MAX marks.
* The image is for reference only; please refer to the actual
product
5. If the lubricating oil level is close to or below the MIN
mark, slowly add range extender lubricating oil, being
careful not to overfill.
6. If necessary, recheck the lubricating oil level and add
range extender lubricating oil, recommended to fill it
to a position slightly above the middle of the two
marks.
Caution
• Range extender oil level check should be
performed after the range extender has cooled
down to prevent burns.
• If the fluid level is between the MIN and MAX
marks, it indicates that the lubricating oil level in
the range extender is normal.
Windshield Wiper Fluid Check
The windshield wiper fluid filling port is located on the right
side of the front nacelle. When the vehicle is low on
windshield wiper fluid, it should be promptly filled.
Filling Windshield Wiper Fluid
1. Open the front nacelle cover.
* The image is for reference only; please refer to the actual
product
2. Lift up the right tank lid panel on the front nacelle.
* The image is for reference only; please refer to the actual
product
3. Open the cover of the washer fluid filling port.
* The image is for reference only; please refer to the actual
product
4. Fill as needed to the appropriate level.
5. Ensure that the cover of the washer fluid filling port is
securely installed.
Warning
• Regularly check if the washer nozzles are blocked.
