Brake System

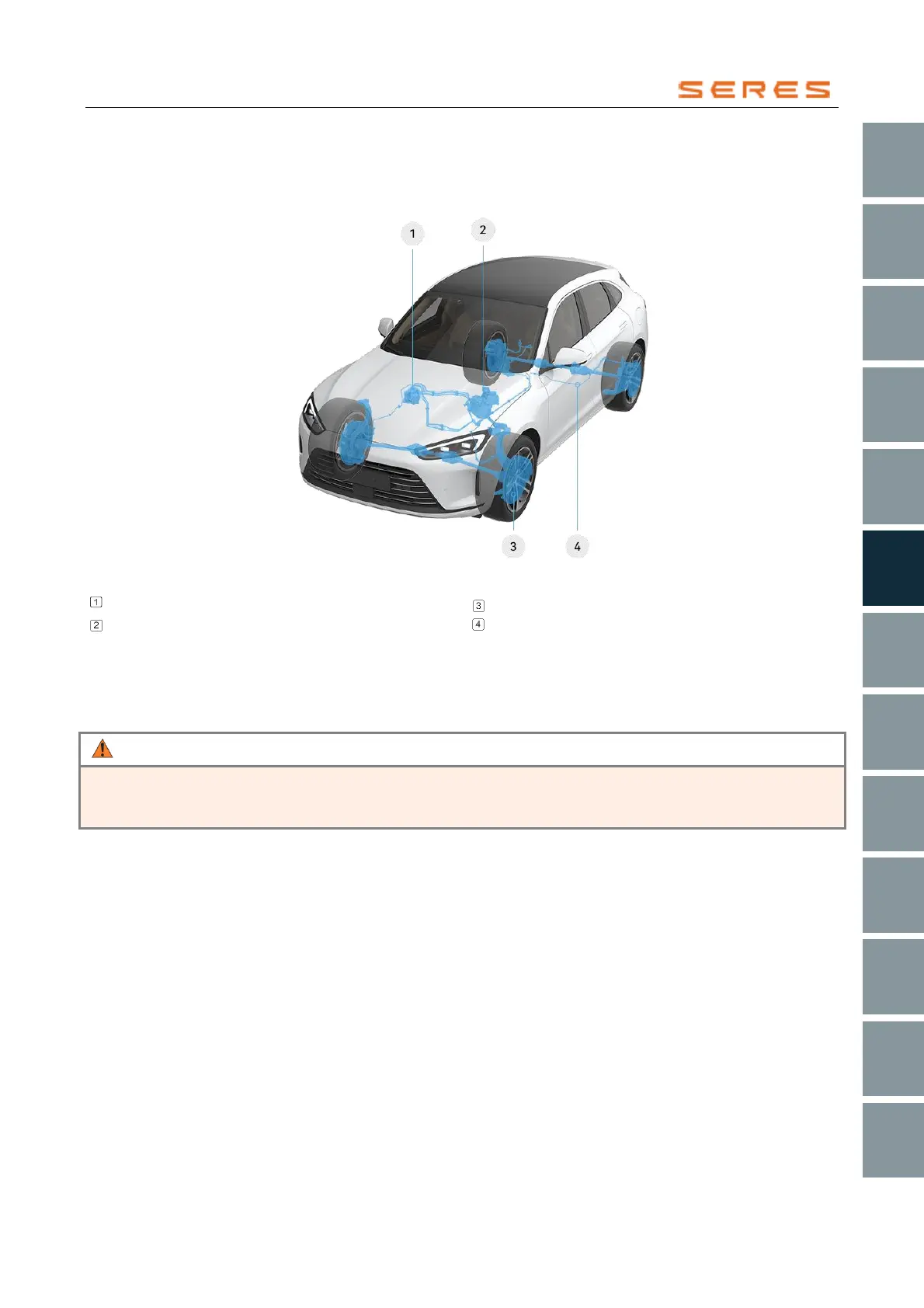

Brake System Overview
The brake system consists of the driving brake and the parking brake. The driving brake is used for deceleration during
vehicle driving, while the parking brake is used to prevent the vehicle from rolling when parked.
* The image is for reference only; please refer to the actual product
ESC Electronic Stability Control Controller
Intelligent Booster
Brake Actuator
Brake Lines
In the brake system, brake pads and brake discs are consumables. The brake pads are equipped with wear indicators,
thin metal plates connected to the brake pads. When the brake pads wear to the limit, the metal plate will rub against the
brake disc, producing a sharp friction sound. If this happens, please visit the dealer for inspection.
Regularly remove the tire and wheel to visually inspect the brake components. For detailed specifications and usage
restrictions on brake discs and brake pads, refer to page 201.
Warning
• Failure to replace worn brake pads may damage the brake system and pose a safety risk.
• During each vehicle maintenance, please inspect the wear of the brake discs and brake pads, and replace them
based on the recommendations of the maintenance personnel.
