Synchronous operation with a DRS option card
IPOSplus
®
and Synchronized Motion
9.3.3 Activating and deactivating the offset function
Via the system variable DRS CTRL. H476 you can set/reset the two programmable out-
puts of the DRS11.

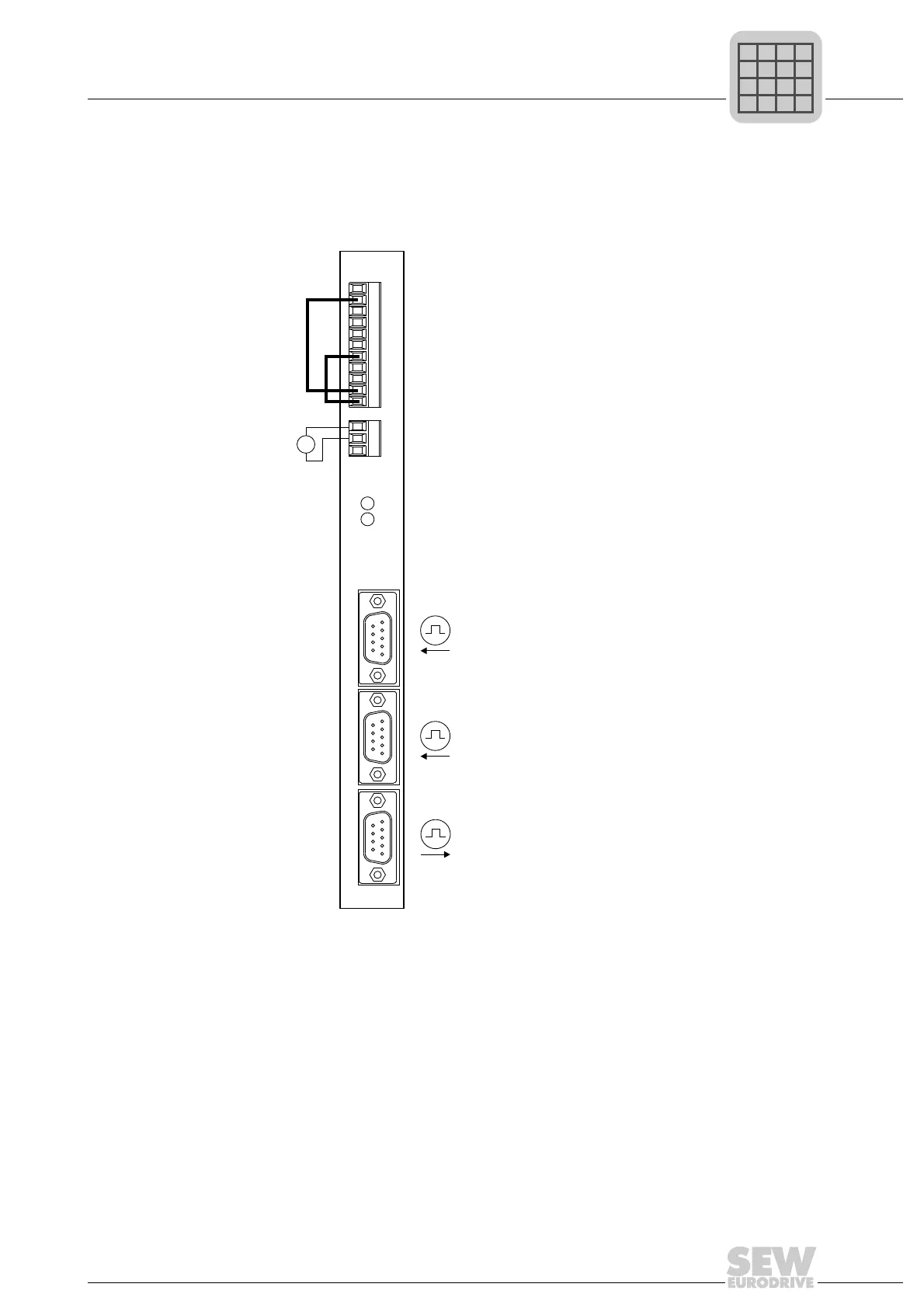

Offset wiring example:
Output X40:10 is set using the BSET H476.1 command. A signal is sent to X40:2 via a
jumper from X40:10 to X40:2, and the "Offset" function is activated.
478833419
DRS11B
X40X44
X41X42X43
Sync
OFF
5
1
9
6
5
1
9
6
5
1
9
6
1
2
3
4
5
6
7
8
9
10
11
1
2
3
INØ..5
DCOM
V024
OUTØ..1
DGND
-
+
V
DC 24 V
