Manual – IPOSplus®
6
Modulo function
Position Detection and Positioning

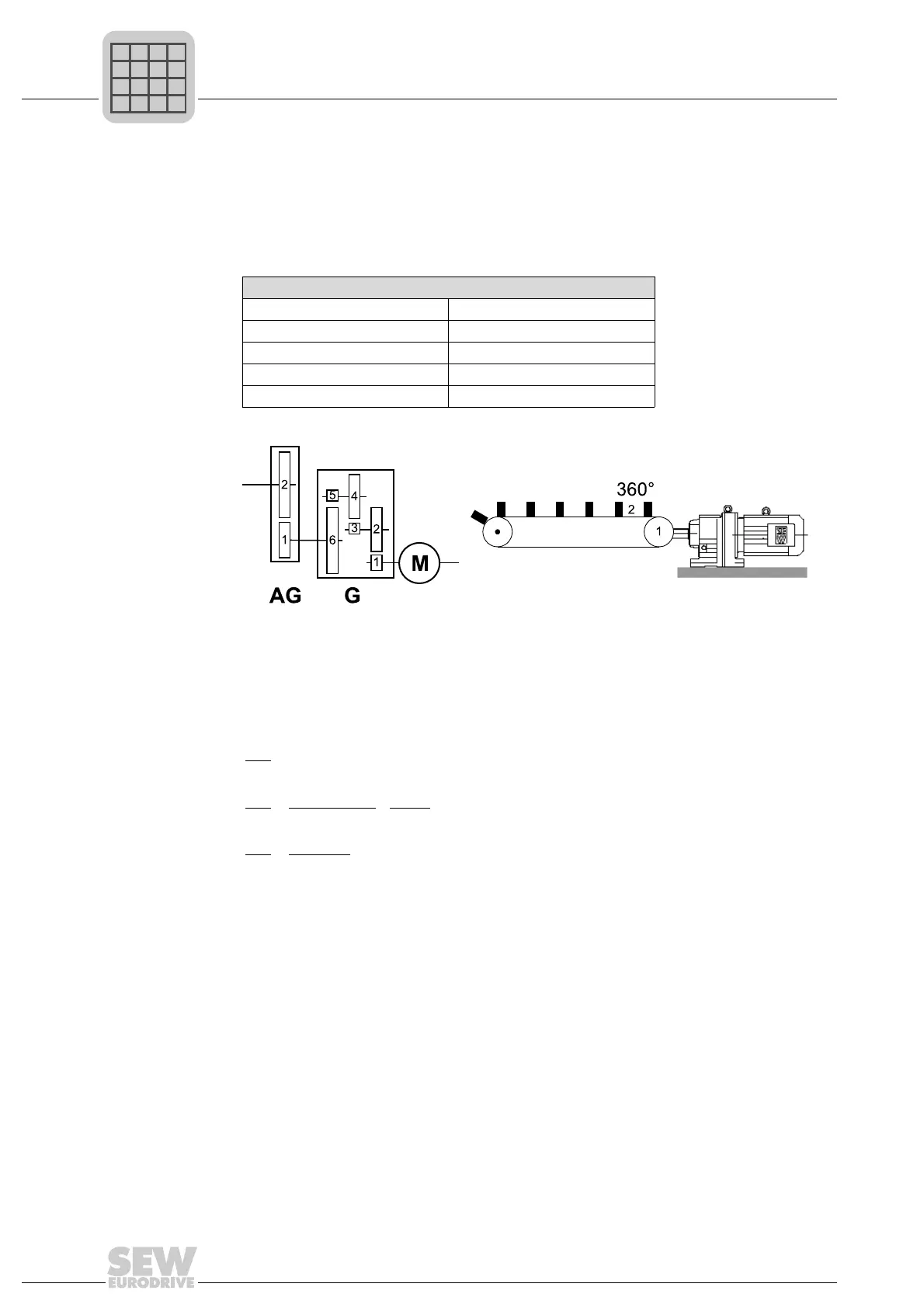

Chain conveyor
with carrier
Step 1: Defining the output unit
Now, the previous example shall be extended:
A gear wheel is mounted to the gear unit that drives a chain. There are 35 chain links
between each carrier.
Step 2: Determining the SHELL parameters
Number of teeth of the additional gear chain sprocket: Z
AG
1 = 5
Carrier spacing in chain links: Z
AG
2 = 36
i additional gear = 5/36
Modulo numerator = 1021977
Modulo denominator = 1360
Modulo encoder resolution = 4096
Technical data
Gear unit type KA47B
Output speed [rpm] 19
Motor speed [rpm] 2000
Gear unit reduction ratio i 104.37
Motor type DY71S
477253515
M
M
ii
M
M
ZZZ
ZZ Z
Z
Z
M
M
N
D
GAG
N
D
AG
AG
N
D
=×
=
++
++
×
=
246
13 5
2
1
1021977
1360
