46
ST SERIES
ENGINE ASSEMBLING

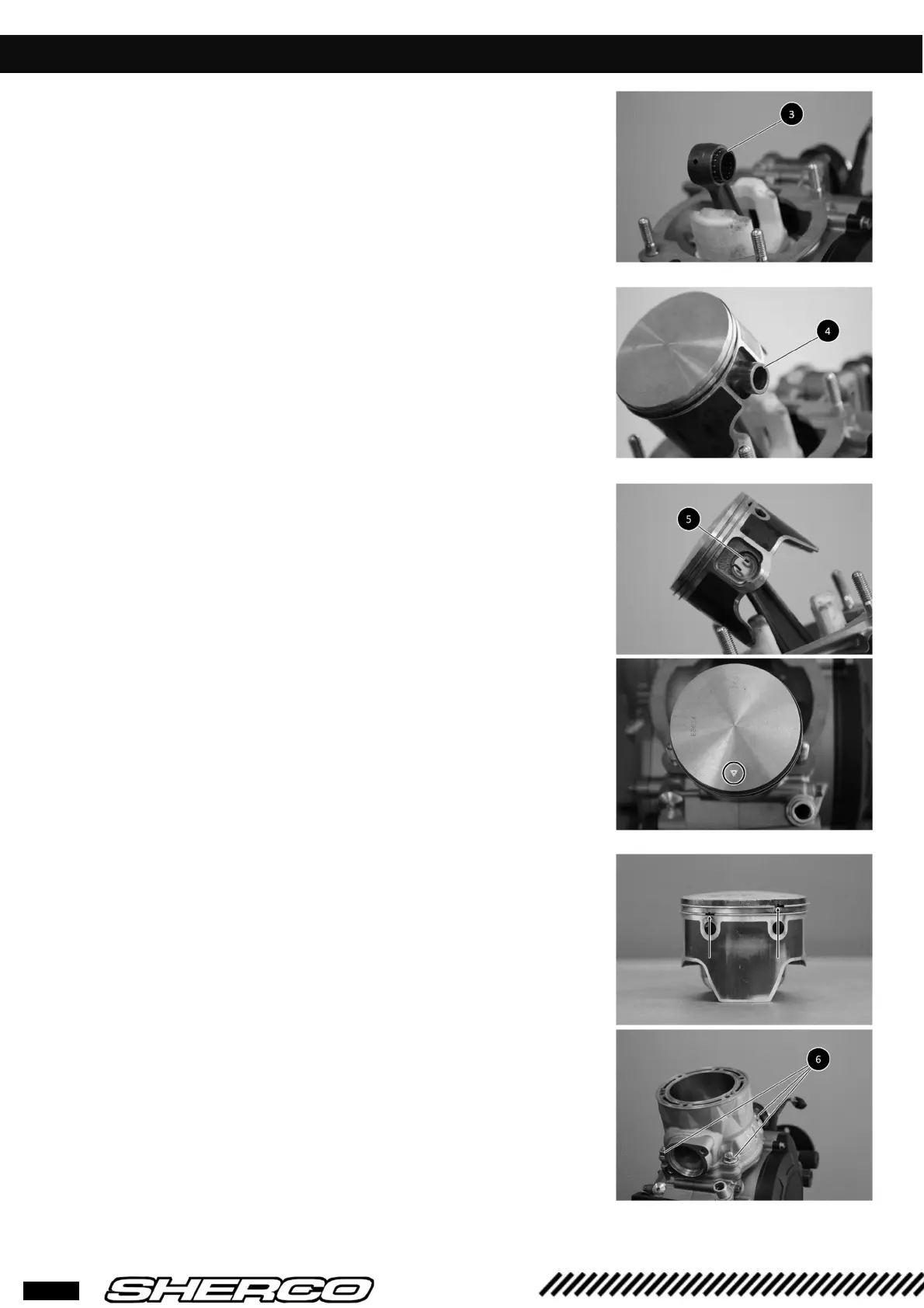

• Place the needle cage
3
.
• Fit the wrist pin
4
.
• Fit the clips on both sides of the piston
5
.
• Make sure the piston is in the right way : the arrow
engraved on its crown must point towards the
exhaust port.
• Make sure the rings ends face the
piston pins.
• Fit the cylinder.
• Tighten its four base nuts
6
at a 20Nm torque.
