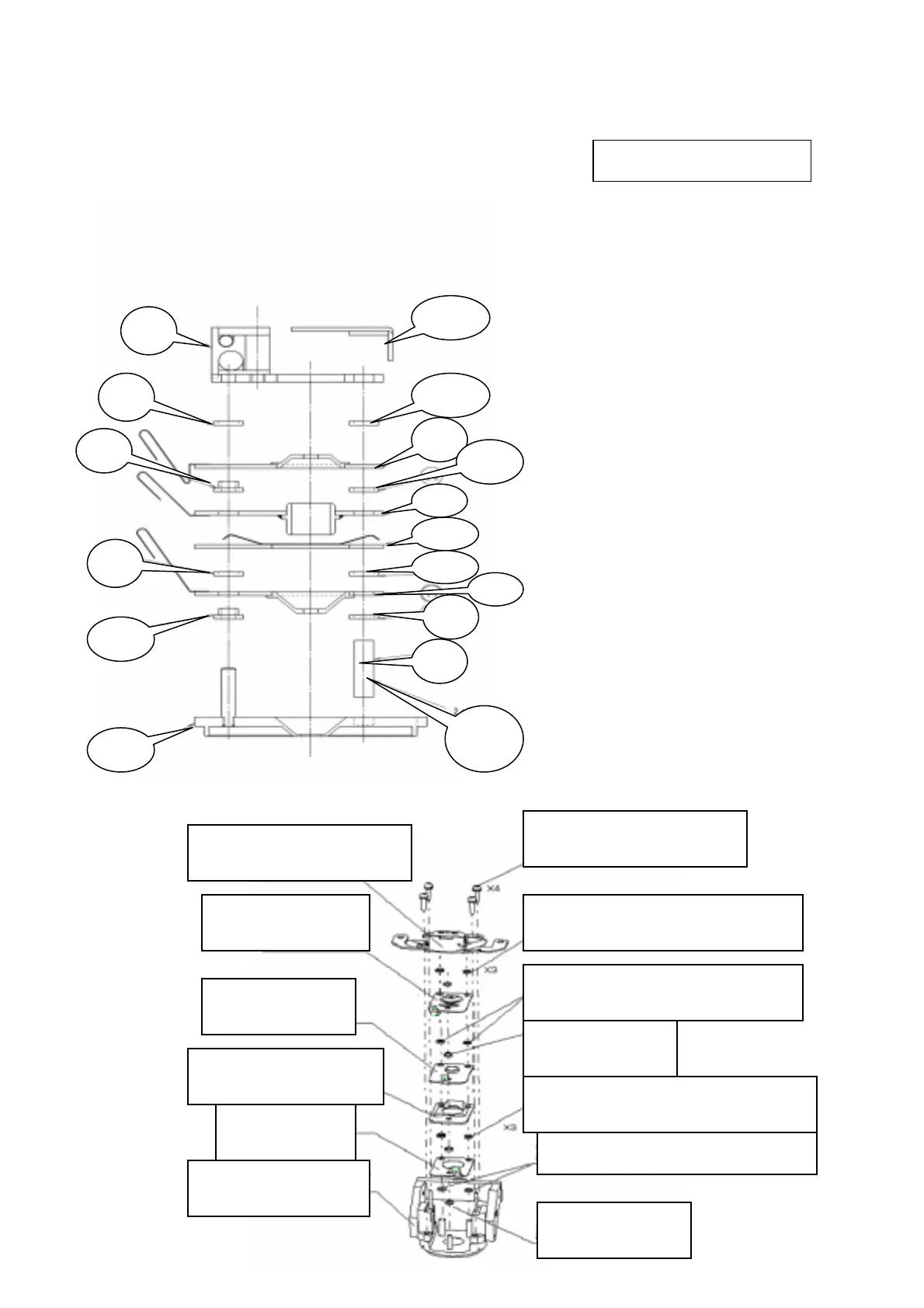

Details of the lens unit
Ceramic insulator A24 - 251 - 1
200-44394
Ceramic insulator A24 - 251 - 1
200-44394
Ceramic bushing
225-01068
Ceramic insulator A24 - 251 - 1
200-44394
Ceramic insulator A24 - 251 - 1
200
-
44394
Ceramic bushing
225-01068
Screw, SUS screw-washer,
020-46137
HEATER BLOCK ASSY
225-10439-91
LENS2 ASSY
225-10263-91
LENS3 ASSY
225-10264-91
SPRING ASSY
225-10266-91
LENS4 ASSY
225-10265-91
IS MAG BASE ASSY
225-10440-91
⑪ IS MAG Base Assy 225-10440-91
⑫ Heater Block 225-10439-91
⑮ LENS 2 Assy 225-10263-91
⑯ LENS 3 Assy 225-10264-91
⑰ LENS 4 Assy 225-10265-91
⑱ Spring Assy 225-10266-91
21 Insulator pin (glass) 225-10230-01
22 Plate 225-10257
28 Insulator bushing 225-01068
２２
２９
１５
１６
２９
１８
２９
１７
２９
２１
１２
２９
２８
２９
２８
１１
２ poit
2place
