7
4) Power cable connection

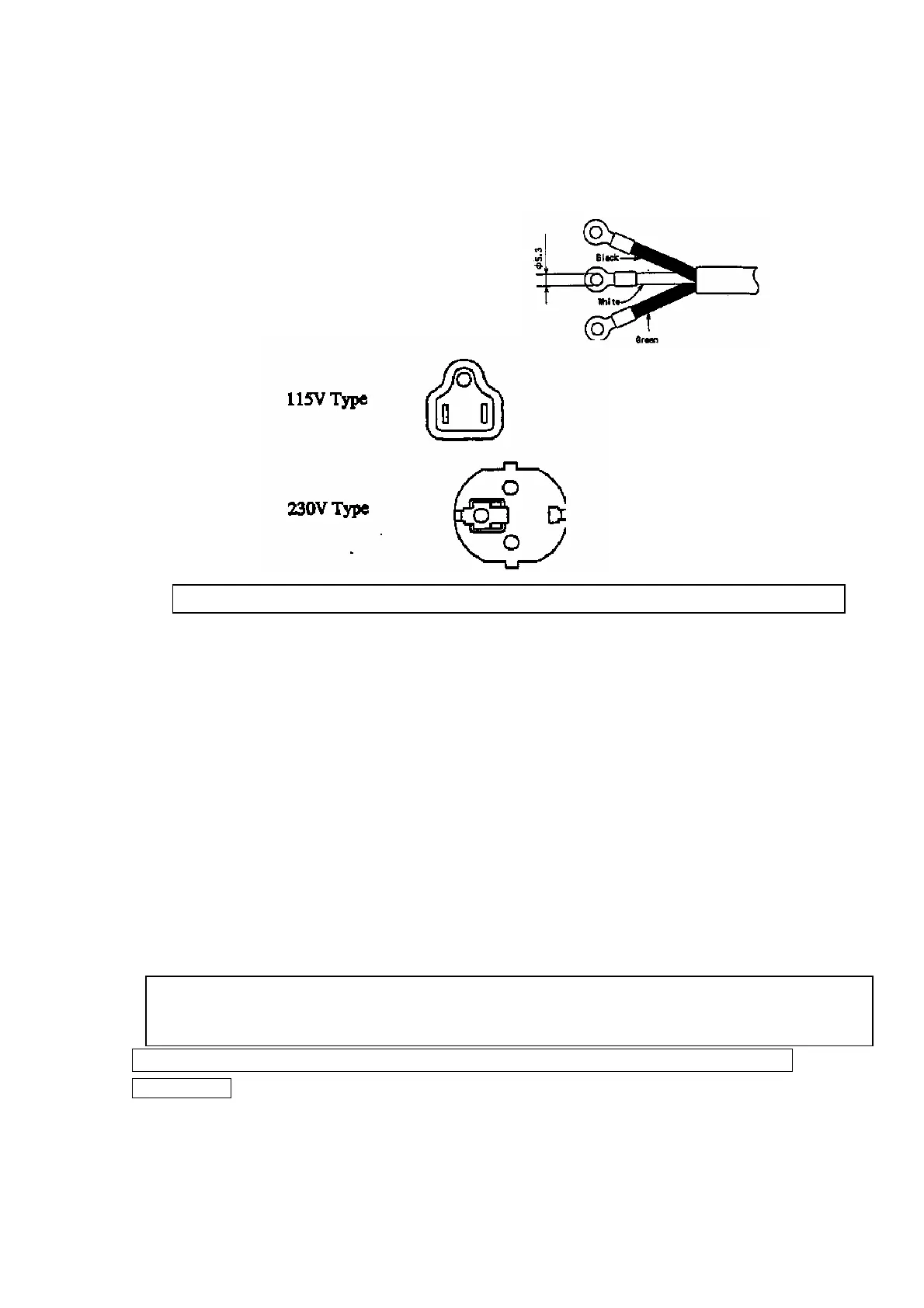

The end of power cables for GC and MS constructed as shown below.
Power cables for GC
Black: Connected to the HOT side of AC line.
White: Connected to the NEUTRAL side of AC line.
GREEN: For grounding
Power cable for MS
115V Type
230V Type
Check the installation position.
□ Can a space of at least 300mm at the rear and 400mm at the left of the instrument be
maintained?
□ Is the desk strong enough to easily support about 110kg?
□ Is the temperature in the range 18 to 28
M
C ?
□ Humidity: 40% to 70%(with no condensation)
Check the gas.
□ Is the He gas of at least 99.995% purity?
Check the exhaust system.
□ Is an exhaust duct system available?
If not, attach an EMF3 (042-00124-31) oil-mist filter.
The checkbox marks (□) indicate check items in the Installation Completion Checksheet
(ZEAV-0416).
CAUTION: Be sure to ground the instruments to avoid shock hazards.
CAUTION: Do not place flammable materials near the air exhaust hole of the columm oven in the
Back of the GC.Failure to avoid them may be csuse a fire.
