16 FLOWSIC600-XT · Service Manual · 8019179/V0-2/2016-03 · © SICK Engineering GmbH
Components
Subject to change without notice
2.1.3 FLOWSIC600-XT 2plex

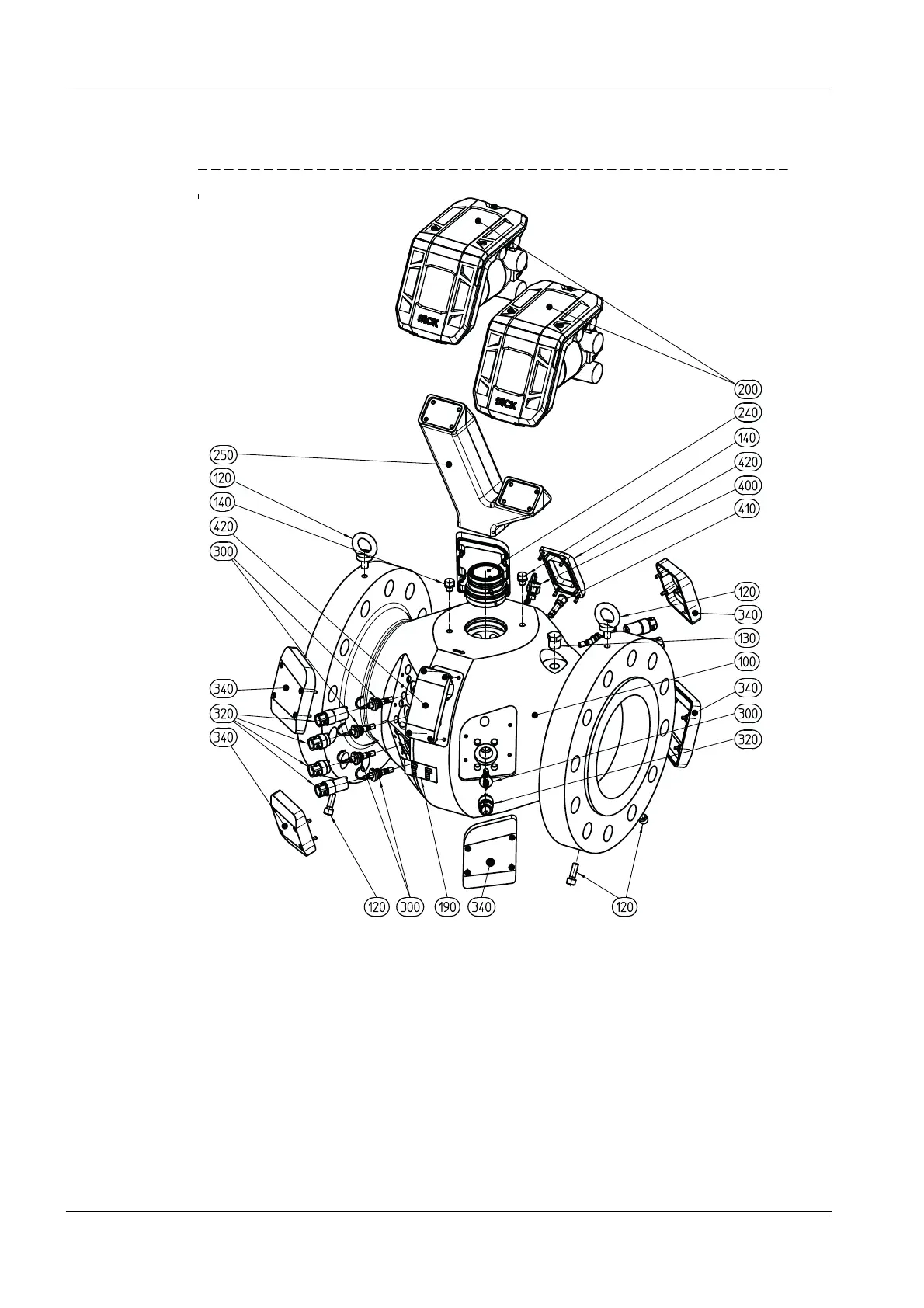

Fig. 3 Exploded view FLOWSIC600-XT 2plex
100 Meter body 300 Sensor
120 Meter body screws 320 Sensor assembly set
140 Pressure compensation element 340 Sensor cover
190 Meter body type plate 400 Pressure sensor
200 SPU 410 pT sensor set
240 SPU neck assembly set 420 pT sensor cover
250 SPU neck
