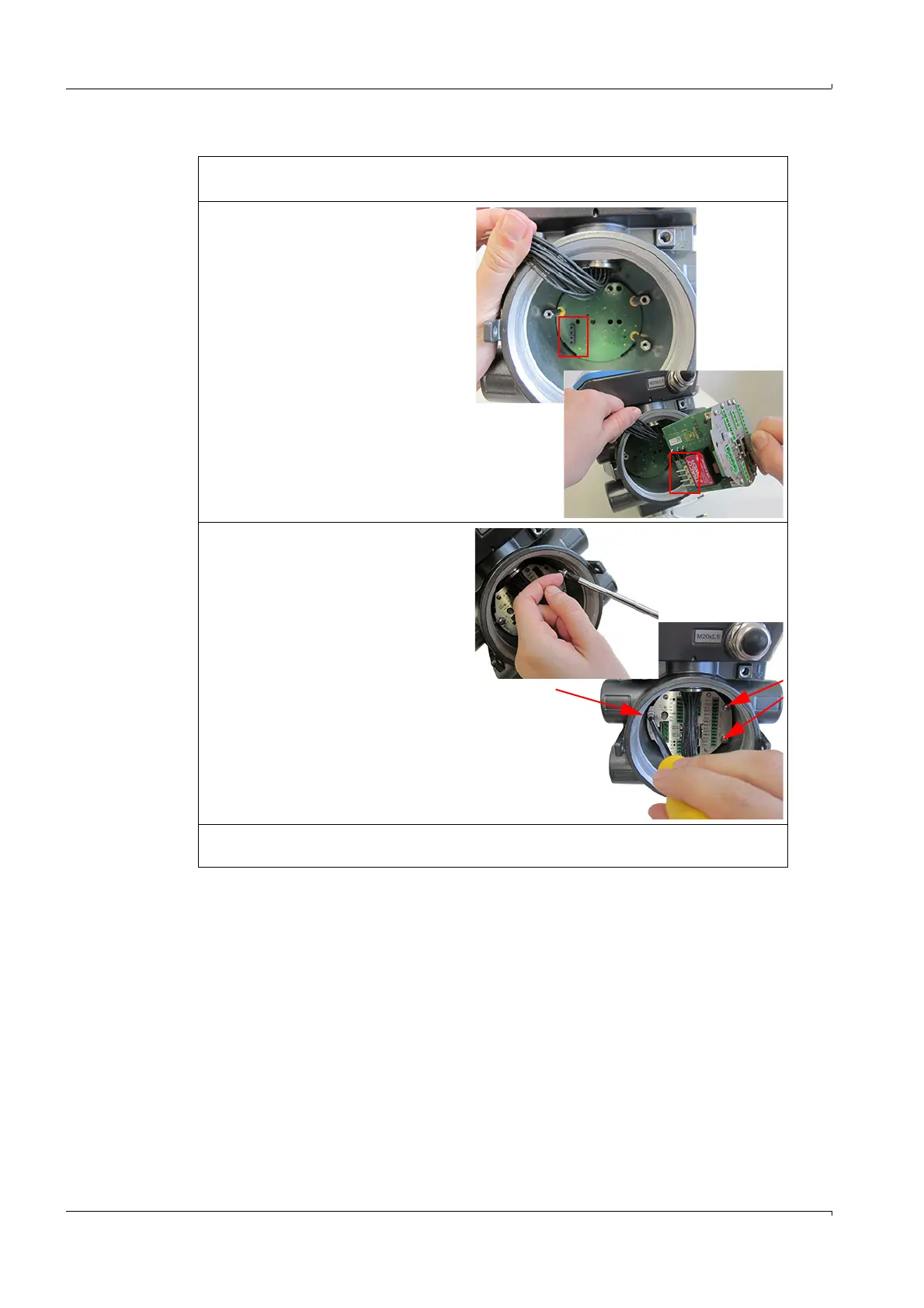

3.5.6.3 Fit the new Ex-d I/O block
1 Unpack the new I/O block and check for transport damage.
Do not use the I/O block when any damage can be seen.
2 Carefully guide the I/O block past the
Ex-e cables and plug into the main
board.
Take care not to bend any pins.
3 Insert the 3 screws and screw tight.
Take care that the cutting ring
washers do not drop down.
4 Connect the electrics as described in §3.4 “Electrical Installation” in the
FLOWSIC600-XT Operating Instructions.
