3.5.7 Replacing the Ex-d I/O block fuse
Prerequisites
▸ The Ex-d terminal compartment is open:
– Open the Ex-d terminal compartment, → p. 42, §3.5.6.1

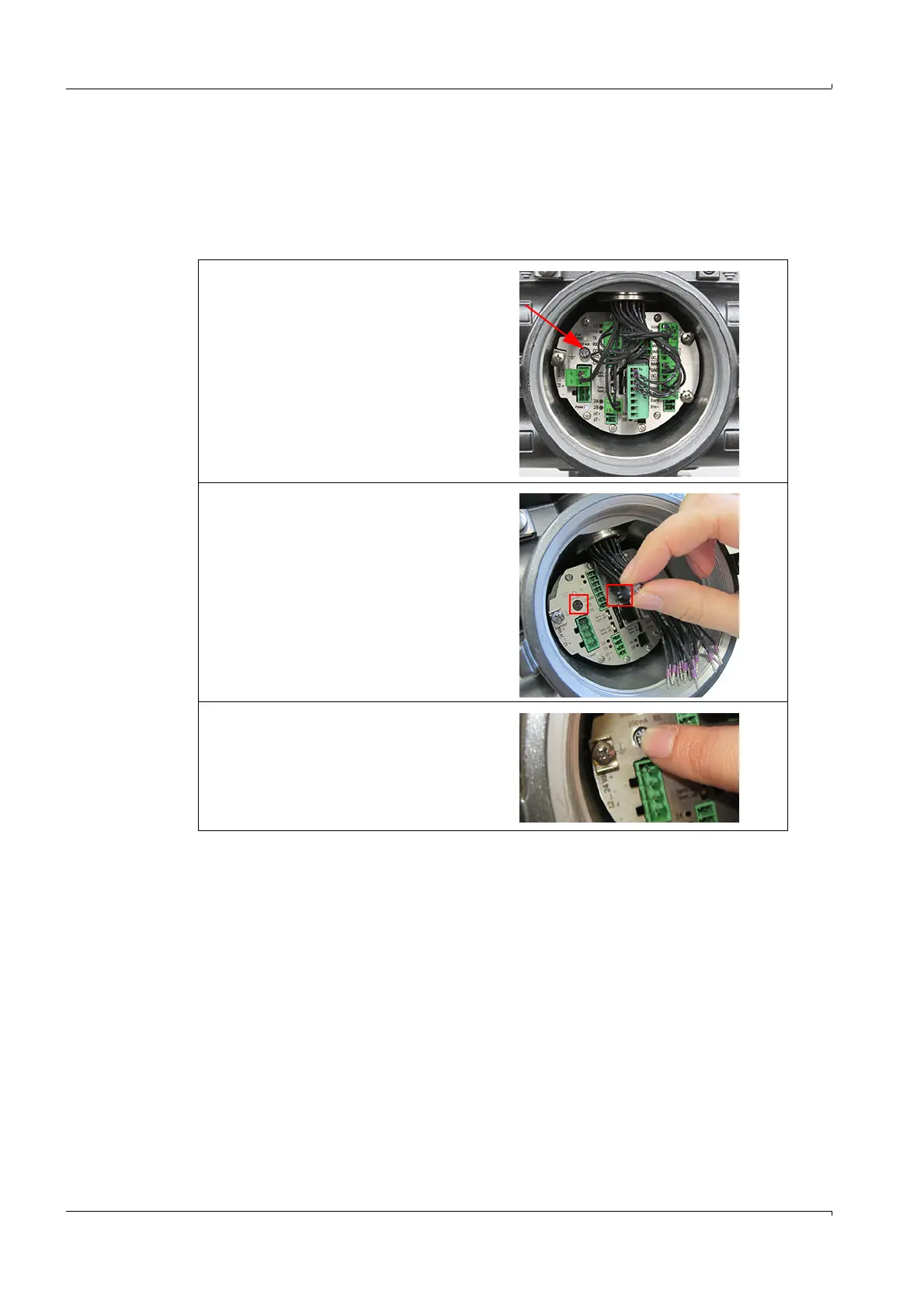

Replace the fuse
1 Remove the fuse.
2 Unpack the new fuse and check for
transport damage.
Do not use the fuse unit when any
damage can be seen.
3 Insert the new fuse.
Take care not to bend the pins.
4 Make sure the fuse has a tight seat.
5 Close the Ex-d terminal compartment
again → p. 45, §3.5.6.4.
