SICK FLOWSIC600-XT Service Manual

Repairs
FLOWSIC600-XT · Service Manual · 8019179/V0-2/2016-03 · © SICK Engineering GmbH 35
Subject to change without notice
3.5.2 Replacing the display cover
Prerequisites
▸ The display unit has been removed:
– Swivel the display unit downwards, → p. 31, §3.5.1.1.
– Remove the display unit, → p. 32, §3.5.1.2.
Replace the display cover

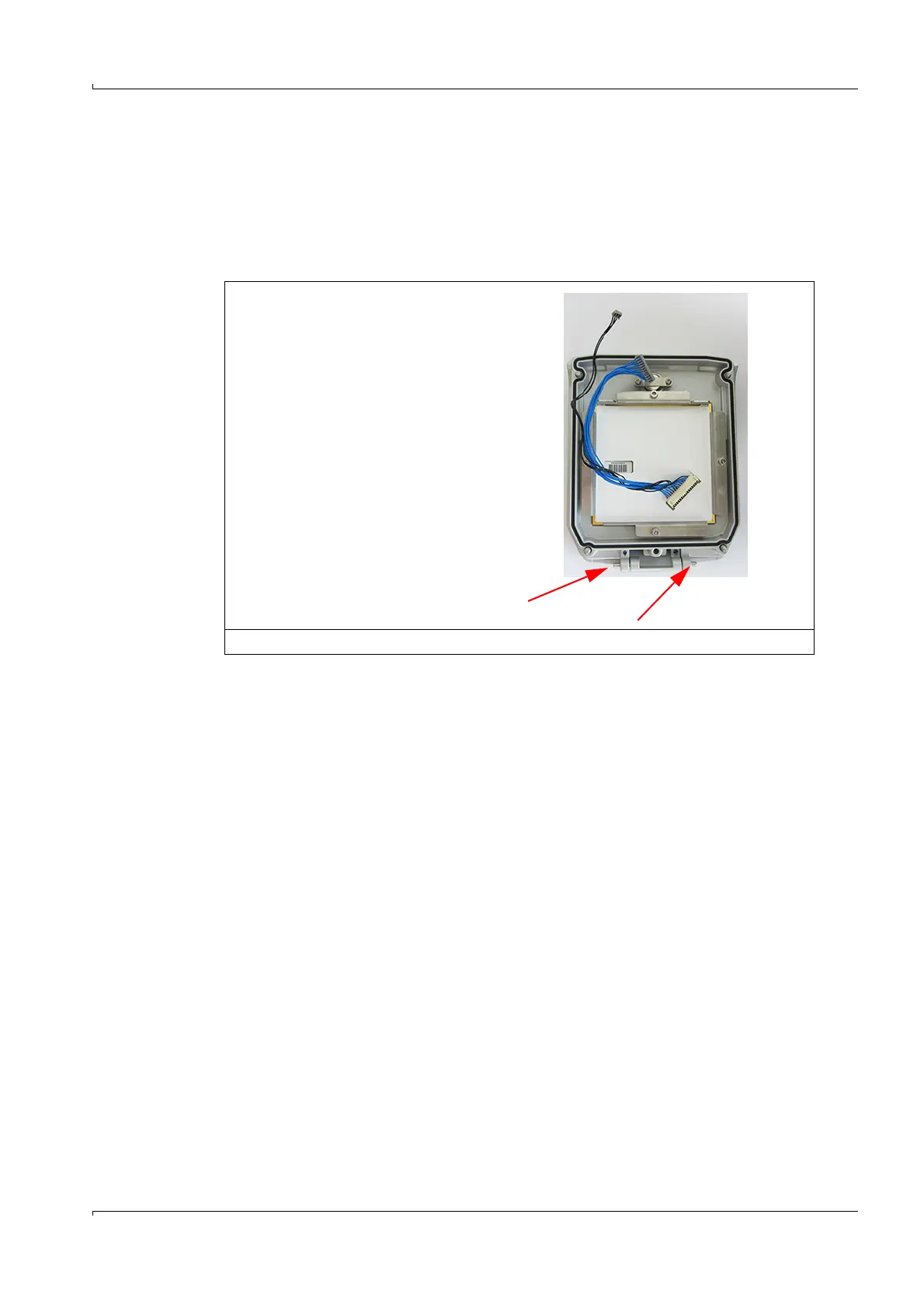

1 Loosen the pins on the display cover.
2 Take the display cover out of the
swivel joint.
3 Unpack the new display cover and
check for transport damage. Do not
use the display cover when any dam-
age can be seen.
4 Position the display cover in the
swivel joint.
5 Fix the new display cover with the
pins.
6 Refit the display unit, → p. 33, §3.5.1.3.
