Product description
28 © SICK AG · Division Auto Ident · Germany · Subject to change without notice 8013796/UL20/2010-09-27
Operating Instructions
Laser Measurement Systems of the LMS500 Product Family
Chapter 3
Start the output of measured values for a single scan
Request
<STX>sRN LMDscandata<ETX>
LMS answer
<STX>sRA LMDscandata [contents see section 10.2.4 “Read scan data” on
page 80]<ETX>

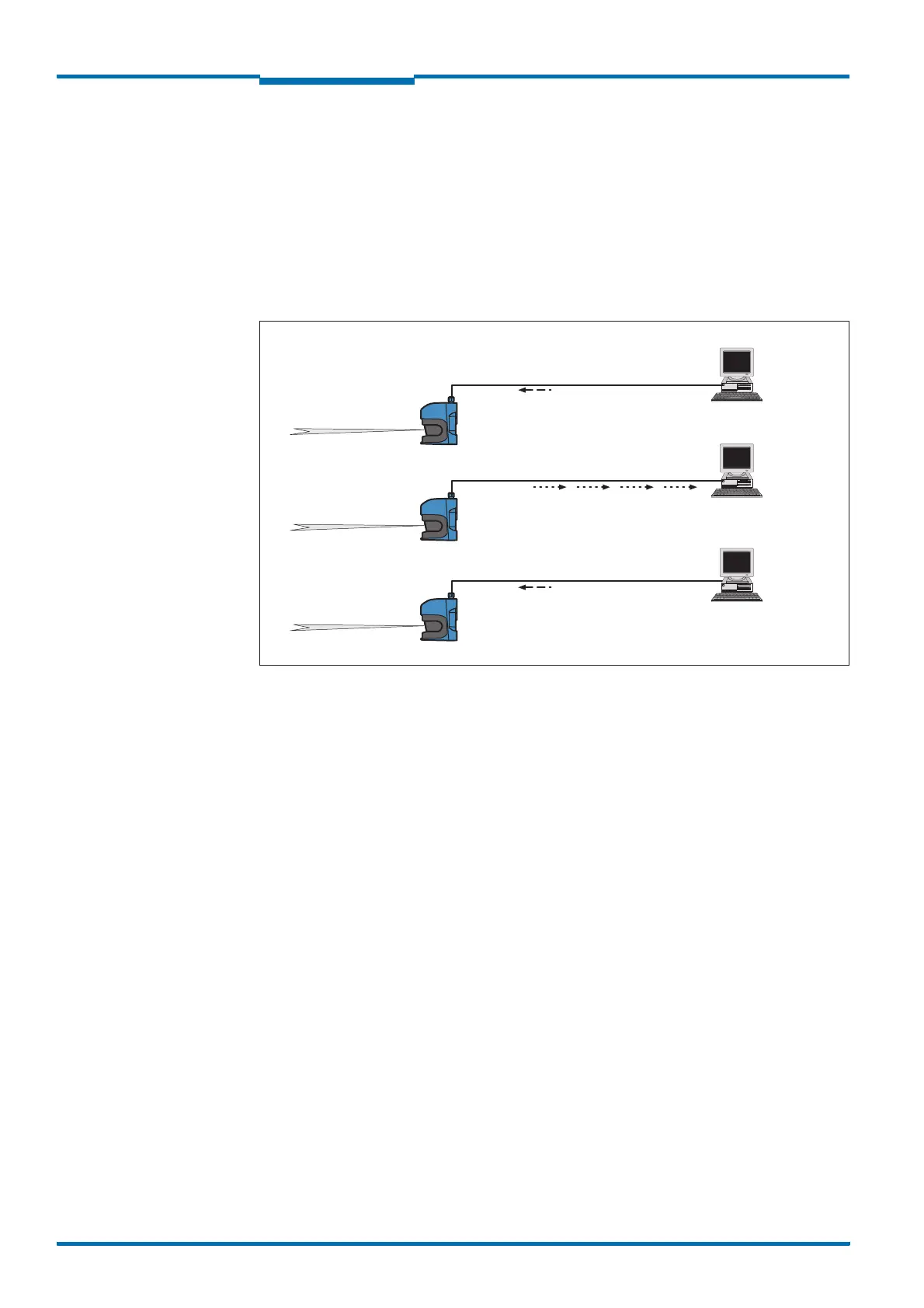

Example of continuous measured value output
Fig. 16: Continuous measured value output
Recommendation If you are not certain that the scan data can be processed at the speed at which they are
output by the LMS, you should only request the scan data for a single scan. The scan
counter in the measured value output can be used as an indication that processing is too
slow (see section 10.2.4 “Read scan data” on page 80).
1. Start measurement
Request
<STX>sMN LMCstartmeas<ETX>
LMS answer
<STX>sAN LMCstartmeas 0<ETX>
2. Query measuring status
You must query the status until status 7 (that is ready to measure) is achieved in the
reply.
Request
<STX>sRN STlms<ETX>
LMS answer
<STX>sRA STlms 7 0 8 00:00:00 8 01.0 1.06 0 0 0<ETX>
If the status is less than 7, you must send the request again.
3. Start continuous measured value output
The scan data are output until measured value output is ended.
Request
<STX>sEN LMDscandata 1<ETX>
Output of the measured value messages
Measured value request
Stop the output
