Mounting
44 © SICK AG · Division Auto Ident · Germany · Subject to change without notice 8013796/UL20/2010-09-27
Operating Instructions
Laser Measurement Systems of the LMS500 Product Family
Chapter 4
4.3.5 Mounting the LMS500/511 with weather protection hood
To protect the LMS500/511 from glare, precipitation and direct sunlight when used
outside, a weather protection hood is available.
The weather protection hood can be mounted on the LMS500/511 in two different
p
ositions depending on the orientation of the scanner.
Y
ou will find detailed dimensions in section 9.2.4 “Dimensional drawings, weather
protection hoods” on page 75.

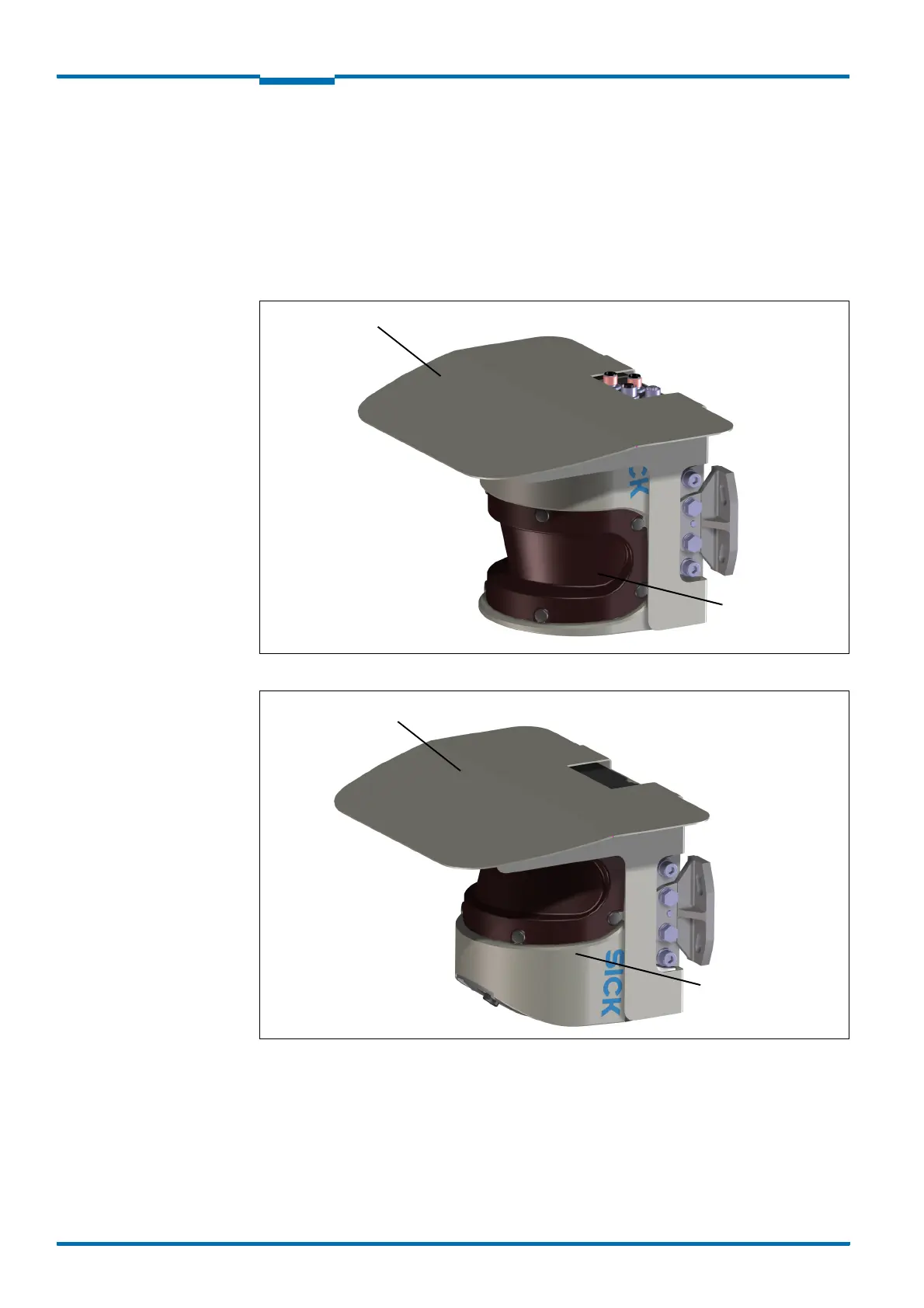

Fig. 26: Weather protection hood, upright orientation of the scanner
Fig. 27: Weather protection hood, upside down orientation of the scanner
Weather protection hood
LMS500/
LMS511
Weather protection hood
LMS500/
LMS511
