SICK LMS500 Series

Technical specifications
74 © SICK AG · Division Auto Ident · Germany · Subject to change without notice 8013796/UL20/2010-09-27
Operating Instructions
Laser Measurement Systems of the LMS500 Product Family
Chapter 9

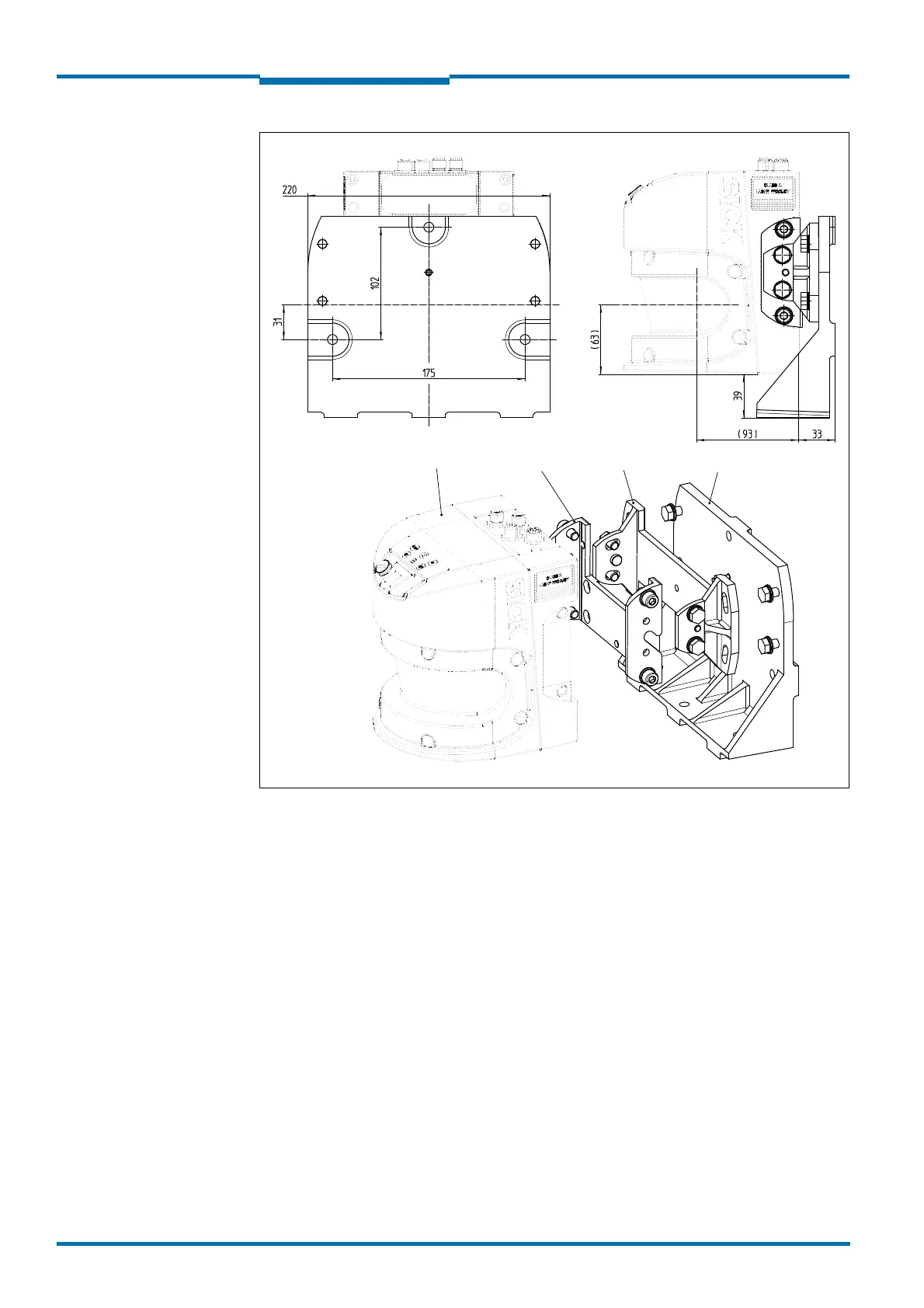

Fig. 51: Dimensional drawing, mounting kit 3
Scanner Mounting kit 1 Mounting kit 2 Mounting kit 3
