Operating Instructions
LMS500 Product Family
Technical specifications
8013796/UL20/2010-09-27 © SICK AG · Division Auto Ident · Germany · Subject to change without notice 71
Chapter 9

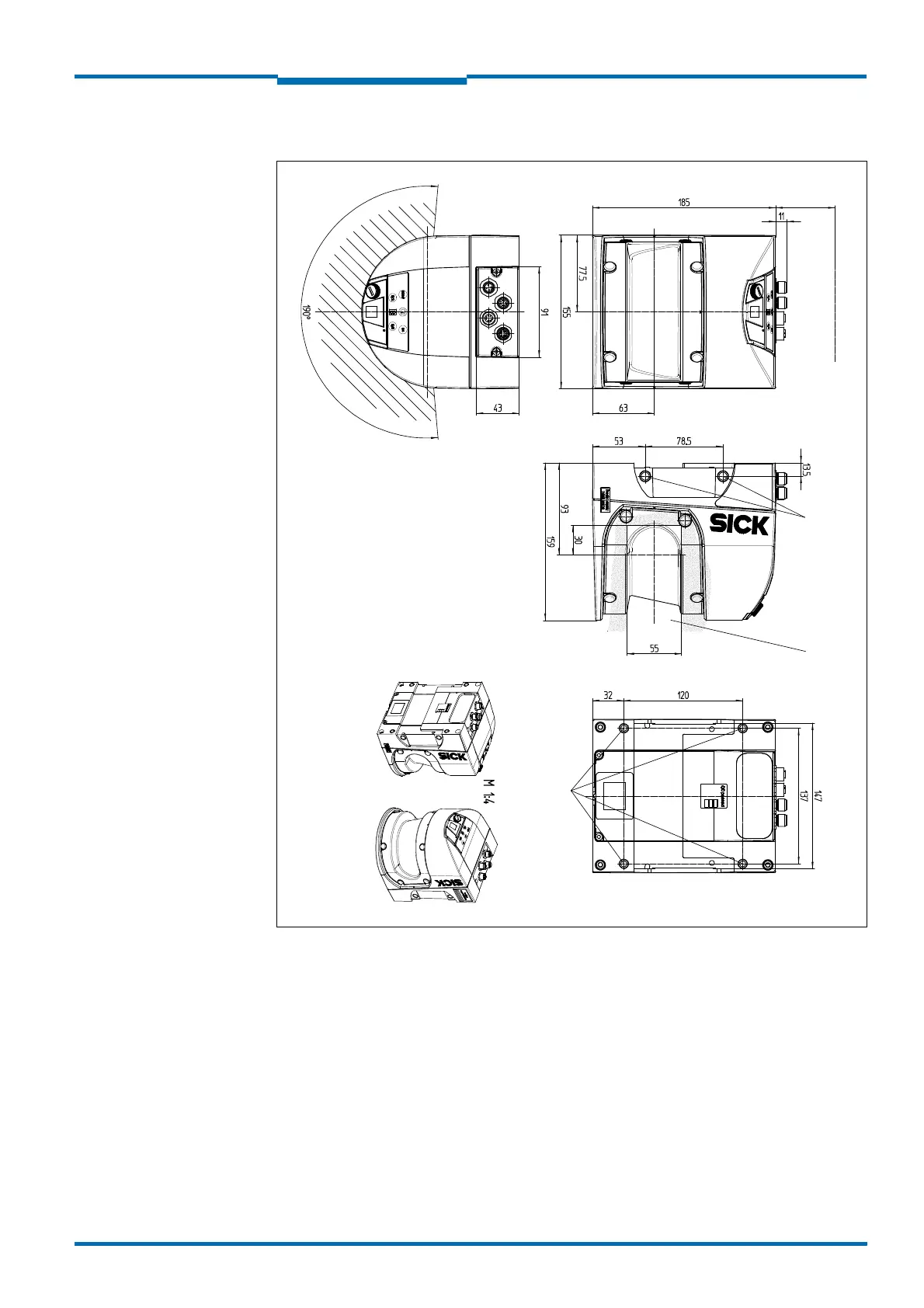

9.2.2 Dimensional drawing LMS511
Fig. 48: Dimensional drawing LMS511 (mm)
Connector range ca. 80
4 × fastening
thread holes M8×9
4 × fastening
thread holes M6×8
Area to keep clear
when mounting the
sensor
