Technical specifications
70 © SICK AG · Division Auto Ident · Germany · Subject to change without notice 8013796/UL20/2010-09-27
Operating Instructions
Laser Measurement Systems of the LMS500 Product Family
Chapter 9
9.2 Dimensional drawings
9.2.1 Dimensional drawing LMS500

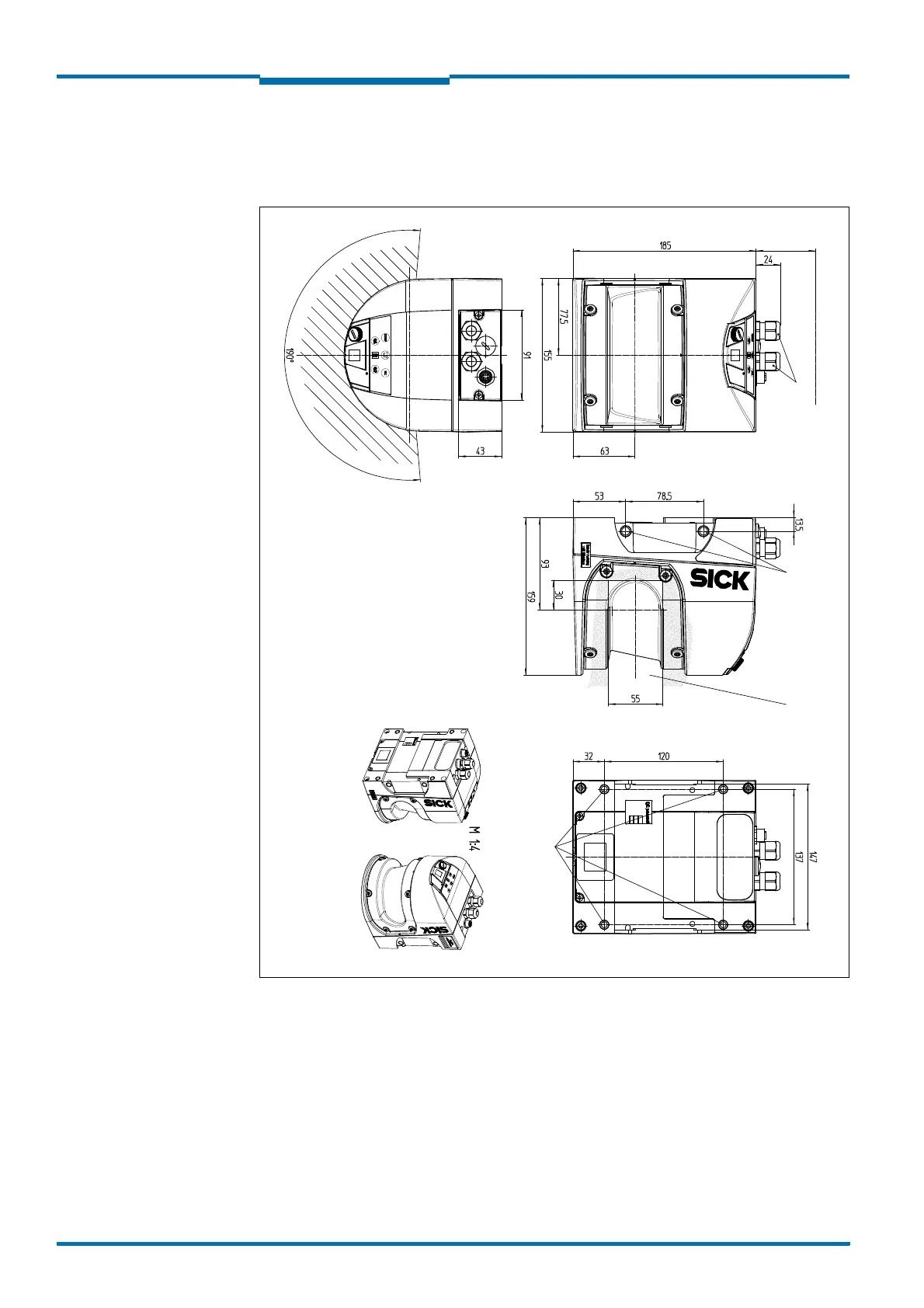

Fig. 47: Dimensional drawing LMS500 (mm)
Connector range ca. 80
2 × cable gland for
cables 5-12 mm
4 × fastening
thread holes M8×9
4 × fastening
thread holes M6×8
Area to keep clear
when mounting the
sensor
