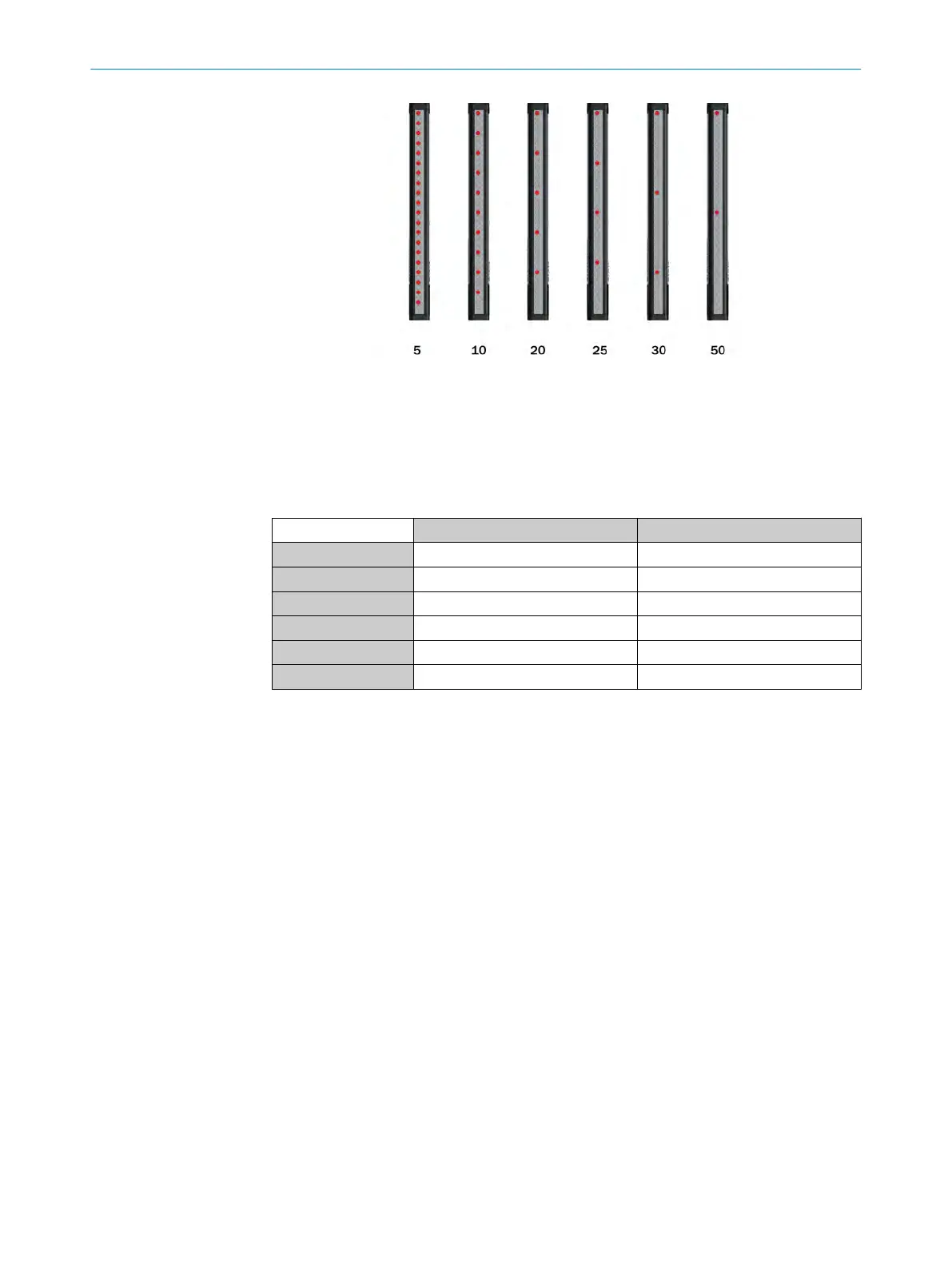

Figure 5: Schematic representation of available beam separations (mm)
Maximum and minimum detection height
The number of LEDs is limited to 510. This results in different maximum detection
heights depending on the beam separation. The minimum detection height is deter‐
mined by the beam separation and the smallest module size for this beam separation.
Table 9: Maximum detection heights
Beam separation Maximum detection height Minimum detection height
5 mm 2,545 mm 145 mm
10 mm 3,140 mm 140 mm
20 mm 3,130 mm 130 mm
25 mm 3,125 mm 275 mm
30 mm 3,120 mm 270 mm
50 mm 3,100 mm 250 mm
3.4.5 Teach-in
During the teach-in process, the switching thresholds for all beams are individually
adjus
ted for the sensing range and the ambient conditions.
After teach-in has been completed, it must be ensured that the setup is no longer
changed otherwise another teach-in will have to be carried out.
3.4.5.1 Teach-in of the MLG-2 Prime
The MLG-2 Prime provides the following options for carrying out a teach-in:
•
Pre
ssing the teach-in button
•
Signal at a digital input
•
IO-Link
3.4.6 Beam blanking
Individual beams can be blanked.
3 P
RODUCT DESCRIPTION
16
O P E R A T I N G I N S T R U C T I O N S | MLG-2 Prime 8018715.16YM / 2020-02-13 | SICK
Subject to change without notice
