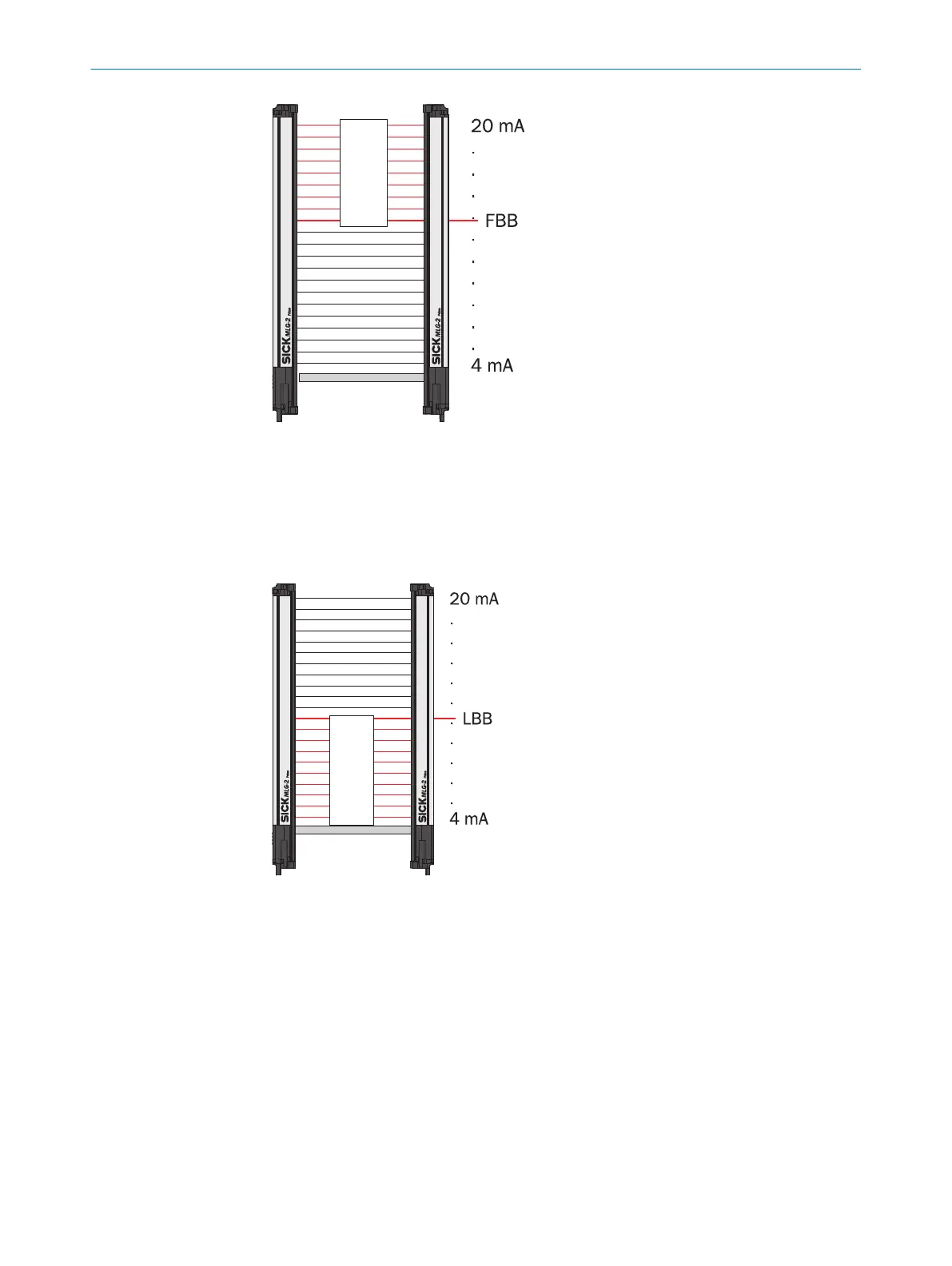

Figure 42: Example for FBB
The hi
gher the beam number of the first beam blocked, the higher the output current.
LBB – Last Beam Blocked
The analo
g output changes its output current with the beam number of the last beam
blocked.
Figure 43: Example for LBB
The hi
gher the beam number of the last beam blocked, the higher the output current.
NBB – Number of Beams Blocked
The analo
g output changes its output current with the total number of beams blocked.
