SICK MLG-2 Prime

7.1.4 System settings on operating level 2
Factory setting,
s
ystem must be
reconfigured
Beam blanking active
A
lignment aid
active
Cross-beam function
active
Leve
l 2 active
Cross-beam function
not active
Beam blanking not
active
A
lignment aid not
active

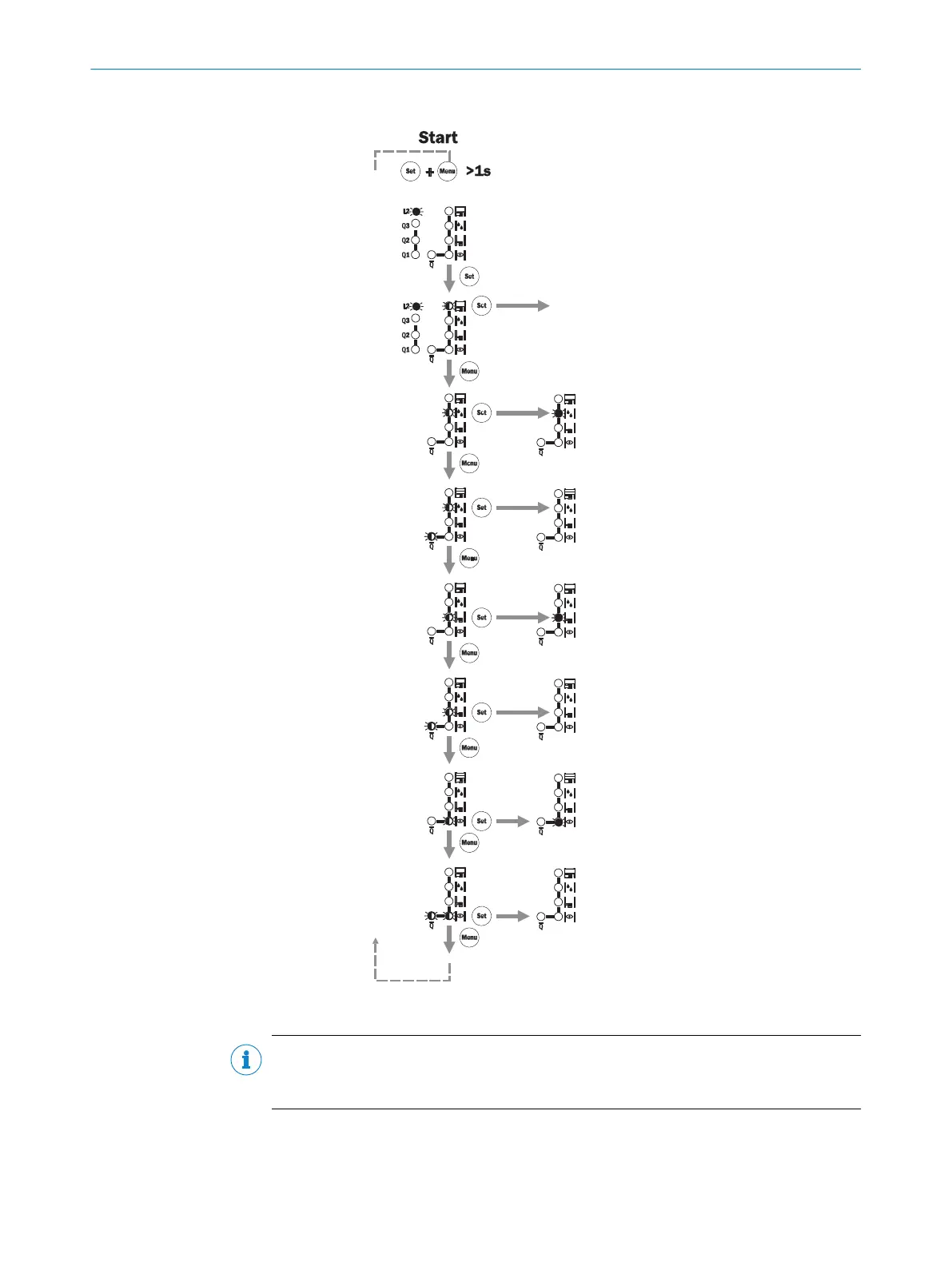

Figure 38: Graph, system settings on operating level 2
NOTE
When t
he alignment aid is activated, all switching outputs and analog outputs are
“frozen” and the process data becomes invalid.
