12.3 Dimensional drawings
12.3.1 MLG-2 Prime dimensional drawing
216,2
34
15
30,6
34
15
16,1
216,2
M12, 5-polig
M12, 5-polig
30,6

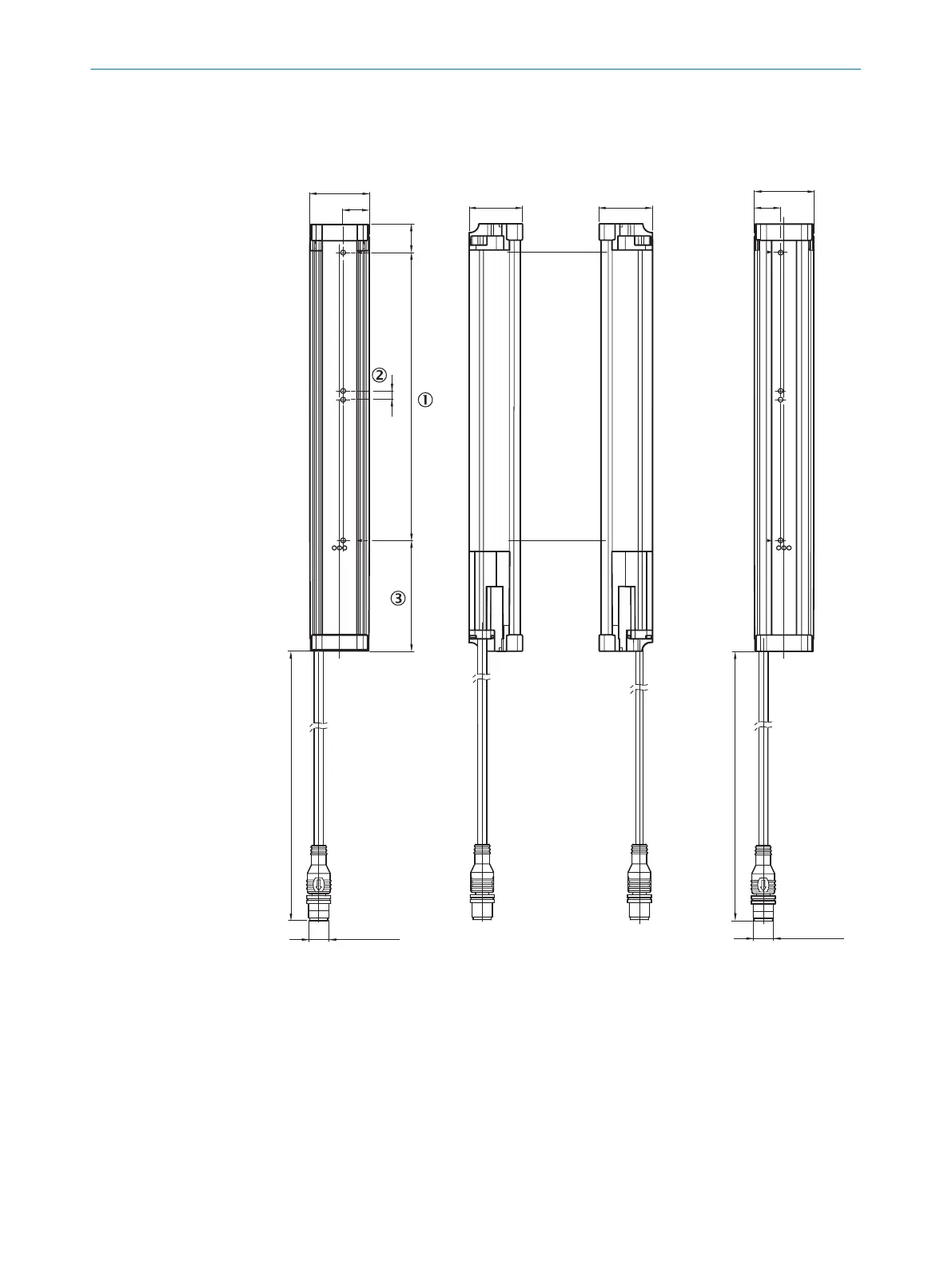

Figure 46: MLG-2 Prime (mm) dimensional drawing
1
Monitoring height
4)
= (n × S
A) – 1 SA
2
Beam separation (SA)
3
Distance from MLG-2 edge to first beam (see table 32, page 55)
Total height = 1 + 3 + 16.1 mm
4)
See t
ype c
ode.
12 TECHNICAL DATA
54
