4 Mounting
4.1 Scope of delivery
1 × sender
1 × recei
ver
4/4 x QuickFix brackets
1)
1 × Quick Start Guide
4.2 Recommended mounting arrangements
When several MLG-2s are mounted close to one another, there is a risk of mutual inter‐
fer
ence. This is particularly likely if there are shiny surfaces nearby or if the objects
being detected are shiny.
Therefore, when mounting two MLG-2s close to one another, their light beams should
be oriented in opposite directions.
4.2.1 Mounting with light in opposite directions

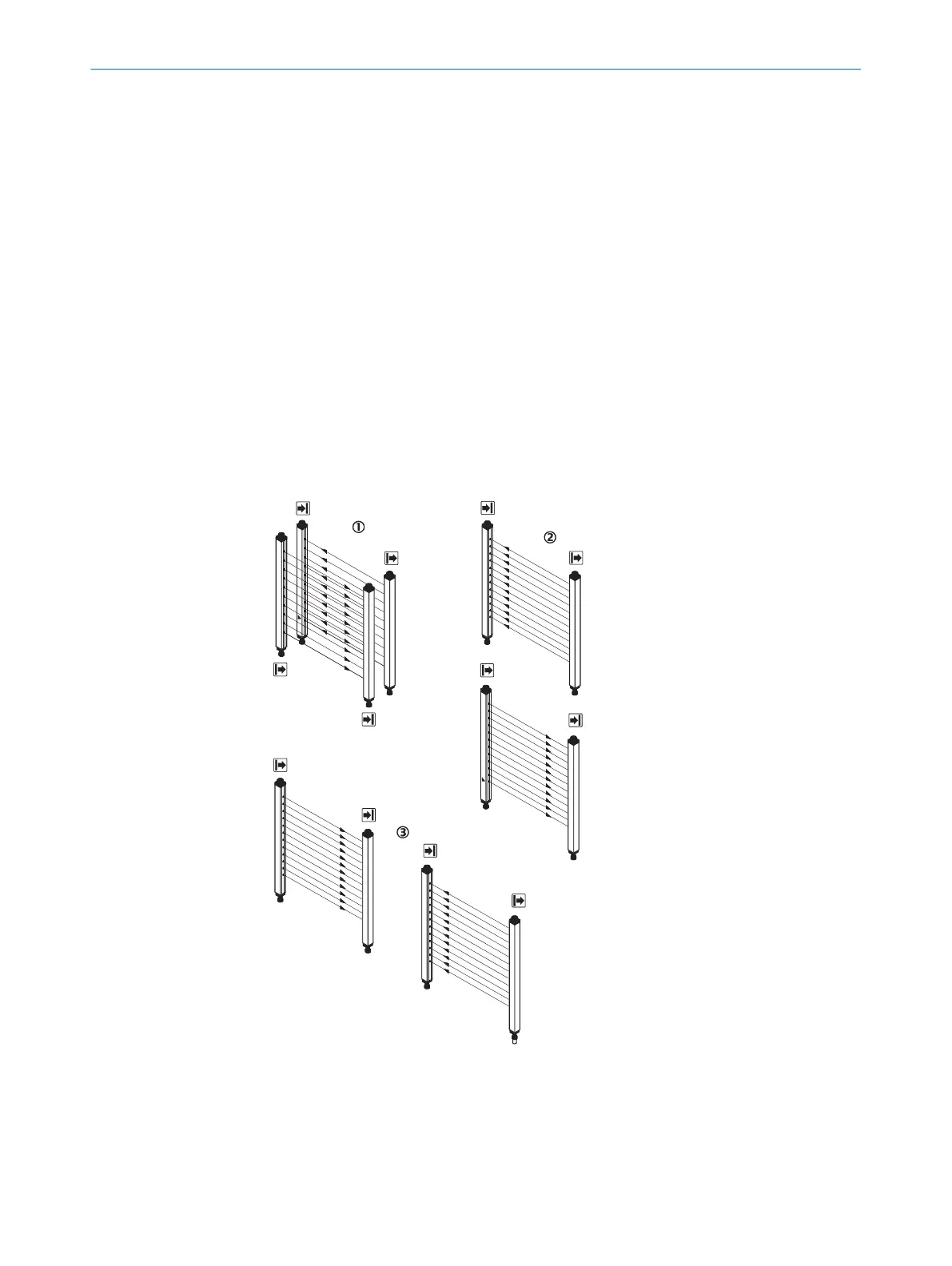

Figure 21: Placement with light in opposite directions
1
Two MLG-2s, one behind the other
2
Two MLG-2s, one above the other
3
Two MLG-2s, one next to the other
1)
6 x Quic
kFix brackets for detection heights above 2 m.
4 MOUNTING
26
O P E R A T I N G I N S T R U C T I O N S | MLG-2 Prime 8018715.16YM / 2020-02-13 | SICK
Subject to change without notice
