Parameter Value Factory setting
Q1 Switch point logic High-active
Low-active
High-active
Q1 Timer mode Off
Switch-on delay
Switch-on/off delay
Switch-off delay
Impulse (one shot)
Off
Q1 Timer setup 1ms ... 30,000ms 1ms
Q1 Hysteresis 0mm ... 2,147.48mm OD2000-030: 0.1mm
OD2000-050: 0.2mm
OD2000-245: 0.5mm
OD2000-350: 1mm
OD2000-700: 1.5mm
7.4.3.3 Q1 Window (SP1,SP2:Window) menu
Set an upper and a lower switching threshold (two switching points). If the measured
distance is inside (normally open contact: High-active switching point logic) or outside
(normally closed contact: Low-active switching point logic) the switching window, a signal
is output (change of output level).
Minimum 1 Maximum 4
2
1
0
3

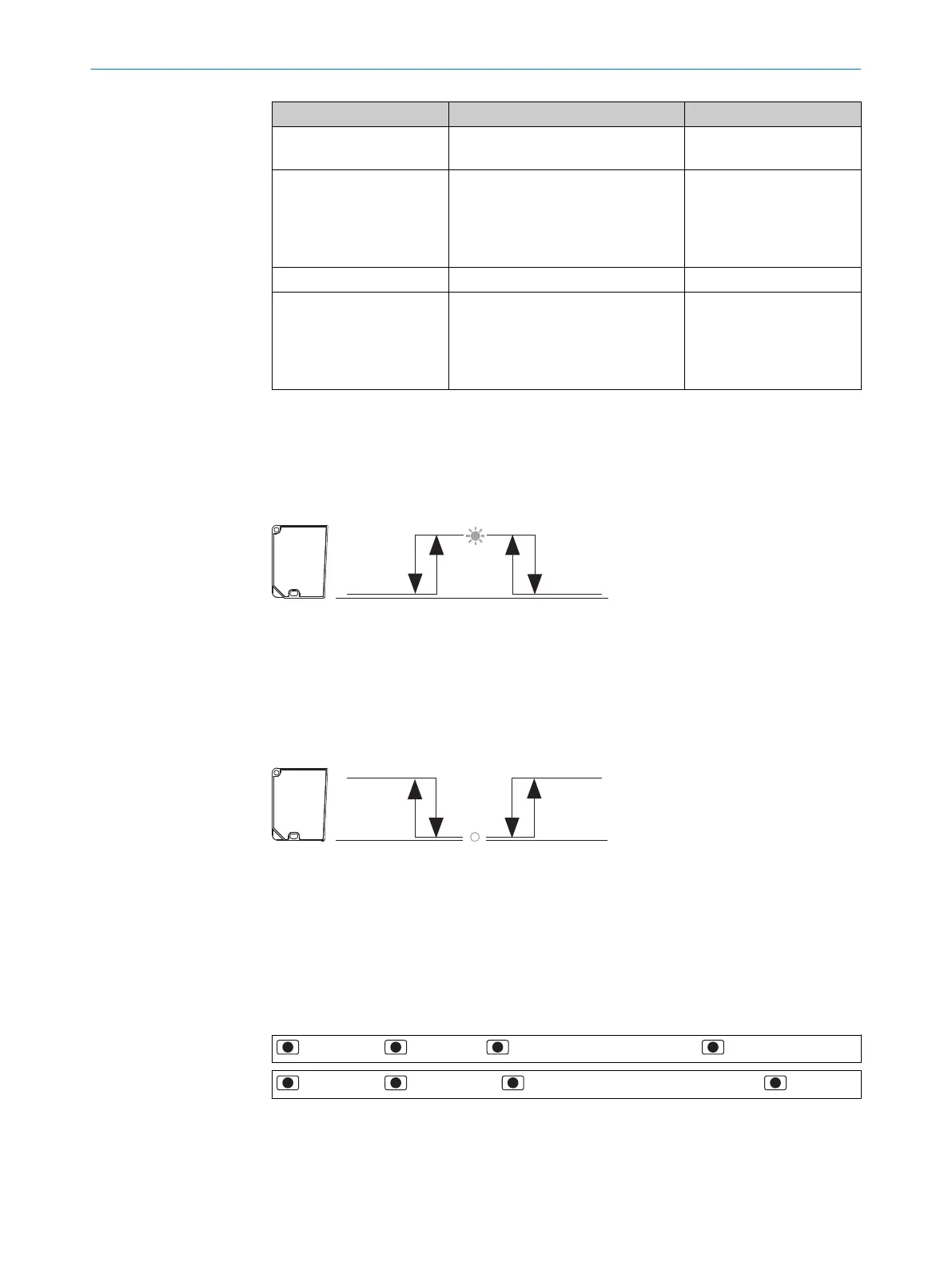

Figure 12: Switching window (N/O contact: High-active, PNP)
1
Minimum
2
Switching point near
3
Switching point far
4
Maximum
Minimum 1 Maximum 4
2
1
0
3
Figure 13: Switching window (N/C contact: Low-active, PNP)
1
Minimum
2
Switching point near
3
Switching point far
4
Maximum
Selecting output mode and setting parameters
> Q1 Output > > Q1 Mode > > Q1 Window (SP1,SP2:Window) >
> Q1 Output > > Parameter > > Select option, teach-in or set value >
OPERATION 7
8026231/1I18/2023-01-05 | SICK O P E R A T I N G I N S T R U C T I O N S | OD2000
33
Subject to change without notice
