3.6 Menu-based operation
3UG4 / 3RR2 monitoring relays
40 Manual, 05/2016, NEB927043002000/RS-AC/004

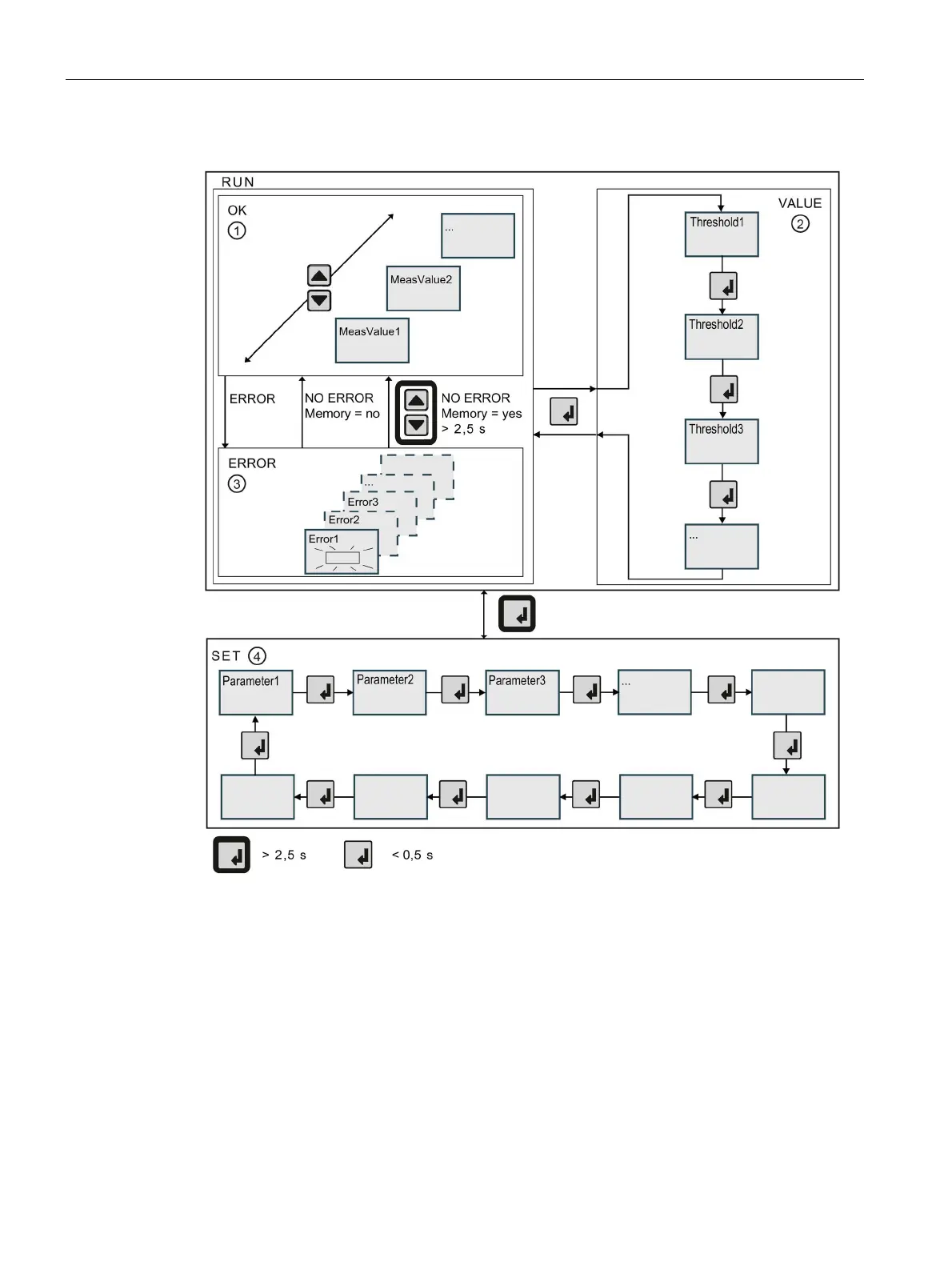

Status display in the correct range, see below
• Measured value1 /
Measured value2 / ...
Settings of the monitored thresholds, see below
Status display in the event of a fault
If a threshold is overshot or undershot, the outputs of the
monitoring relays switch over after the set delay time. The display
indicates the type of error.
• Error1 /Error2 / ...
Error detected
Settings for basic device parameters, see below
