Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
101

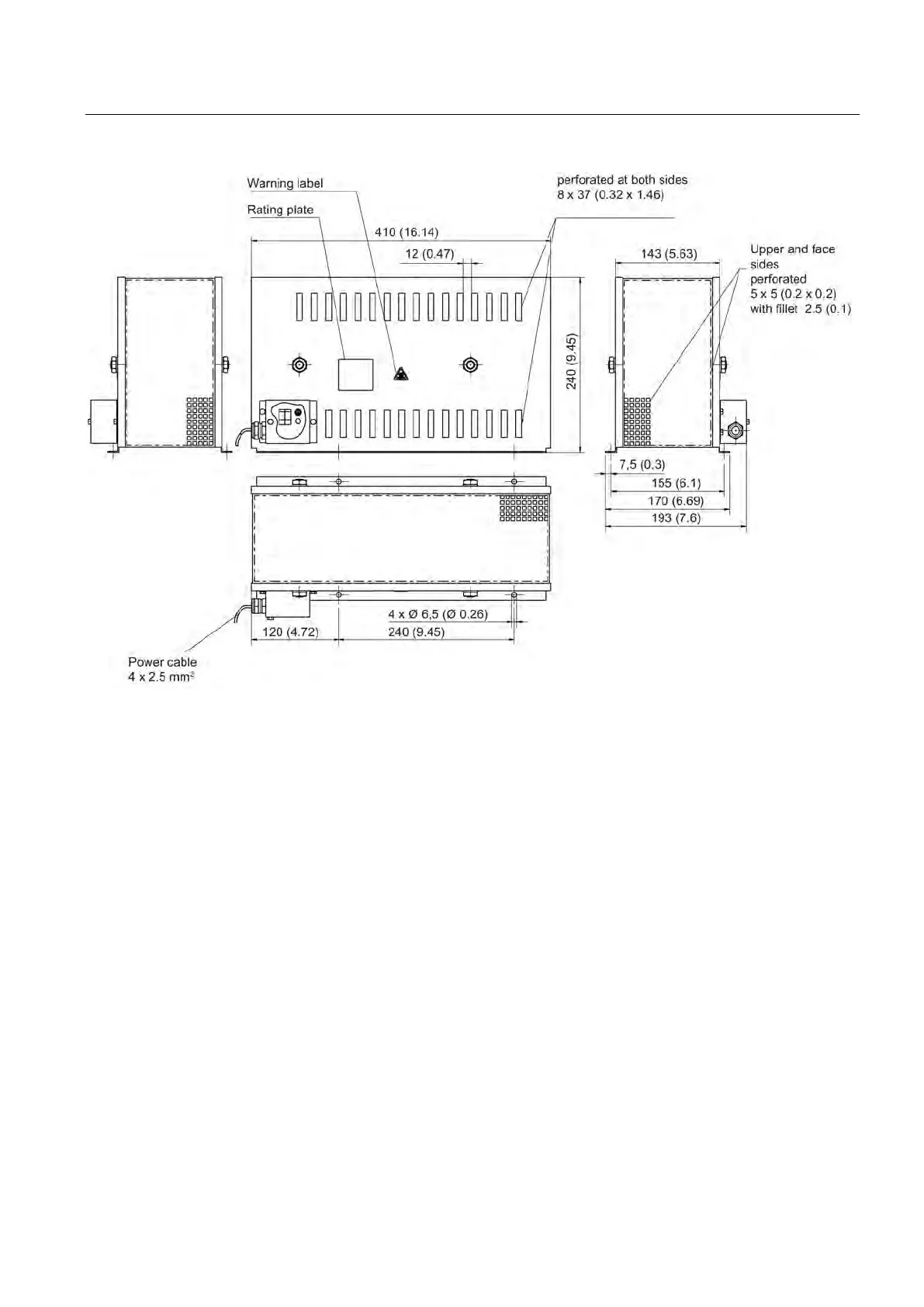

Figure 3-37 1500 W damping resistor for HFD line reactors, all dimensions in mm and (inches)
