Line Modules Booksize Compact
5.1 Smart Line Modules Booksize Compact
Booksize Power Units
356 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

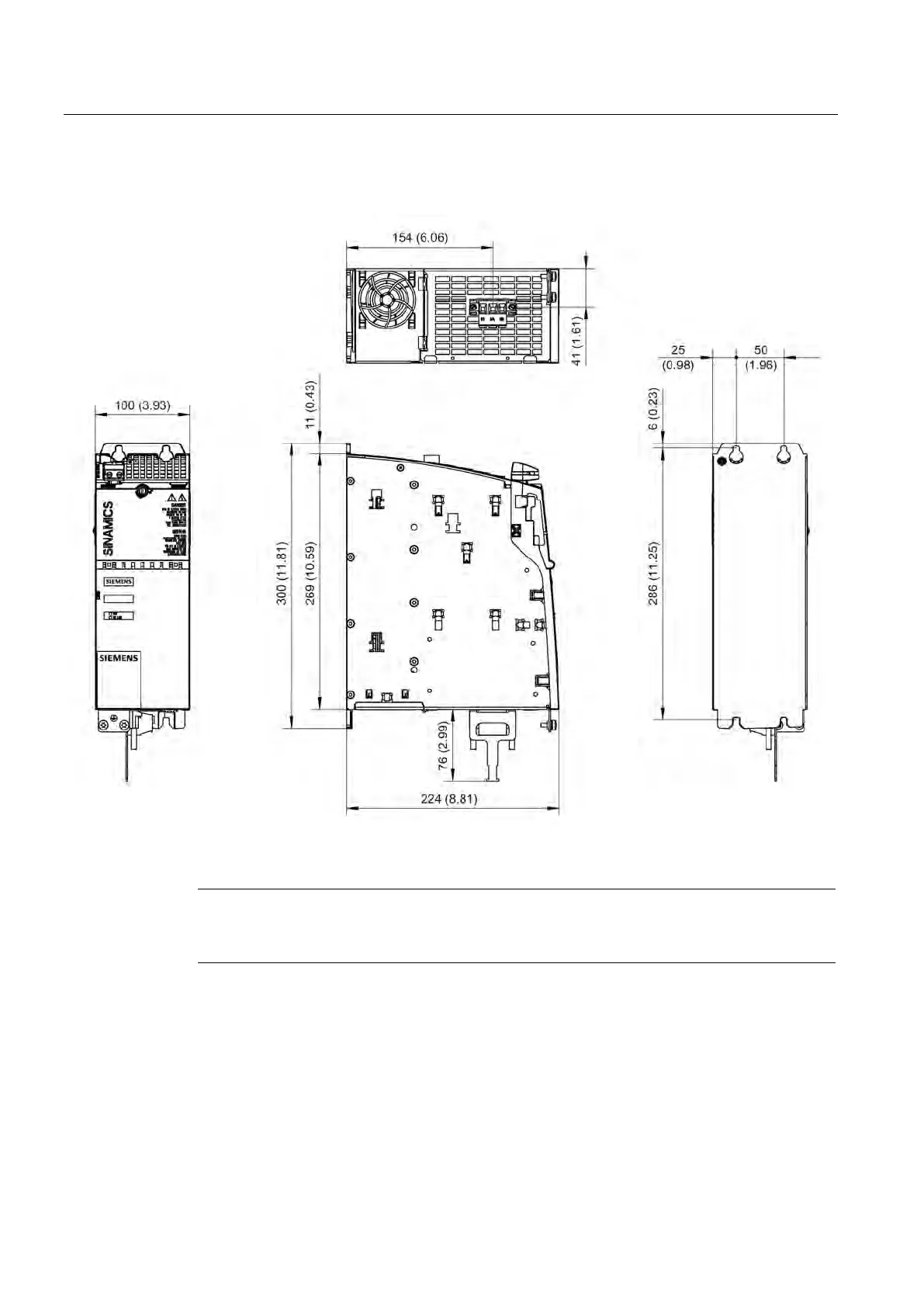

Figure 5-3 Dimension drawing Smart Line Module Booksize Compact format (16 kW), all dimensions in mm and (inches)
Note
The shield connecting plate is part of the scop
e of delivery of the Smart Line Modules
