Siemens 6SL3120-2TE21-0AA3

Motor Modules Booksize
6.2 Motor Modules with internal air cooling
Booksize Power Units
376 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
6.2.3
Connection examples

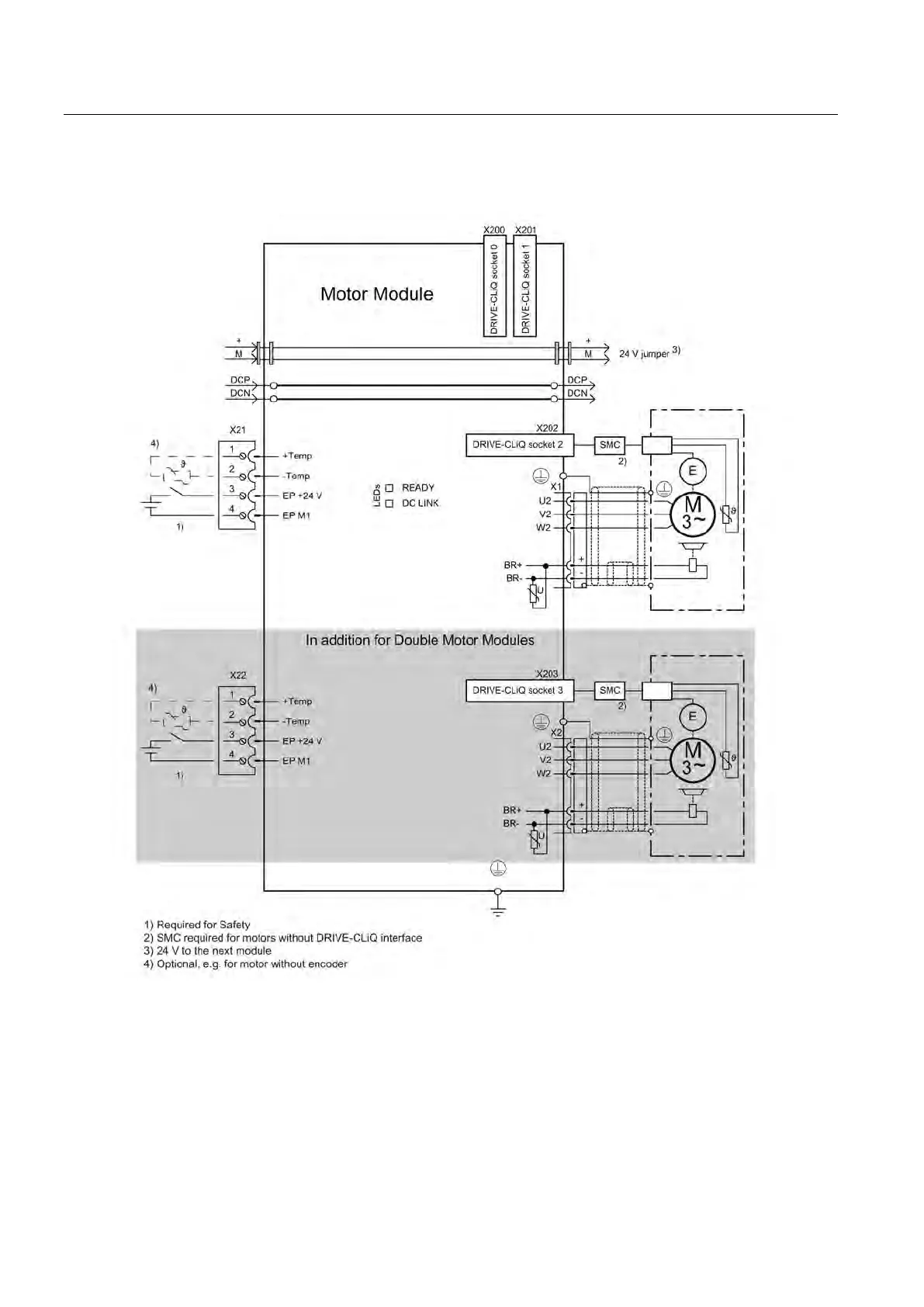

Figure 6-3 Connection example of Motor Modules 3 A to 30 A and Double Motor Modules 3 A to 18 A
