Line connection and line-side power components
3.7 Line filters
Booksize Power Units
64 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Line/load connection
Table 3- 5 Line and load connection, Basic Line Filter for Active Line Modules
6SL3000-0BE21-
6DAx
6SL3000-0BE23-
6DA1
6SL3000-0BE25-
5DAx
6SL3000-0BE28-
0DAx
6SL3000-0BE31-
2DAx
Rated power [kW]
16
36
55
80
120
Line supply
connection
L1, L2, L3
Screw terminals:
10 mm
2
3 pole
1.5 ... 1.8 Nm
Screw terminals:
35 mm
2
, 3 pole
3.2 ... 3.7 Nm
Screw terminals:
50 mm
2
, 3 pole
6 ... 8 Nm
Screw terminals: 95 mm
2
, 3-pole
15 ... 20 Nm
Load connection
L1´, L2´, L3´,
PE connection
1)
Terminal studs
M6 / 6 Nm
Terminal studs
M6 / 6 Nm
Terminal studs
M8 / 8 Nm
Terminal studs M10 / 10 Nm
1)
For ring cable lugs without insulation
3.7.3.3
Dimension drawings

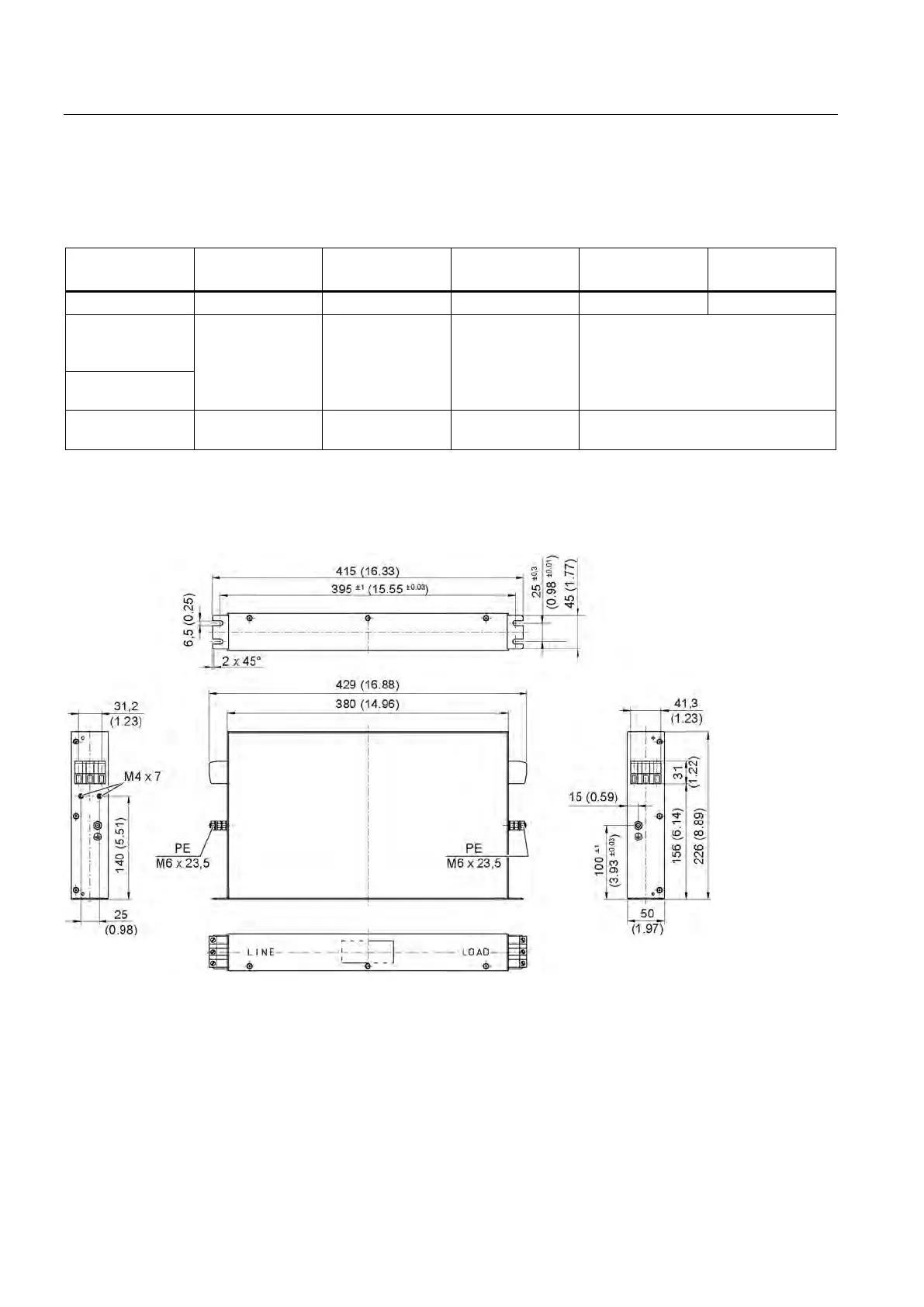

Figure 3-6 Dimension drawing of the Basic Line Filter for Active Line Modules 16 kW, all data in mm and (inches)
