Motor Modules Booksize
6.4 Motor Modules with cold plate
Booksize Power Units
460 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Characteristics

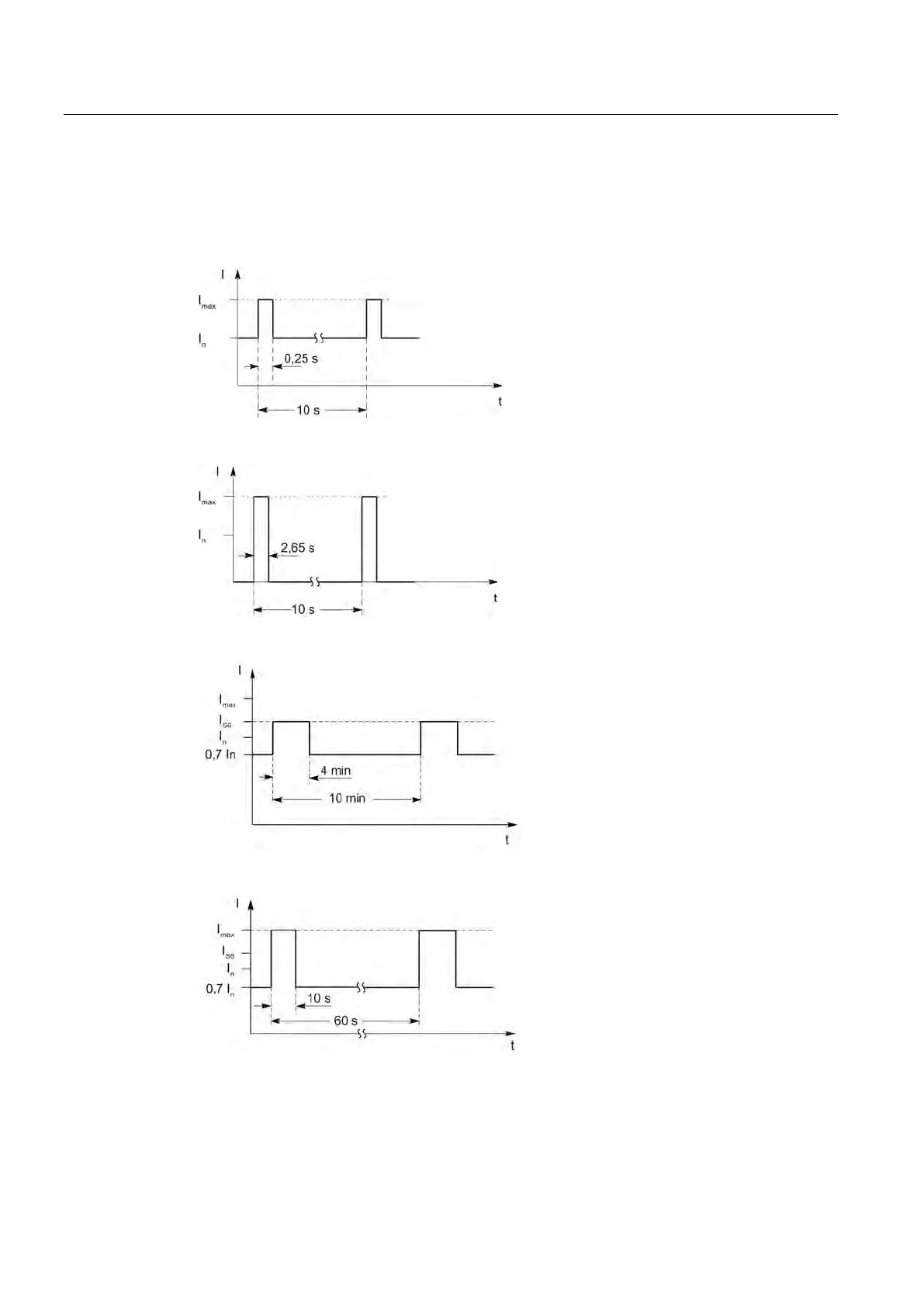

Rated duty cycles Motor Modules Booksize
Figure 6-80 Duty cycle with initial load (for servo drives)
Figure 6-81 Duty cycle without initial load (for servo drives)
Figure 6-82 S6 duty cycle with initial load with a duty cycle duration of 600 s (for servo drives)
Figure 6-83 S6 duty cycle with initial load with a duty cycle duration of 60 s (for servo drives)
