Siemens 6SL3120-2TE21-0AA3

Line Modules Booksize
4.8 Smart Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
279
4.8.3.2
X1 line connection

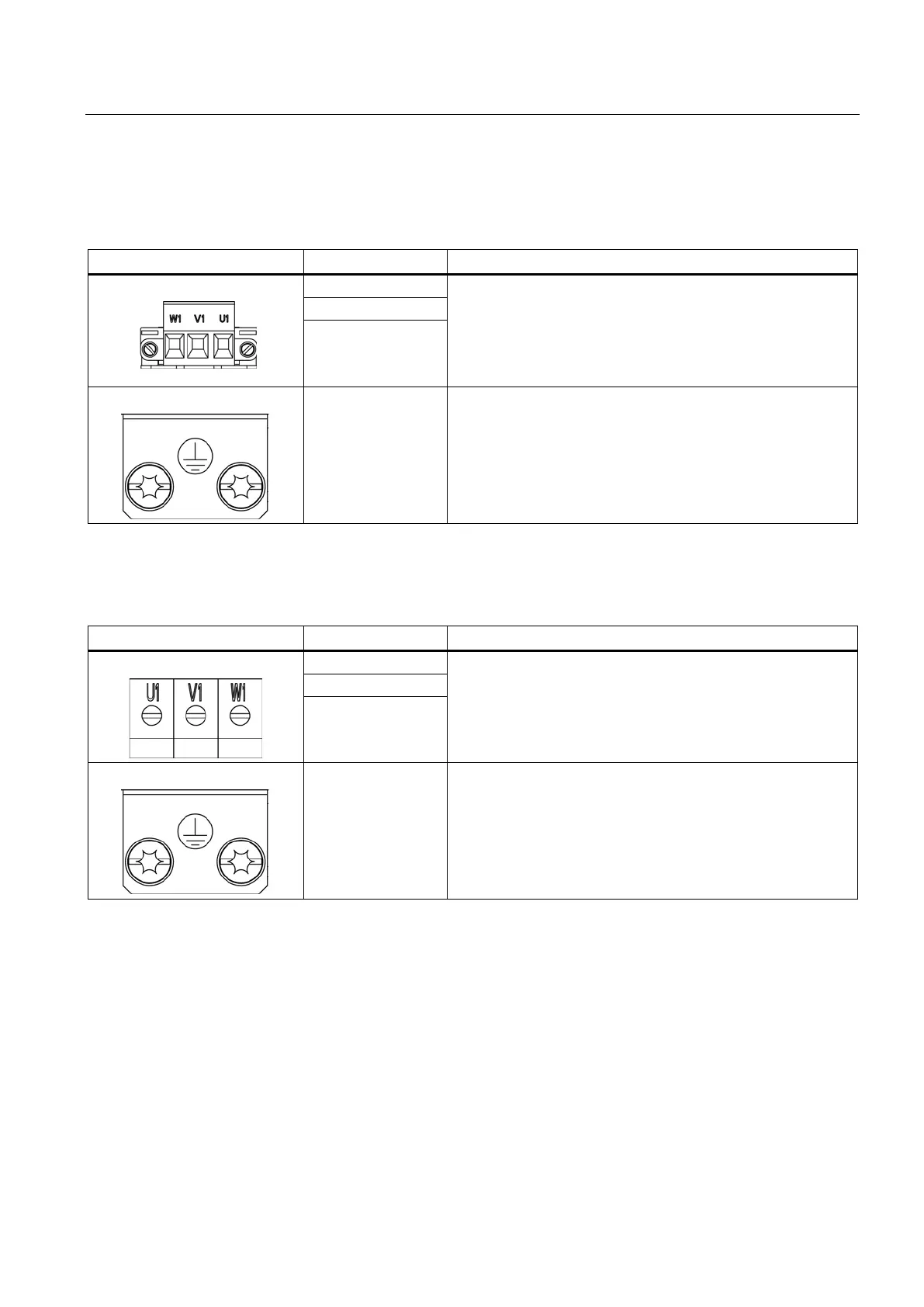

Table 4- 63 X1: Line connection for Smart Line Modules 5 kW and 10 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Type: Screw terminal 5 (Page 755)
Max. cross-section that can be connected: 6 mm
2
Tightening torque: 1.2 … 1.5 Nm
V1
W1
PE connection Threaded hole M5 / 3 Nm
1
1)
For ring cable lugs without insulation
Table 4- 64 X1: Line supply connection for Smart Line Modules 16 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Type: Screw terminal 6 (Page 755)
Max. cross-section that can be connected: 10 mm
2
Tightening torque: 1.5 … 1.8 Nm
V1
W1
PE connection Threaded hole M5 / 3 Nm
1
1)
For ring cable lugs without insulation
