Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
83
Line/load connection
Table 3- 11 Line and load connection, Basic Line Filter for Smart Line Modules
6SL3000-0HE15-
0AAx
6SL3000-0HE21-
0AAx
6SL3000-0BE21-
6DAx
6SL3000-0BE23-
6DA1
6SL3000-0BE25-
5DAx
Rated power [kW]
5
10
16
36
55
Line supply
connection
L1, L2, L3
Screw terminals
10 mm
2
, 3 pole
1.2 ... 1.5 Nm
Screw terminals
35 mm
2
, 3 pole
3.2 ... 3.7 Nm
Screw terminals
50 mm
2
, 3 pole
6 ... 8 Nm
Load connection
L1´, L2´, L3´
PE connection
1)
Terminal studs M6 / 6 Nm Terminal studs
M6 / 6 Nm
Terminal studs
M8 / 8 Nm
1)
For ring cable lugs without insulation
3.7.6.3
Dimension drawings

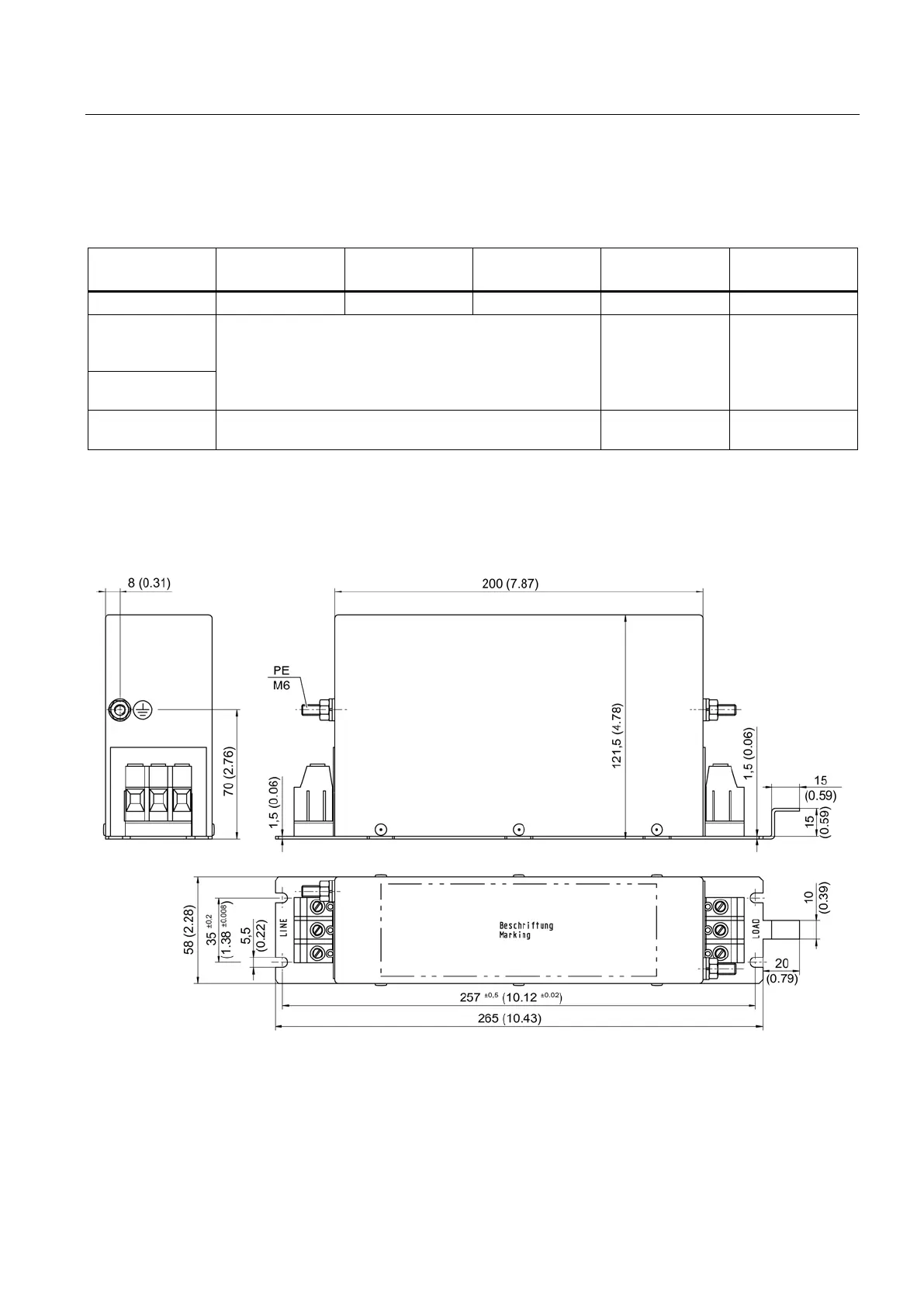

Figure 3-21 Dimension drawing of Basic Line Filter for 5 kW and 10 kW Smart Line Modules, all dimensions in mm and
(inches)
