Line connection and line-side power components
3.7 Line filters
Booksize Power Units
84 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

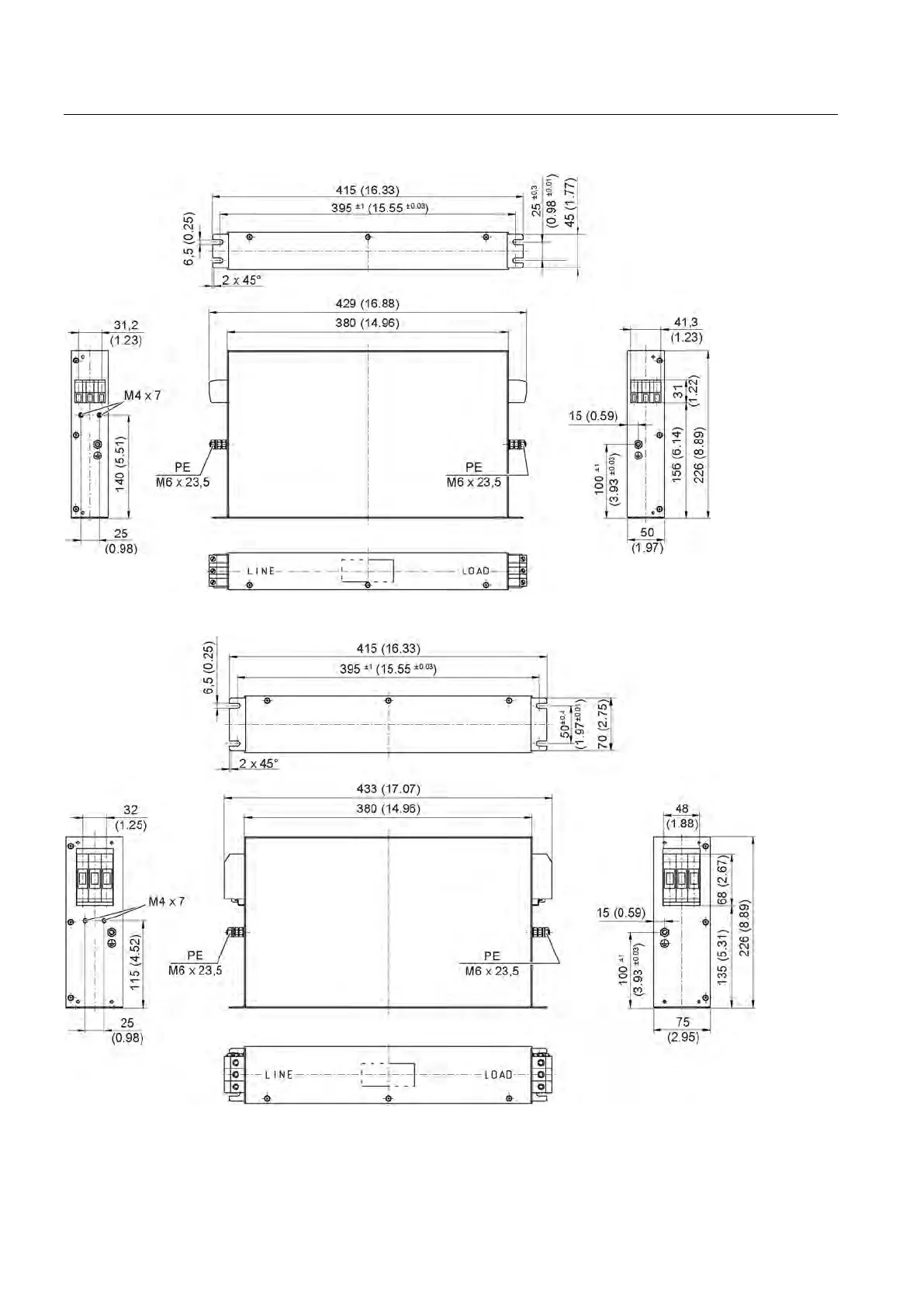

Figure 3-22 Dimension drawing of Basic Line Filter for Smart Line Modules 16 kW, all data in mm and (inches)
Figure 3-23 Dimension drawing of Basic Line Filter for Smart Line Modules 36 kW, all data in mm and (inches)
