Line connection and line-side power components
3.11 Line connection variants
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
139
Operating line connection components on the line supply
The SINAMICS S Booksize converter system is rated for direct operation on TN, TT, and IT
line supply systems with a rated voltage of 380 V 3 AC to 480 V 3 AC.

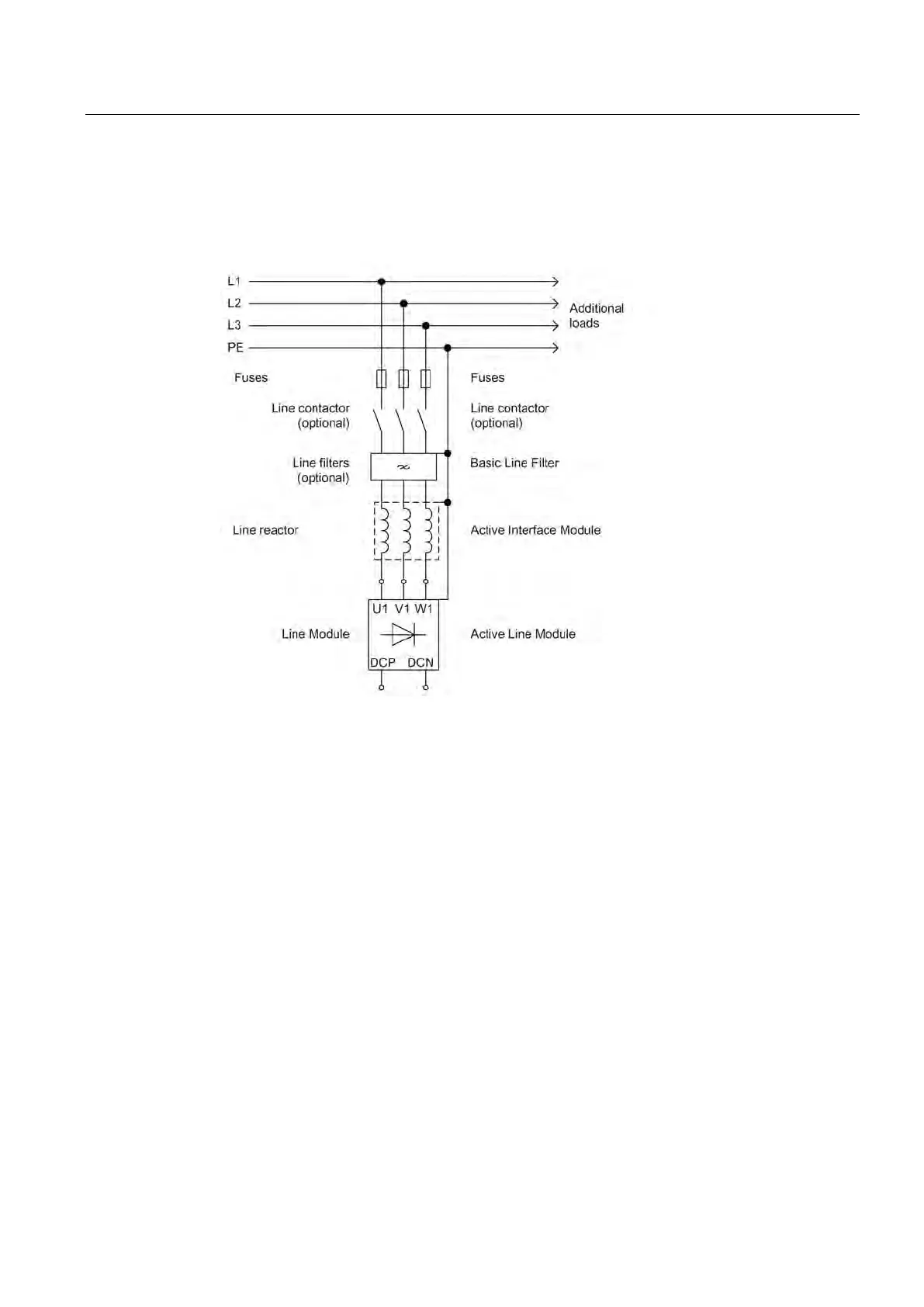

Figure 3-65 Direct operation on the line supply
