Siemens 6SL3120-2TE21-0AA3 User Manual

Motor Modules Booksize
6.5 Motor Modules Liquid Cooled
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
477
6.5.2.4
X200-X202 DRIVE-CLiQ interface
Table 6- 50 X200-X202: DRIVE-CLiQ interfaces
Pin
Name
Technical data
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4
Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+ (24 V)
Power supply
B
M (0 V)
Electronics ground
The blanking covers for the DRIVE
-CLiQ interfaces are included in the scope of delivery.
Blanking cover (50 pcs.) Order number: 6SL3066-4CA00-0AA0
6.5.3
Connection example

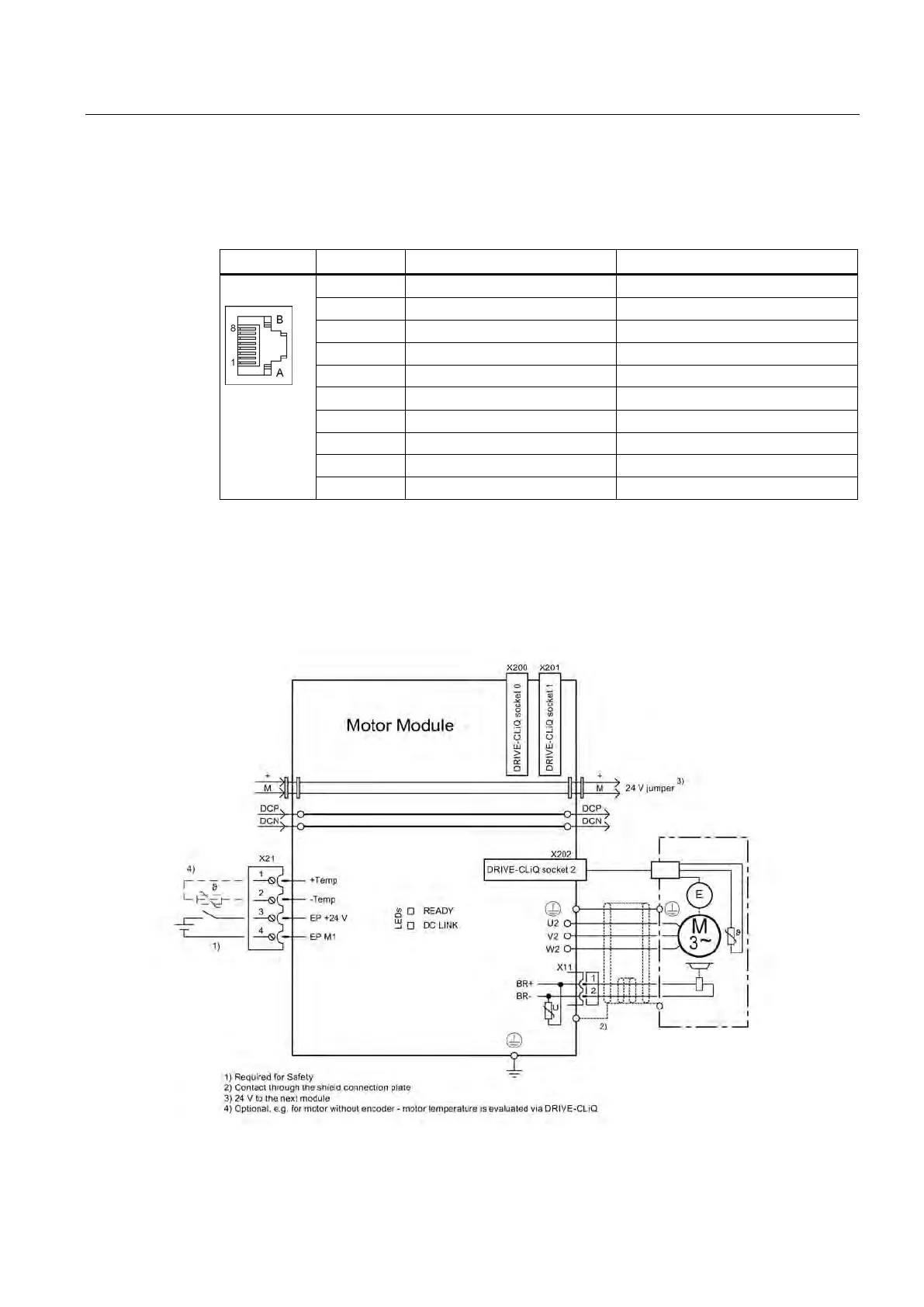

Figure 6-103 Connection example for Motor Module Liquid Cooled (200 A)
