Line Modules Booksize
4.3 Active Line Modules with external air cooling
Booksize Power Units
182 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

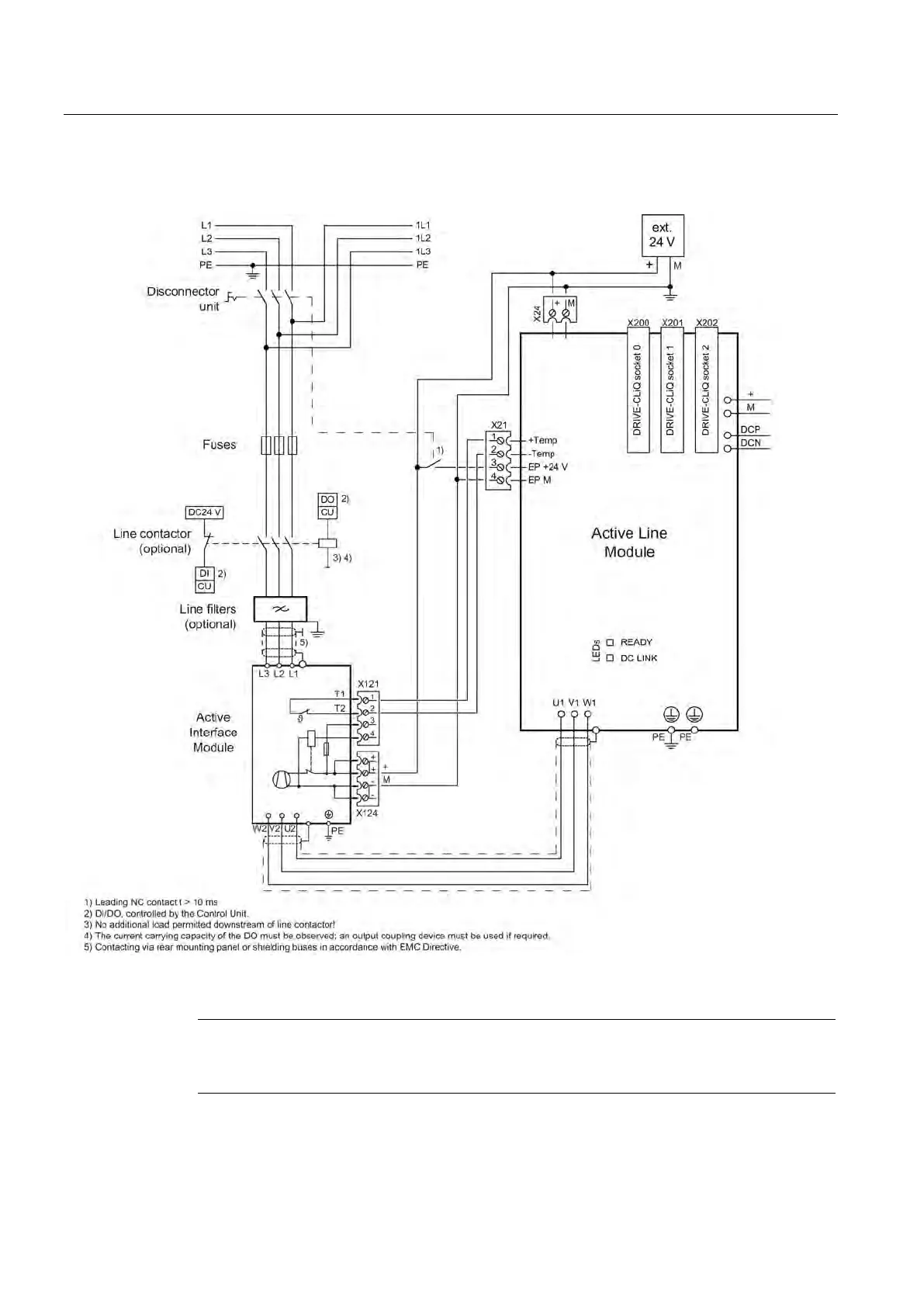

Figure 4-15 Example connection of Active Line Module
Note
If you are using a VSM10 Voltage Sensing Module, the leading opening contact can be
omitted.
