Line Modules Booksize
4.3 Active Line Modules with external air cooling
Booksize Power Units
184 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
4.3.5
Dimension drawings

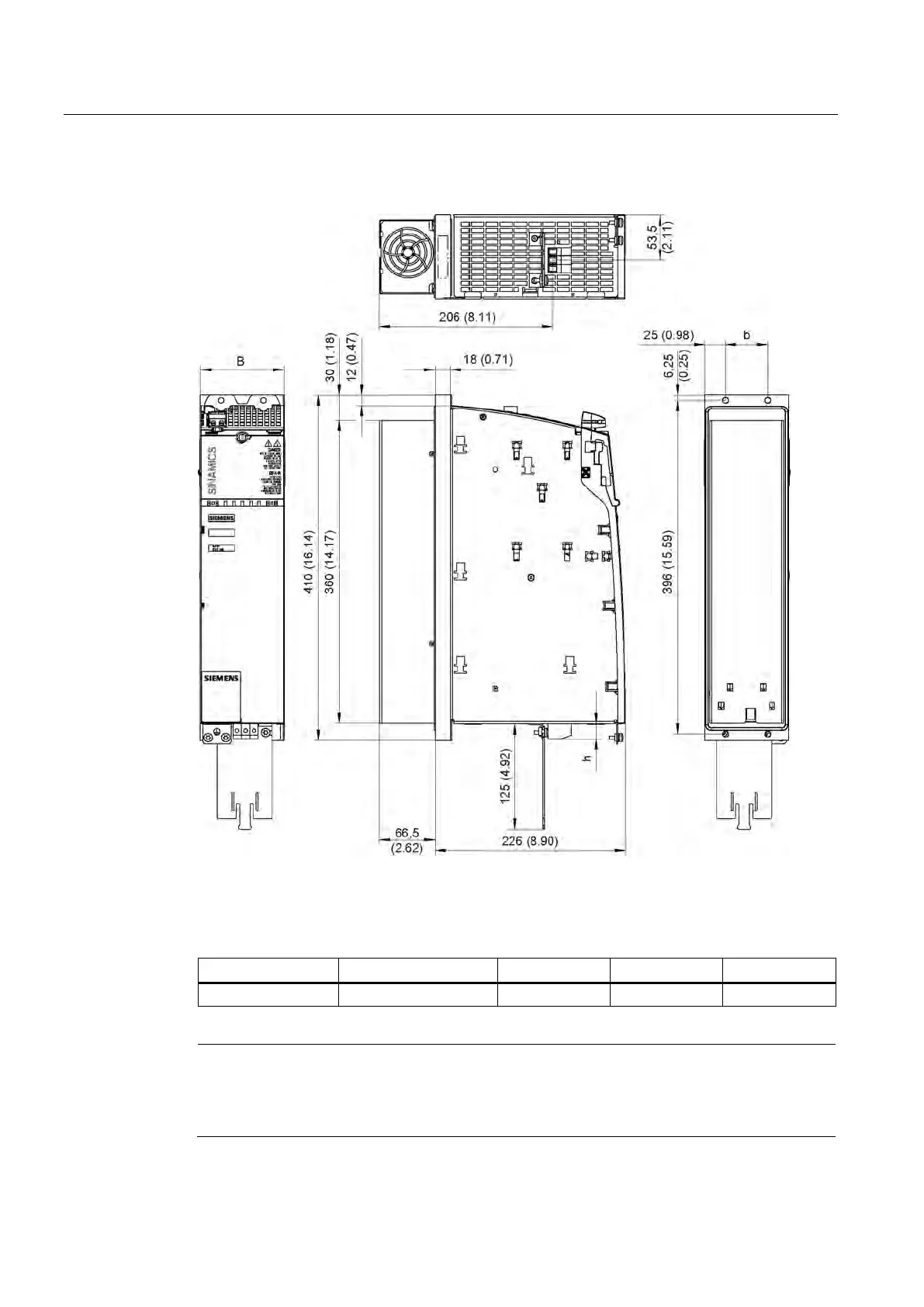

Figure 4-16 Dimension drawing of 16 kW Active Line Module with external air cooling, all dimensions
in mm and (inches)
Table 4- 19 Dimensions of 16 kW Active Line Module with external air cooling
Active Line Module
Order number
B [mm] (inches)
b [mm] (inches)
h [mm] (inches)
16 kW
6SL3131-7TE21-6AAx
100 (3.94)
50 (1.97)
18 (0.71)
Note
The shield connecting plate is supplied as standard with a 100 mm Line Module.
For more information, see Chapter
Shield connecting plates for power supply and motor
cables
(Page 617).
