Line Modules Booksize
4.3 Active Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
185

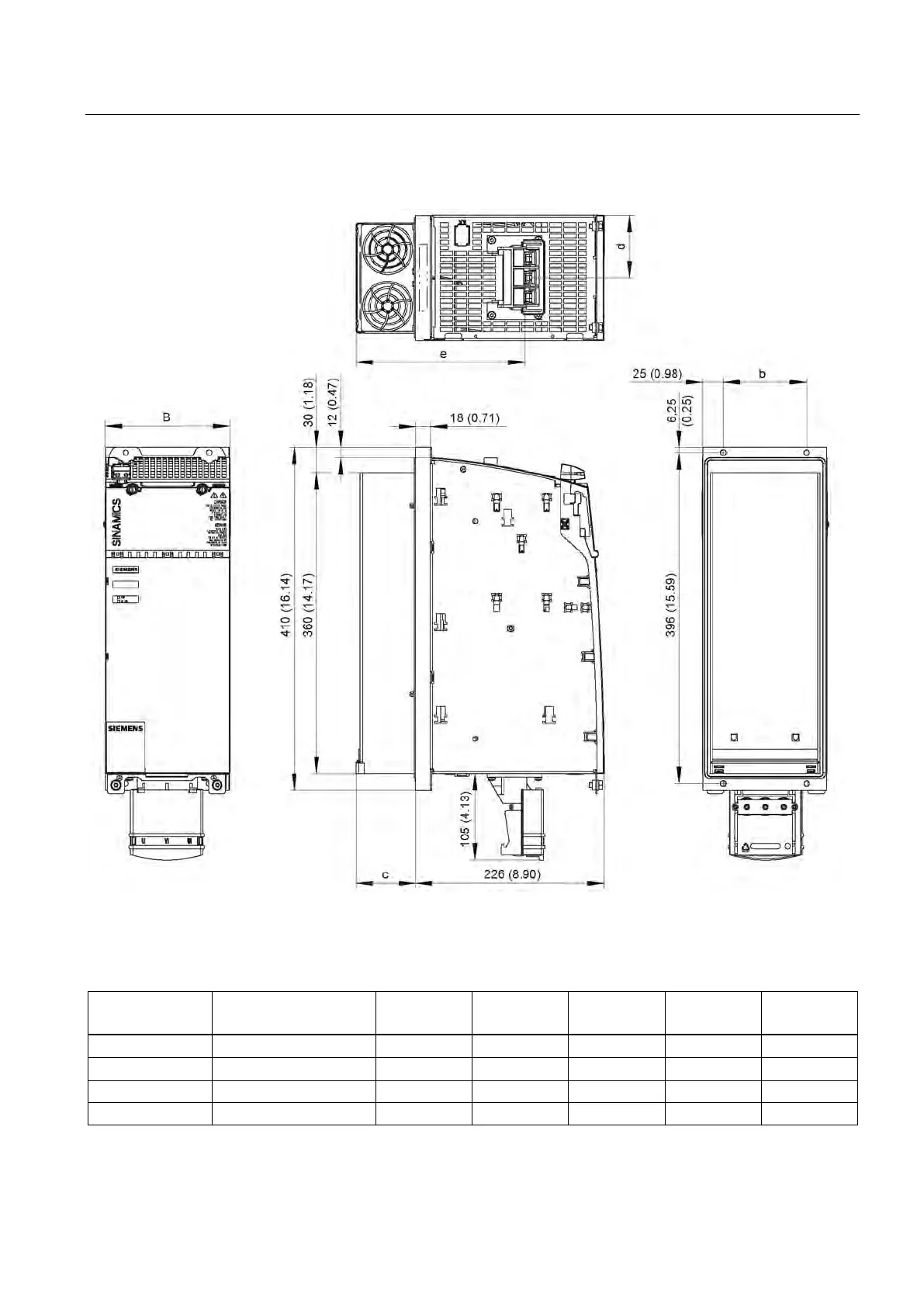

Figure 4-17 Dimension drawing of 36 kW, 55 kW, 80 kW, and 120 kW Active Line Modules with external air cooling
(example 36 kW), all dimensions in mm and (inches)
Table 4- 20 Dimensions of 36 kW, 55 kW, 80 kW, and 120 kW Active Line Modules with external air cooling
Active Line
Module
Order number
B [mm]
(inches)
b [mm]
(inches)
c [mm]
(inches)
d [mm]
(inches)
e [mm]
(inches)
36 kW
6SL3131-7TE23-6AAx
150 (5.91)
100 (3.94)
71 (2.80)
75 (2.95)
203 (7.99)
55 kW
6SL3131-7TE25-5AAx
200 (7.87)
150 (5.91)
92 (3.62)
100 (3.94)
224 (8.82)
80 kW
6SL3131-7TE28-0AAx
300 (11.81)
250 (9.84)
82 (3.23)
150 (5.91)
214 (8.43)
120 kW
6SL3131-7TE31-2AAx
300 (11.81)
250 (9.84)
82 (3.23)
150 (5.91)
214 (8.43)
