Line Modules Booksize
4.3 Active Line Modules with external air cooling
Booksize Power Units
186 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

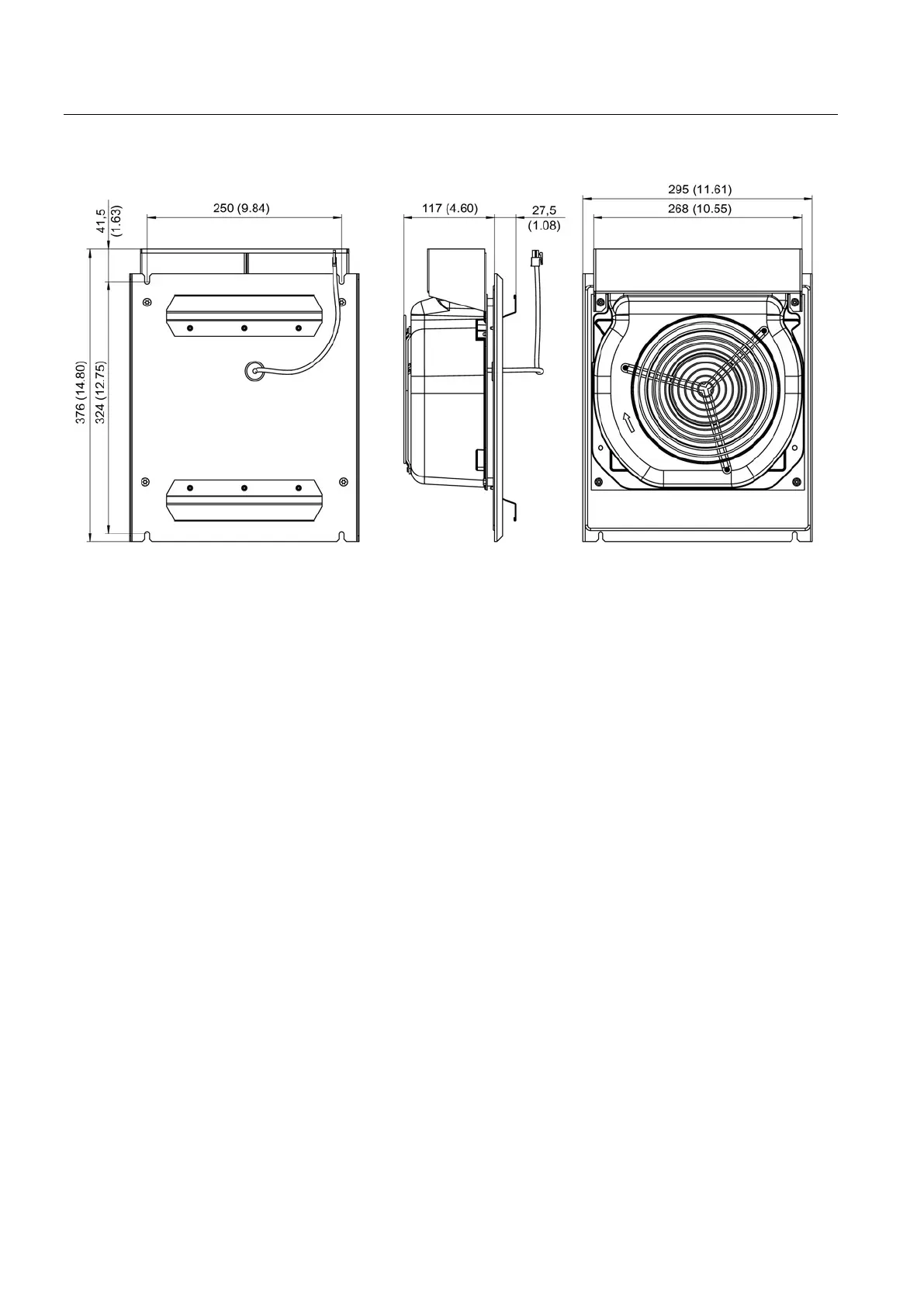

Figure 4-18 Dimension drawing of fan for 80 kW and 120 kW Active Line Modules with external air cooling, all dimensions
in mm and (inches)
