Siemens 6SL3120-2TE21-0AA3

Motor Modules Booksize Compact
7.3 Interface description
Booksize Power Units
494 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
7.3.2
X1/X2 motor connection

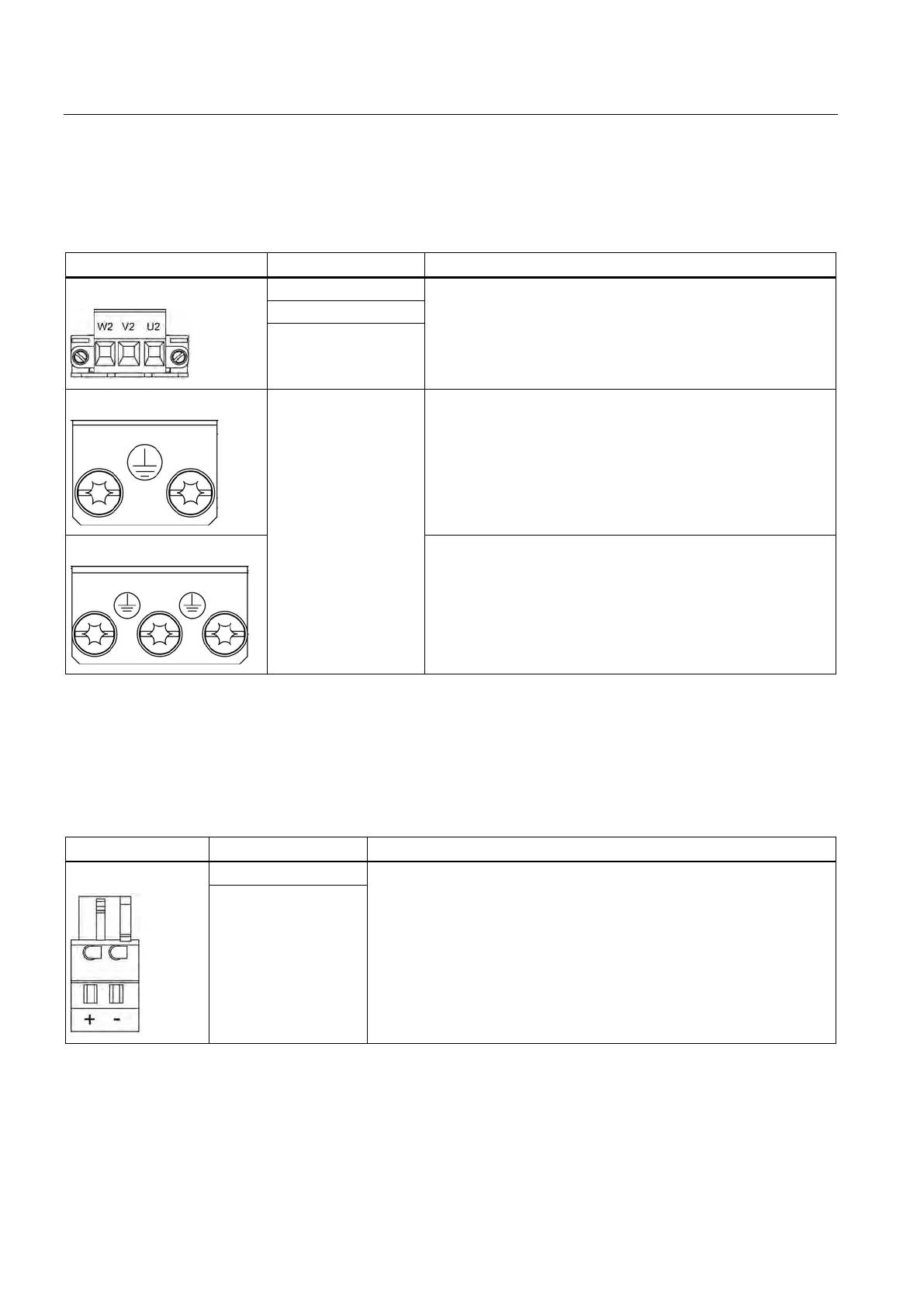

Table 7- 1 X1/X2 motor connection
Terminal
Technical data
U2
Type: Screw terminal 5 (Page 755)
Max. cross-section that can be connected: 6 mm
2
Tightening torque: 1.2 … 1.5 Nm
V2
W2
PE connection
Single Motor Modules 3 … 18 A
Threaded hole M5 / 3 Nm
1
Double Motor Modules 1.7 … 5 A
Threaded hole M5 / 3 Nm
1
1)
For ring cable lugs without insulation
7.3.3
X11/X12 motor brake connection
Table 7- 2 X11/X12 motor brake connection
Terminals
Technical data
+ (BR+)
Brake connector
1)
:
Voltage 24 V DC
Max. load current 2 A
Min. load current 0.1 A
Max. connectable cross-section 2.5 mm
2
Type: Spring-loaded terminal 2 (Page 754)
Manufacturer: Wago; order number: 721-102/026-000/56-000
The brake connector is part of the scope of delivery.
- (BR-)
1)
The circuit for protecting the brake against overvoltage is integrated in the Motor Module and does not need to be
installed externally. The max. load current is 2 A, the min. load current 0.1 A.
