Siemens 6SL3120-2TE21-0AA3

Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
67

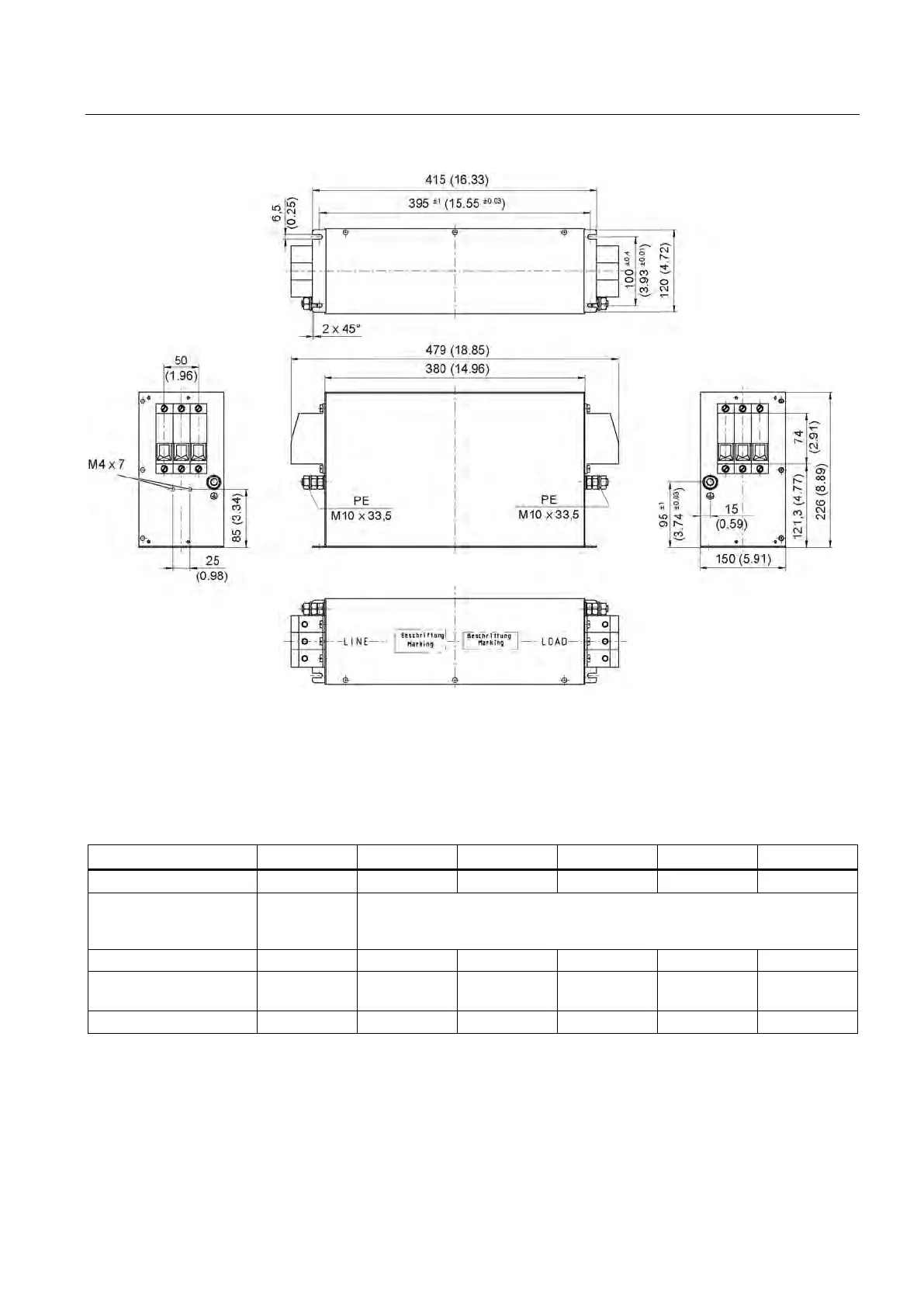

Figure 3-9 Dimension drawing of Basic Line Filter for Active Line Modules 80 kW and 120 kW, all dimensions in mm and
(inches)
3.7.3.4
Technical data
Table 3- 6 Technical data of the Basic Line Filter for Active Line Modules with Active Interface Module
6SL3000-
0BE21-6DAx
0BE23-6DA1
0BE25-5DAx
0BE28-0DAx
0BE31-2DAx
Rated power
kW
16
36
55
80
120
Supply voltage:
Line voltage
Line frequency
V
AC
Hz
3 AC 380 -10 % (-15 % < 1 min) … 3 AC 480 +10 %
47 … 63 Hz
Rated current
A
AC
36
74
105
132
192
Power loss (see power
loss tables (Page 781))
W 16 26 43 56 73
Weight
kg
5
7,5
11,5
17,5
18,5
