Line Modules Booksize
4.6 Basic Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
233
4.6.2.2
X1 line connection

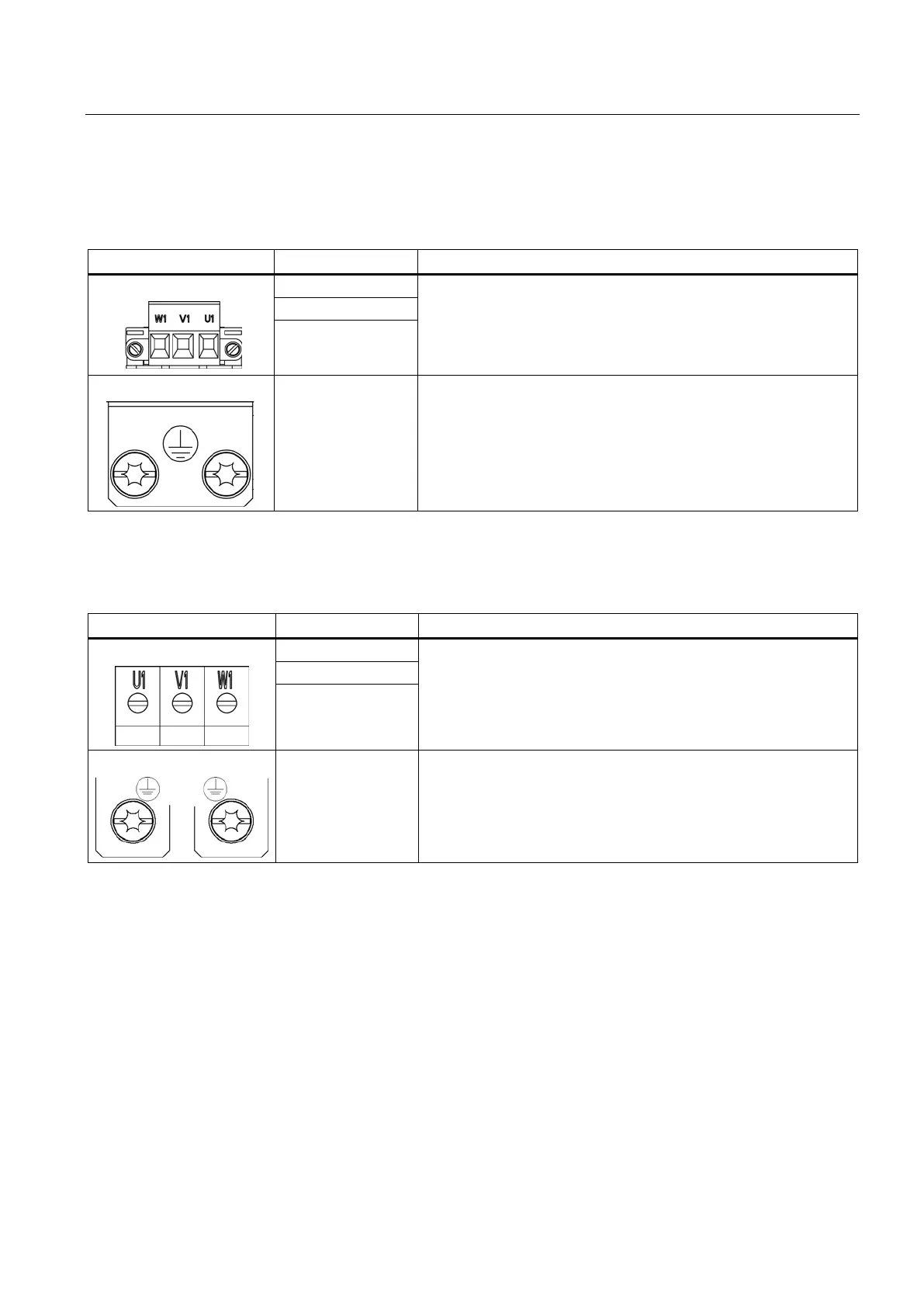

Table 4- 40 X1: Line supply connection for Basic Line Modules 20 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Max. connectable cross-section: 16 mm
2
Type: Screw terminal 7 (Page 755)
Tightening torque: 1.5 … 1.7 Nm
V1
W1
PE connection Threaded hole M5 / 3 Nm
1
1)
For ring cable lugs without insulation
Table 4- 41 X1: Line supply connection for Basic Line Modules 40 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Max. connectable cross-section, 50 mm², end sleeves
Tightening torque, min. 6 Nm
V1
W1
PE connection Threaded hole M6 / 6 Nm
1)
1)
For ring cable lugs without insulation
