Siemens 6SL3120-2TE21-0AA3

Line Modules Booksize
4.10 Smart Line Modules with cold plate
Booksize Power Units
334 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
4.10.3.4
X22 digital inputs

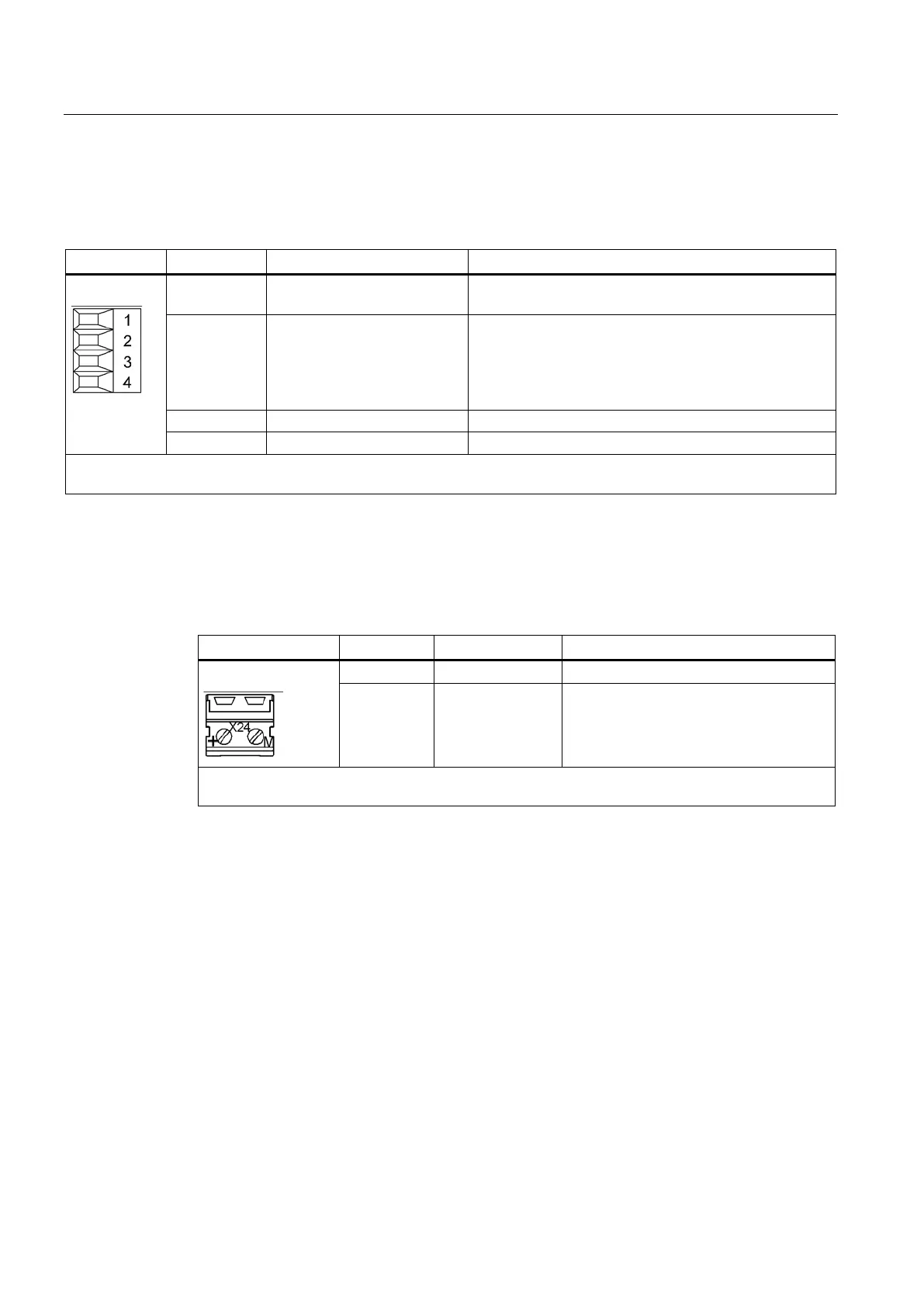

Table 4- 88 X22 digital inputs for Smart Line Modules 5 kW and 10 kW
Terminal
Designation
1)
Technical data
1 24 V power supply Electronics power supply for controlling digital inputs
X22.2 and 3
2 DI: Disable Regeneration Deactivate regenerative feedback (high active)
No power is supplied back to the network from the DC
link. The regenerative energy of the motors may have to
be reduced using a combination of the Braking Module
and braking resistor.
3
DI: Reset
Reset faults (negative edge)
4
Ground
Electronics ground
Type: Screw terminal 1 (Page 755)
Max. cross-section that can be connected: 1.5 mm
2
1)
DI: Digital input
4.10.3.5
X24 24 V terminal adapter
Table 4- 89 X24: 24 V terminal adapter
Terminal
Designation
Technical data
+
24 V power supply
24 V DC supply voltage
M Ground Electronics ground
Type: Screw terminal 5 (Page 755)
Max. cross-section that can be connected: 6 mm
2
The 24 V terminal adapter is included in the scope of supply.
